Diamond Products CC800M - Manual (Page 38)

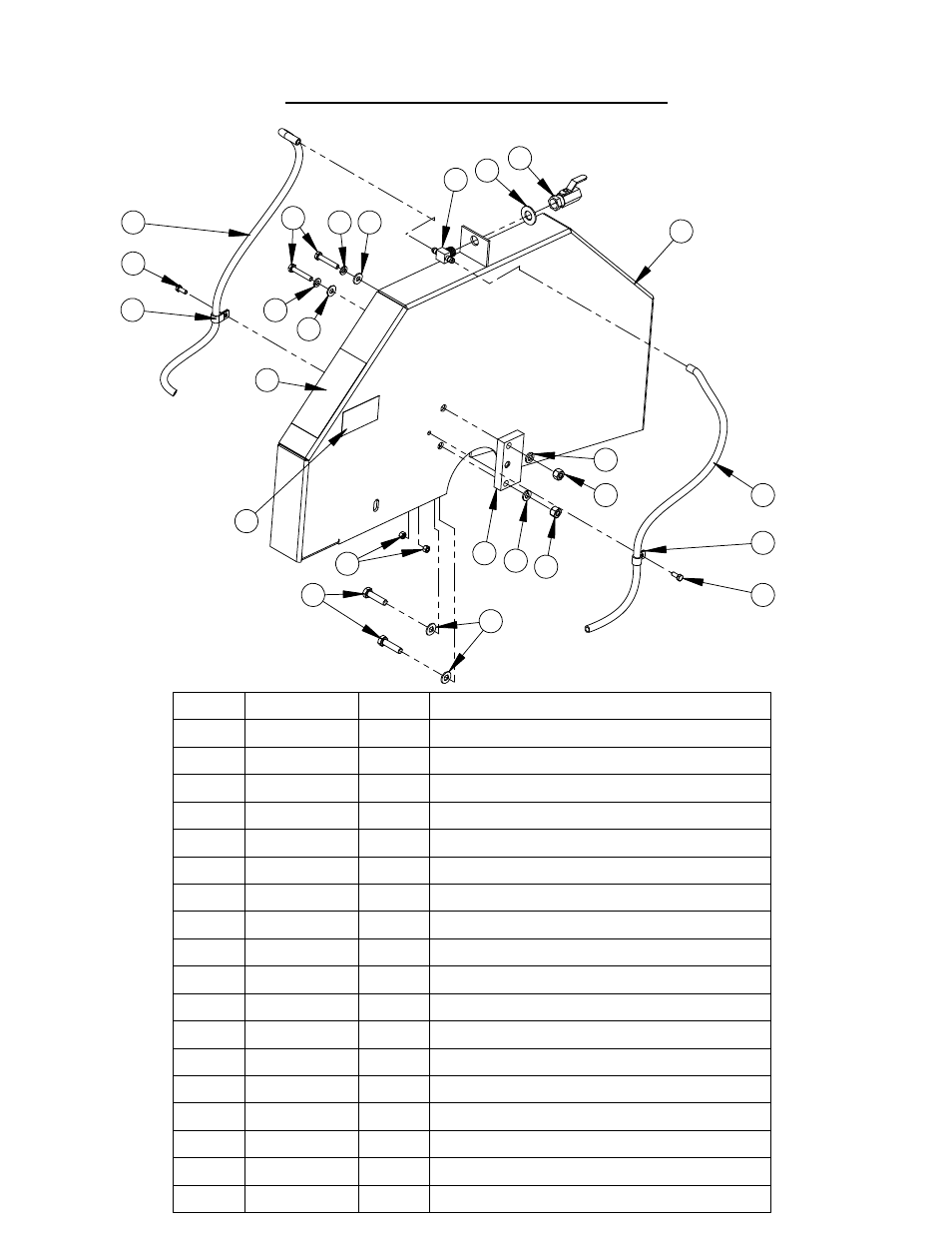

24" Blade Guard Assembly #6030133
ITEM PART NO. QTY. DESCRIPTION
1 6030123 1 24" BLADE GUARD
2 3200233 1 Petcock, 1/4" Female Pipe
3 2900058 1 1/2 FLAT WASHER
4 3200232 1 Tee, 1/4" M. Pipe to 1/4" Hose Barb
5 2900009 2 Flat Washer, 1/4" SAE
6 2900024 2 Lock Washer, 1/4" Split
7 2900312 2 Cap Screw, Hex Hd., M6-1.0 x 35mm
8 6030163 2 Water Hose 24" Guard
9 2900339 2 Cap Screw, Hex Hd., M5-0.8 x 12mm
10 3200039 2 Clamp, 3/8"
11 1800001 1 Warning Label
12 1800456 2 Core Cut Blade Guard Label
13 2900301 2 Lock Nut, M5-0.8 Nylon Insert
14 2900217 2 Cap Screw, Hex Hd., 5/16-18 x 1-1/4"
15 2900022 2 Flat Washer, 5/16" SAE
16 6030356 1 Mounting Plate
17 2900031 2 Lock Washer, 5/16" Split
18 2900039 2 Lock Nut, 5/16-18 Nylon
