Diamond Products CC800M - Manual (Page 17)

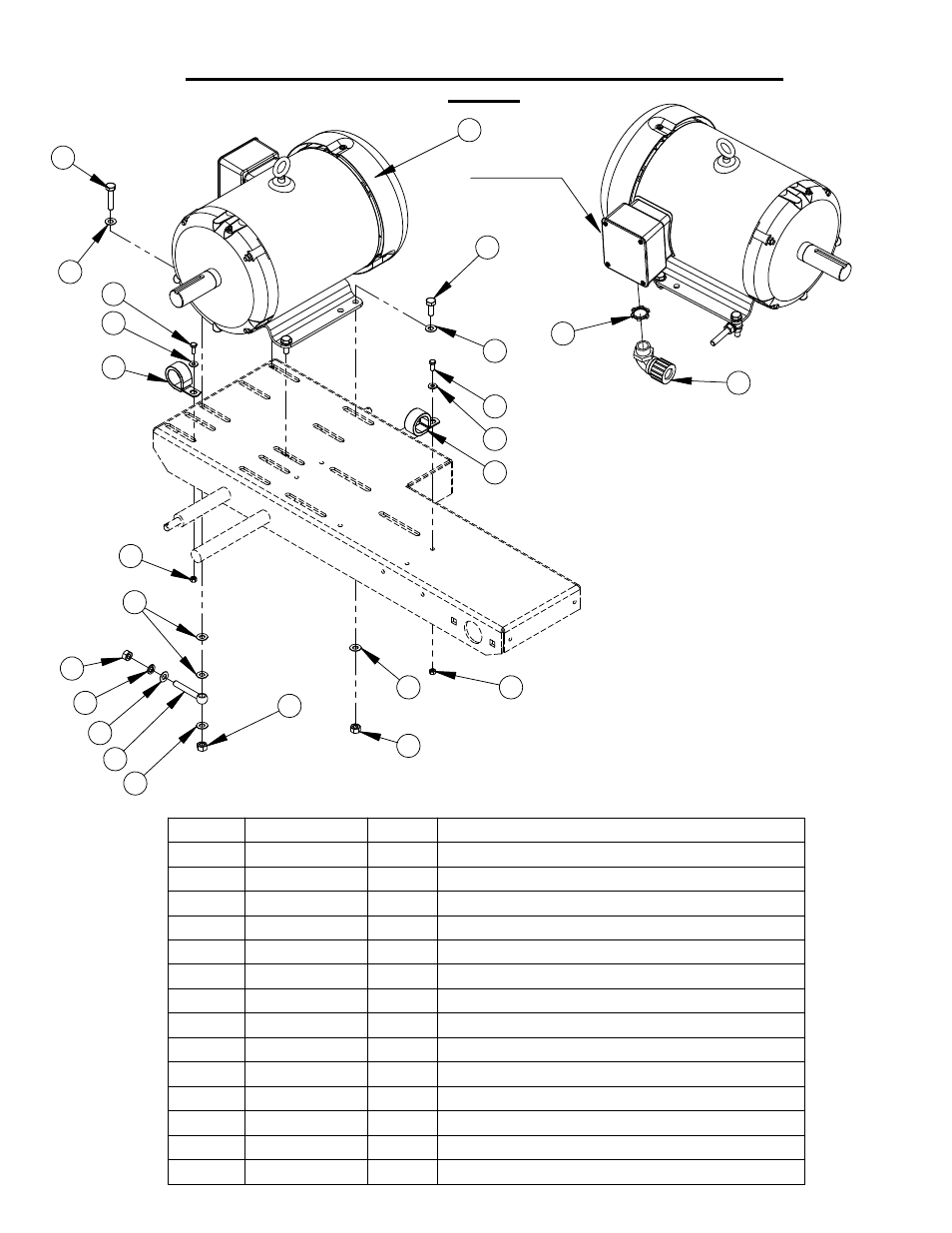

7.5HP - 3 Phase Electric Motor Mount Assembly #6030332
(380 V)
ITEM PART NO. QTY. DESCRIPTION
1 2600048 1 Electric Baldor Motor 7.5HP 3PH 380V
2 2900317 1 Cap Screw, Hex Hd., M10 x 45mm
3 2900014 11 3/8" SAE Flat Washer
4 2900341 2 Cap Screw, Hex Hd., M6-1.0 x 16mm
5 2900009 2 Flat Washer, 1/4" SAE
6 2504923 2 Hose Clamp, 5/8" x 3/4" Wide
7 2900302 2 Lock Nut, M6-1.0 Nylon Insert
8 2900325 1 Hex Nut, M10-1.5
9 2900321 1 Lock Washer, M10 Split
10 2900595 1 Eyebolt, M10 x 70mm
11 2900304 4 Lock Nut, M10-1.5 Nylon Insert
12 2802052 1 Cord Connector, 3/4" Thd., .63-75" Cord, 90 Deg.
13 2800050 1 Lock Nut, 3/4" Sealing
14 2900333 3 Cap Screw, Hex Hd., M10-1.5 x 25mm
4
5
6
7
1
2
3
14
3
3
11
8
9
3
10
3
11
6
5
4
3
7
Wire from
12
13
Box
located inside
Sealing Lock Nut
Starter Box
Outlet for
Water Pump
17
