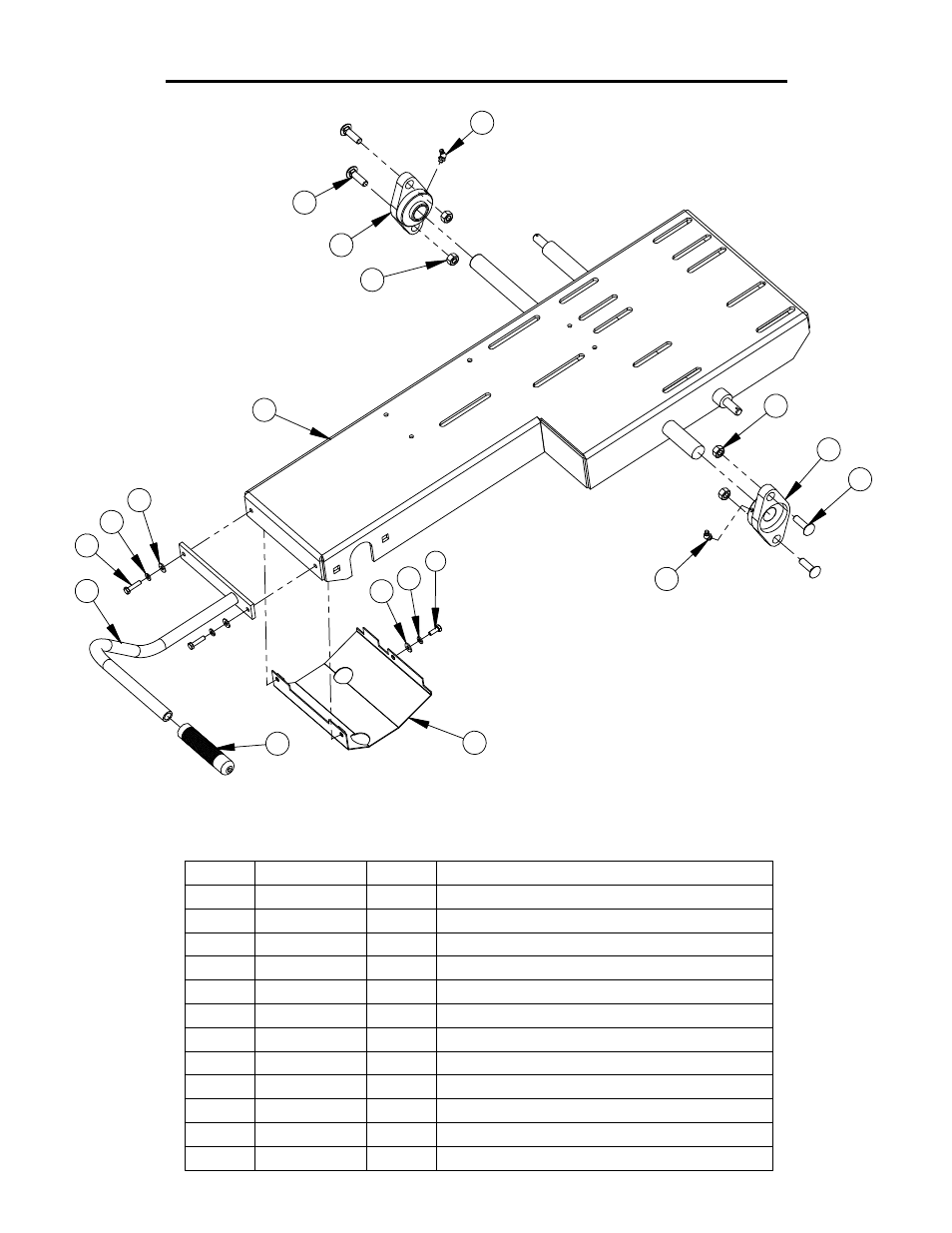

CC800M Upper Frame - Head Weldment Assembly #6030175
ITEM PART NO. QTY. DESCRIPTION
1 6030223 1 Cutting Head Weldment, CC800 Block Saw
2 2900311 2 Cap Screw, Hex Hd., M6-1.0 x 25mm
3 6030156 1 Handle Weldment
4 2500663 1 Grip
5 6030180 1 Blade Shaft Cover Plate
6 2900341 1 Cap Screw, Hex Hd., M6-1.0 x 16mm
7 2900024 3 Lock Washer, 1/4" Split
8 2900009 3 Flat Washer, 1/4" SAE
9 2900304 4 Lock Nut, M10-1.5 Nylon Insert
10 2500012 2 Bearing-1" Flange
11 2900372 4 Carriage Bolt M10 x 35
12 2900184 2 Grease Fitting, 1/4" NPT x 45 degree
11
11
9
12
1
10
10
7
8
6
5
2
3
4
7
8
9
12
