ITEM PART
NO.
QTY.
DESCRIPTION
1
6040538
1
Handle Weldment
2
6041062
2
Throttle Spacer
3
2900597
2
Cap Screw, Hex Hd., M5 x 50mm
4
2900301
2
Lock Nut, M5 Nylon
5
2900016
6
Flat Washer, #10 USS
6
2900053
2
Rivet, 3/32" Dia.
7
2900257
2
Lock Pin, T Handle, 3/8"
8
3200022
1
Fitting, 1/2" F. Pipe to 3/4" F. Garden
9
3200008
2
Close Nipple, 1/2" NPT
10
3200027
1
Water Valve
11
3200155
1
Fitting, 1/2" M. Pipe to 3/4" M. Garden
12
6048918
1
Hose Assy., 1/2 x 18-1/2", Water
13
3201876
1
3/4" M. Garden to 3/4" F. Garden (QD type)
14
6040521
1
Foam grip
4
8
2

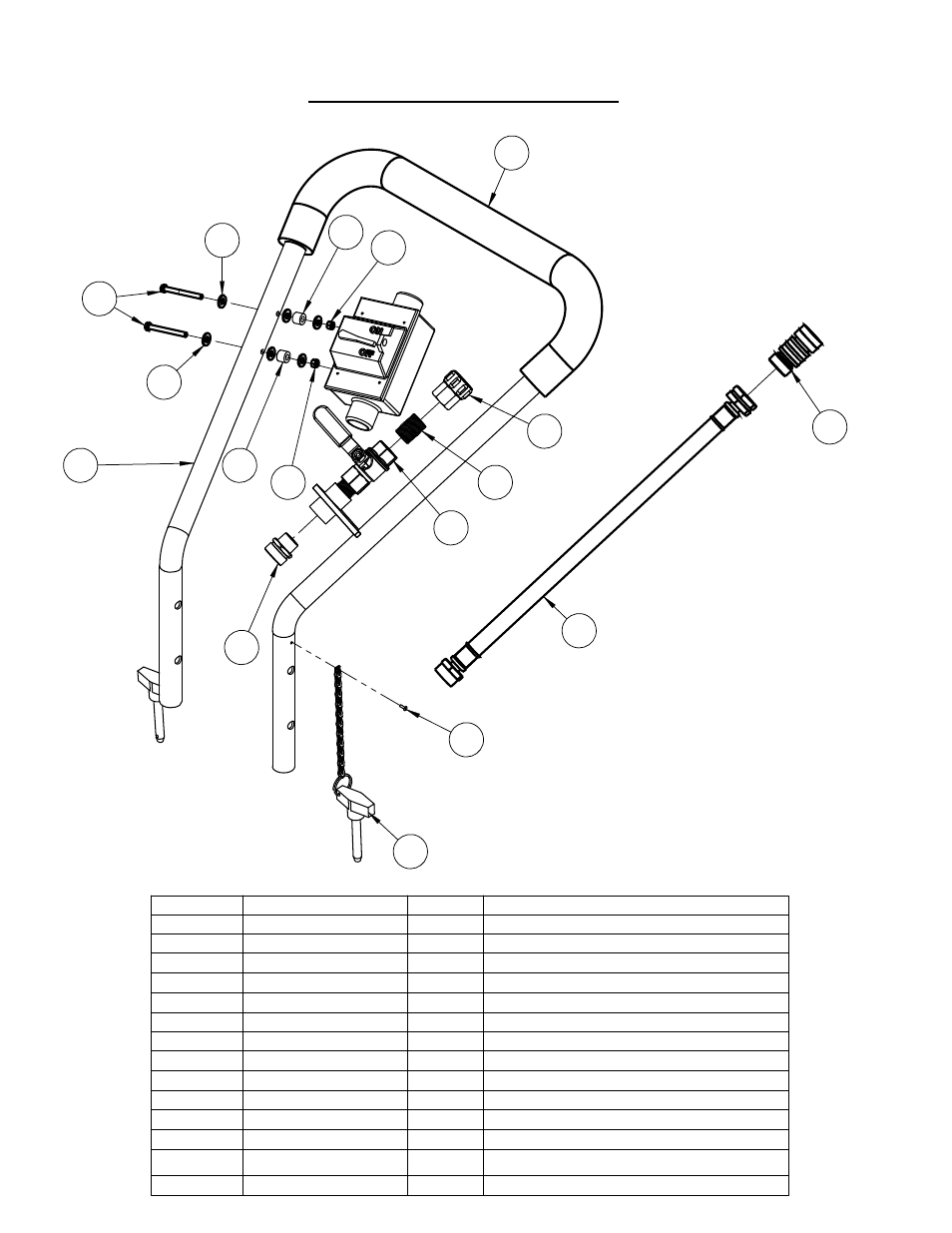

HANDLE ASSEMBLY: 6040343
12
9
10
7
14
6
5
2
4
11
1
13
3
5
9
