14/26/36 BLADE DRIVE #6012227A
ITEM PART NO. QTY. DESCRIPTION
1 2503755 1 Sheave, 6.5" x 8 Groove QD Style
2 2500932 1 QD Bushing, SK x 1-7/8" w/Fasteners
3 2503185 6 V-Belt, 3VX464
4 6045158 1 Sheave, 4"-3V-6 Groove 2012
5 2503811 1 Taper Bushing, 1-1/2" w/Setscrews
6 2503998 1 V-Belt, 3VX630
7 6018187 1 Key, 1/2" Square x 2-1/2" Long
20/30/42 BLADE DRIVE #6012227B
ITEM PART NO. QTY. DESCRIPTION
1 2500172 1 Sheave, 5.6" x 8 Groove QD Style
2 2500932 1 QD Bushing, SK x 1-7/8" w/Fasteners
3 2500794 6 V-Belt, 3VX450
4 6045158 1 Sheave, 4"-3V-6 Groove 2012
5 2503811 1 Taper Bushing, 1-1/2" w/Setscrews
6 2503998 1 V-Belt, 3VX630
7 6018187 1 Key, 1/2" Square x 2-1/2" Long

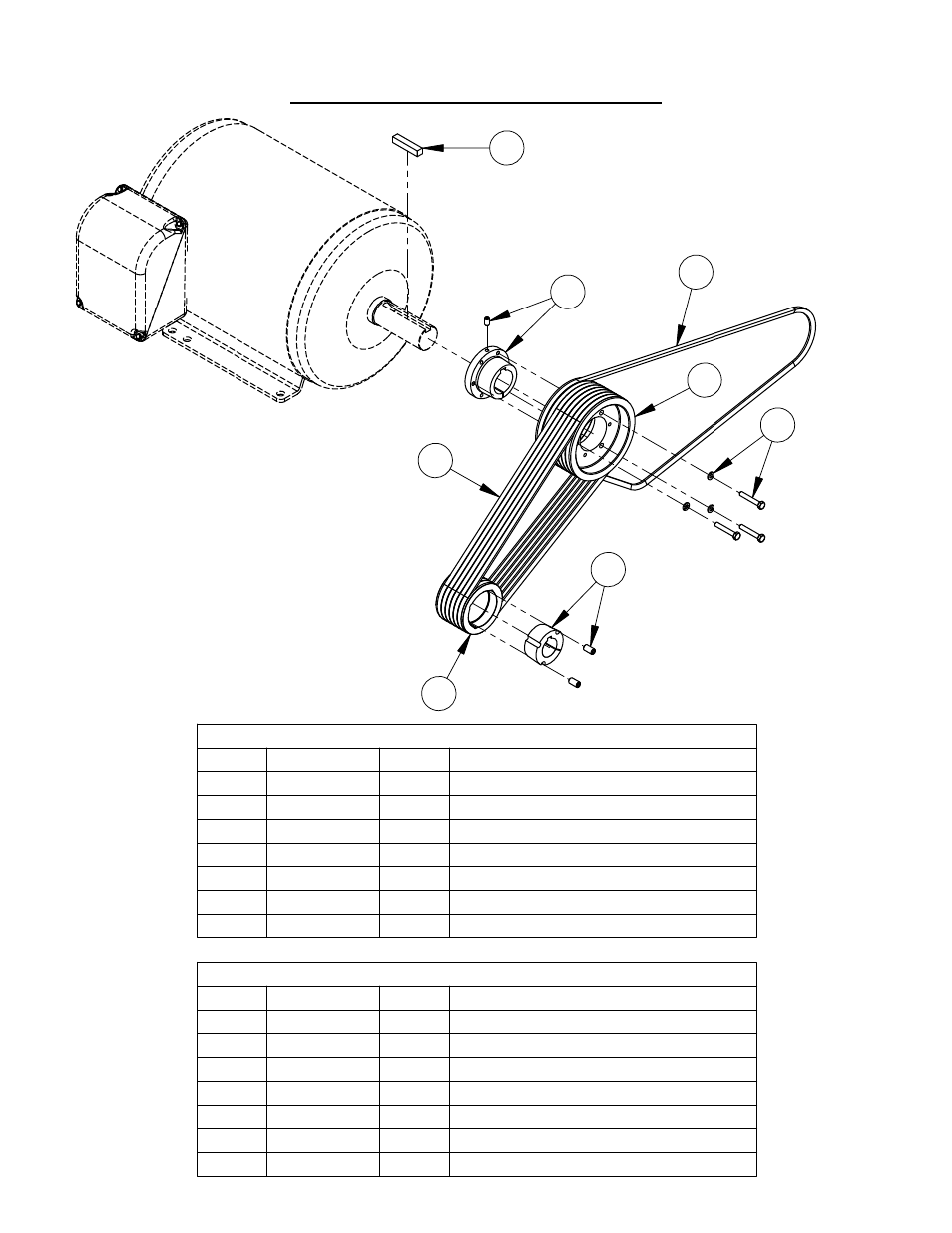

30hp Belt Drive Assembly #6012227
