2900412

FOR RH THREADED

BOLTS ONLY

2901569

FOR LH THREADED

BOLTS ONLY

1.2"

1"

* NOTE

ITEM

PART NO.

6012224A

QTY.

6012224B

QTY.

DESCRIPTION

1

6018400

1

-

Trans Asm: 3-Spd 29"

2

6018410

-

1

Trans Asm: 3-Spd 29" HD

3

6010980

2

2

Clamp Block

4

6010981

2

2

Saddle Clamp

5

2900146

5

5

Cap Screw, Hex Hd., 5/8-11 x 4"

6

2900002

4

4

Flat Washer, 5/8" SAE

7

2900753

4

4

Jam Lock Nut, 5/8-11

8

6010038

2

2

Inner Flange 6"

9

6010039

1

1

Outer Flange 6" with Pin

10

6010040

2

2

Key, 1/4" Sq. x 15/16"

11

2900418

2

2

Set Screw, Soc. Hd., 5/16-18 x 5/8"

12

2900130

1

1

Cap Screw, Hex Hd., 5/8-11 x 4" LH

13

2900412

1

1

Wedge Lock Washer Pair, 5/8"

14

2901569

1

1

Wedge Lock Washer Pair, 5/8" LH

* See Note

* See Note

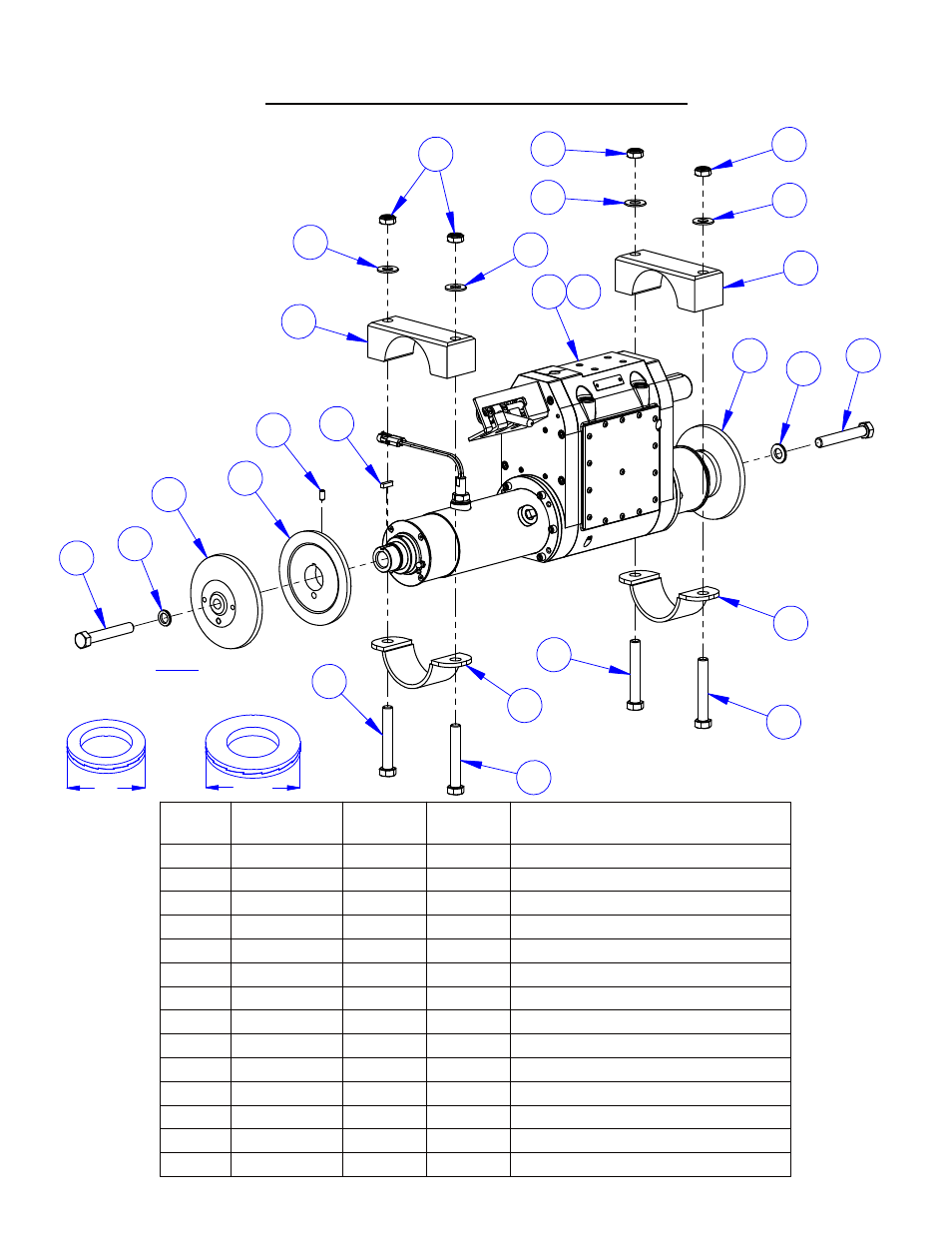

3 Speed Blade Shaft Assembly #6012224

#6012224A for CC3730E / #6012224B for CC3740E

7

6

6

3

8

5

4

4

8

9

12

10

11

3

6

6

13

*

14

*

5

5

5

5

7

7

1

2

32
