Diamond Products CC3700E-3 Speed - Manual (Page 26)

ITEM PART NO. QTY. DESCRIPTION
1 2600068 1 Eaton Hydrostatic Transmission
2 3200046 2 Fitting, 3/8" F. JIC to 3/8" Push Lock
3 6010060 1 Oil Recirculation Hose, 3/8" I.D. x 9"
4 2900143 1 Woodruff Key #61, 3/16" x 5/8"
5 2900063 1 Woodruff Key #405, 1/8" x 5/8"
6 2500150 1 Sprocket, #40 x 11 Tooth w/Setscrews
7 2900083 1 Fender Washer, 1/4" x 1-1/4"
8 2900024 1 Lock Washer, 1/4" Split
9 2900082 1 Cap Screw, Hex Hd., 1/4-20 x 1/2"
10 6010064 1 Shift Lever
11 2900058 1 Flat Washer, 1/2" SAE
12 2900026 1 Lock Nut, 1/2-13 Nylon
13 2503994 1 Sheave, 5"
14 2503845 1 QD Bushing, SH x 3/4" w/Fasteners
15 2900567 1 Flat Washer, 5/16" USS
16 2900031 1 Lock Washer, 5/16" Split
17 2900019 1 Cap Screw, Hex Hd., 5/16-18 x 3/4"
18 2900035 4 Cap Screw, Hex Hd., 3/8-16 x 3"
19 2900014 4 Flat Washer, 3/8" SAE
20 2900018 4 Lock Nut, 3/8-16 Nylon
21 3200062 1 Hose Clamp #4
22 6010059 1 Clear Hose, 3/8" I.D. x 19"
19
17
22
13
16
5
21
6
19
3
2
8
20
20
18
1
10
11
12
4
18
7
9
15
14

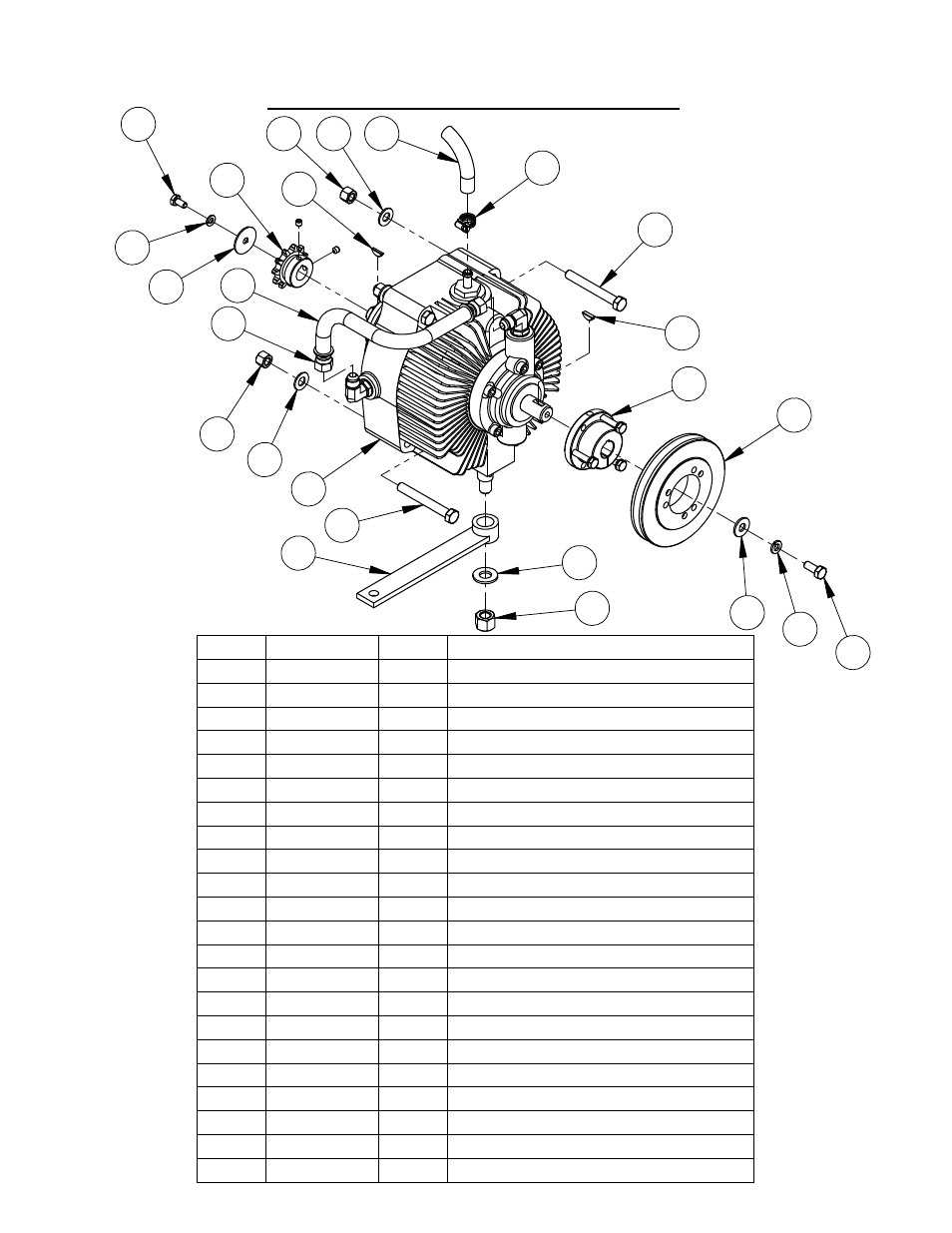

Eaton Transmission Assembly #6012223
