10
ENTER MENU SCAN
G14
13
ENTER MENU SCAN
G14
10
11
12
ENTER MENU SCAN
G14
1
2 3
4
5
6
7
8 9

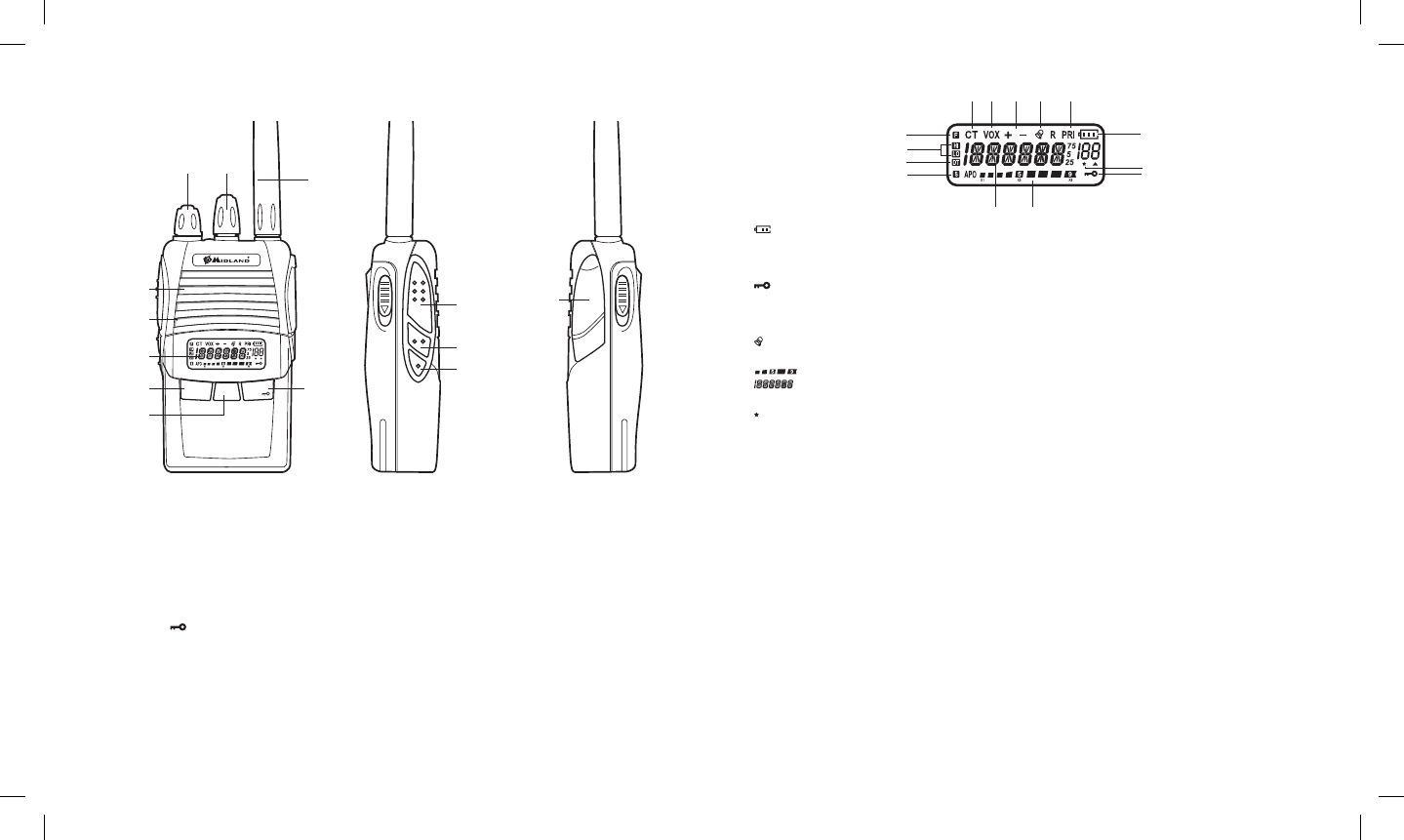

MAIN CONTROLS
Antenna 1.
Encoder 2. : rotate clockwise or counter-clockwise to choose among the several settings.
Power/volume knob- turn 3. clockwise to power on and increase the volume level. Turn counter-clockwise to
decrease the volume level and power off.
Speaker- G14 4. has a built-in speaker.
Built-in microphone 5. - Here is where sound is picked up by the microphone.
Display LCD 6.
MENU 7. : press this button to enter the radio menu
SCAN/ 8. : press this button to enable the SCAN function or to exit the current setting. Keep pressed this
button for about 5 seconds to activate the Lock function.
ENTER 9. : press this button to confirm the setting.
PTT: 10. push this button to transmit, release it to receive.
MONITOR: 11. in reception mode, keep pressed this button to monitor the channel/frequency in use.
CALL: 12. to send a call on the selected channel (received only by another G14):
CALL + MONITOR: • press these two buttons to activate the Emergency function.
CALL + PTT: • press these two buttons to activate the 1750 Hz sound note.
EXTERNAL SPEAKER/MIC JACK 13. - allows the connection with external devices such as headsets, micro-
phones...
LCD display
1. : indicates the battery level
+/-: 2. indicates the TX/RX “OFFSET” shift direction
HI/LO: 3. indicates the output power level (HI = high / LO = low)
S: 4. appears while the radio is scanning the channels
5. : keypad lock
DT: 6. DCS turned on
CT: 7. CTCSS turned on
VOX: 8. VOX function on
9. : appears when you send a CALL
PRI: 10. Priority Scan activated
11. : received signal strength and TX power.
12. : frequency in use
F: 13. MENU functions
14. : appears when the Scan finds a signal. (open Squelch)
OPERATIONS
Power on/off and volume
Rotate the power/volume knob clockwise to turn the radio on and to increase the volume level. Rotate the control
counter-clockwise to reduce the volume level and to turn the radio off.
During Power on, the LCD display will show all icons for 1 second and the LCD display will indicate the last channel/
frequency selected.
Transmission
To communicate, all radios in your group must be set to the same band (PMR) and to the same channel.
Hold down briefly the MON button to make sure that the frequency is not busy and then press the PTT button.
For a maximum clarity, hold the device at a distance of about 4/10 cm.
Release the PTT key to receive.
Only one user at a time can talk during radio communications. Therefore, it is important not to transmit when you
are receiving a communication and use the transmission mode sparingly to allow other users to use the feature.
Transmission consumes a significant amount of energy and should therefore be used sparingly to prolong the
battery life.
Alternatively, it is also possible to select a low transmission power.
If you are unable to contact a station that you have no problems in receiving, the station may be using CTCSS
tones or DCS codes
ENTER MENU SCAN
G14
A
B
C
D E
F
G H I J
K L
M
N
