De u tsch, Geräte-rückseite, Mikrofon – MIDLAND 220 User Manual
Page 20
20
DE
u
TSCH

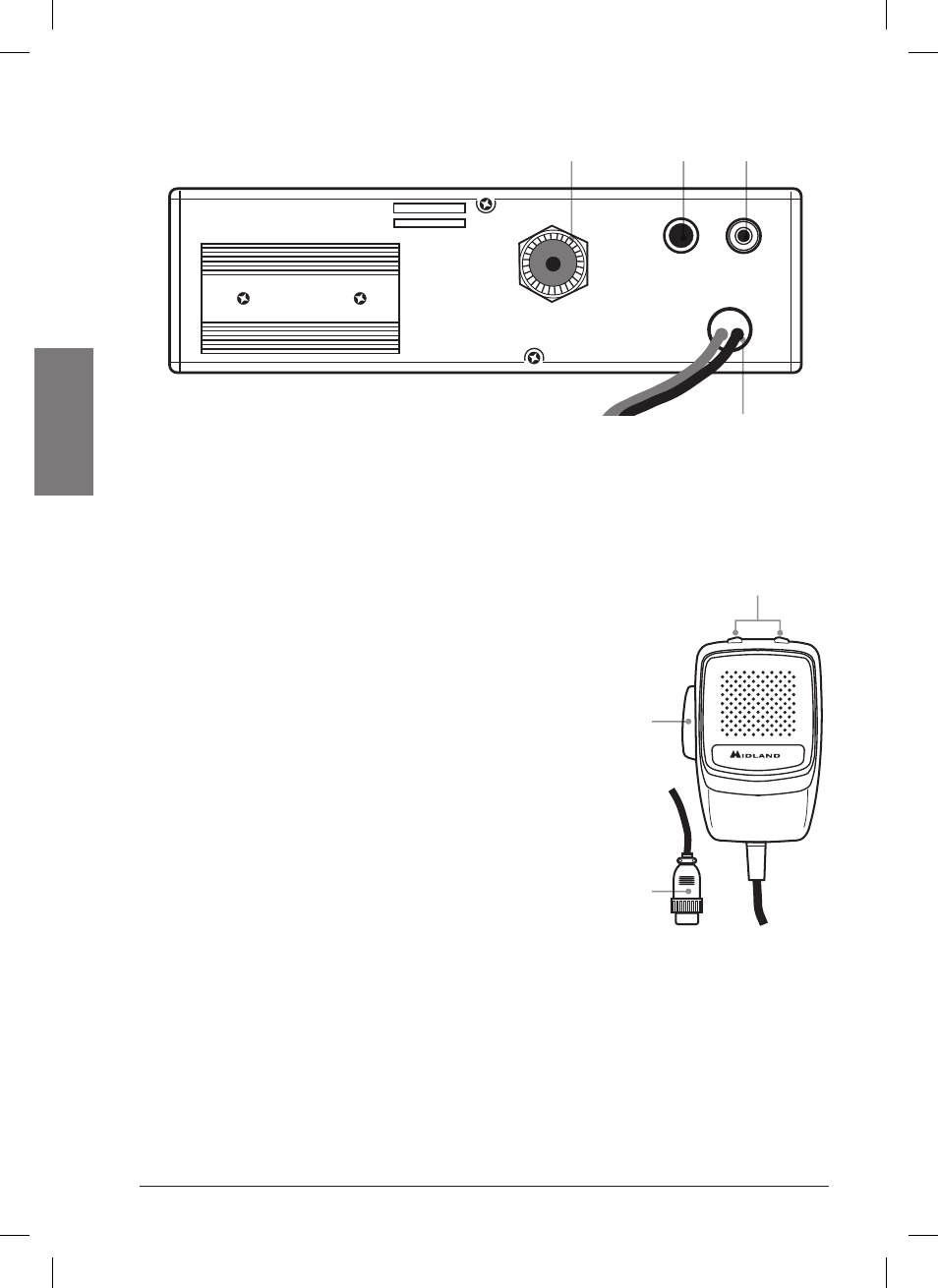

GERÄTE-RÜCKSEITE
14. Antennenbuchse (SO239)
15. ”EXT” : Buchse für externen Lautsprecher (der interne Lautsprecher schaltet dabei ab).
16. S.Meter Buchse: zum Anschluß eines externen Zusatz-S-Meters
17. Power 12.6V DC: Anschluß für Stromkabel an 12 V Bordnetze (10.8 bis 15.6 Volt DC)
MIKROfON
1. PTT: Sendetaste
2. uP/DOWN Tasten: manuelle Kanalwahl.
3. 6 pin Mikrofonstecker
EXT-SP
S-METER
ANT
+RED
-BLK
14
15
16
17
EXT-SP
S-METER
ANT
+RED
-BLK
2
1
3
