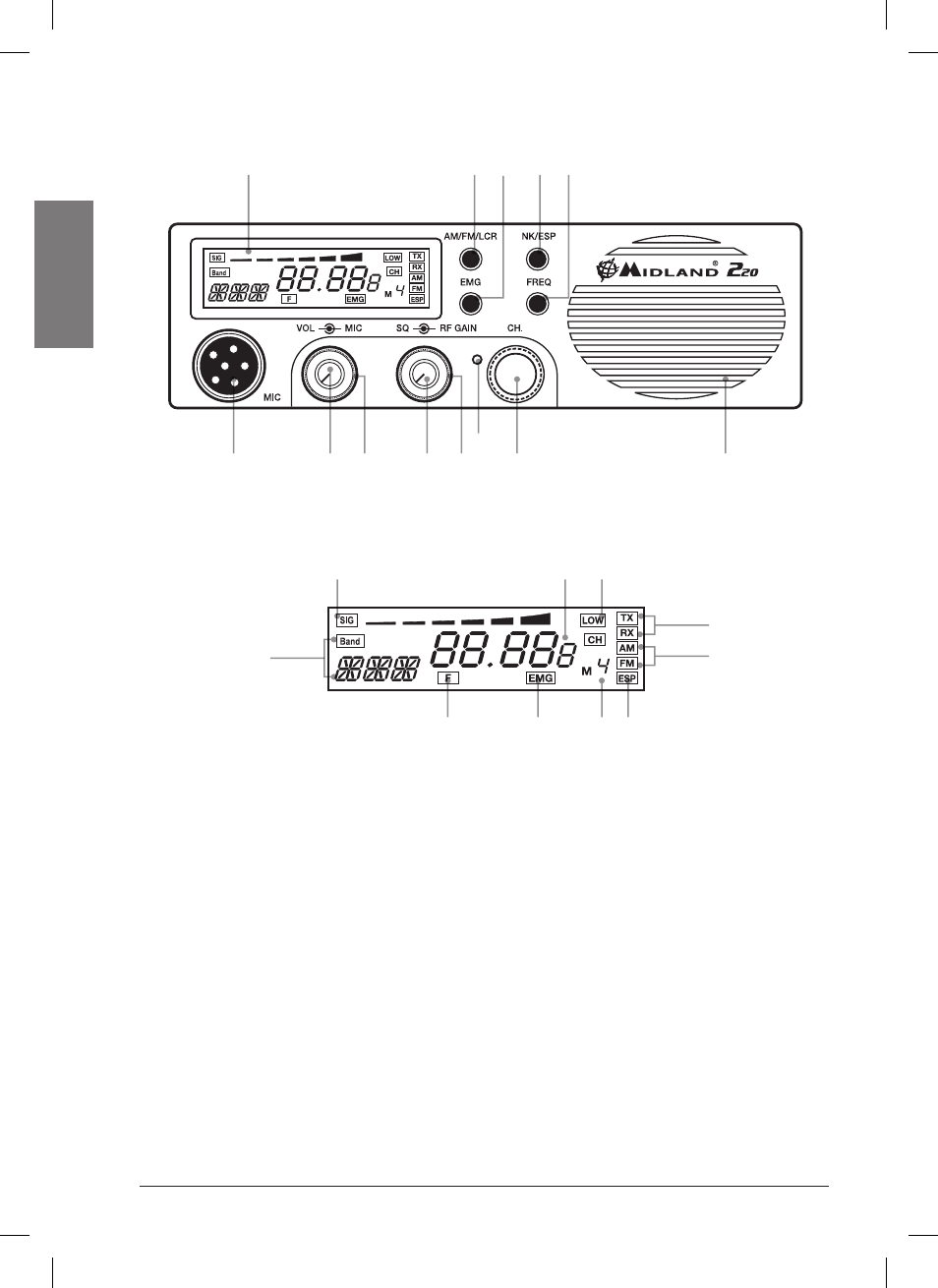

fuNCTIONS AND LOCATION Of THE CONTROLS
1. Channel selector: it permits the manual channel selection.
2. Multifunction back-lighted display. It shows:
A) Selected channel (from 1 up 40) or operative frequency
B) fREQ button activated
C) ESP: reducing noise device activated
D) EMG: indicates channel being used or when the emergency channels are activated
E) M1 – M4: memory channel indicator
F) Indicates the frequency band selected
G) Appears when the radio transmits in low power (this condition happens only in some
frequency bands – see the chart at the end of the manual)
H) RX/TX: reception (RX) / transmission (TX) indicator.
I) AM/FM mode.
J) Received signal strength and transmitted signal power.
3. Button for changing colour: by pushing a pointed object into the hole, you can change the
backlight colour of the display. You can choose amongst the following colours: white, yellow,
violet, red, light blue, green, blue or no colour.
4. “AM/fM”(LCR) button: To select AM or FM mode. If you select a frequency band operating in
FM mode only, this button enables the LCR function (Last Channel Recall).
5. “Squelch” Control: For the maximum receiver sensitivity, the control must be regulated exactly
where the receiver background noise disappears.
