Morris Quickie Line Adapters User Manual
Morris quickie line adapters

Morris Quickie Line Adapters
2240 W. 15th St., Erie, PA 16505
Phone: 814-459-1741
For Prices and Delivery
Call Toll Free: 1-800-426-1579
Toll-Free Fax: 1-800-545-1399
E-mail: [email protected]
internet: www.morriscoupling.com

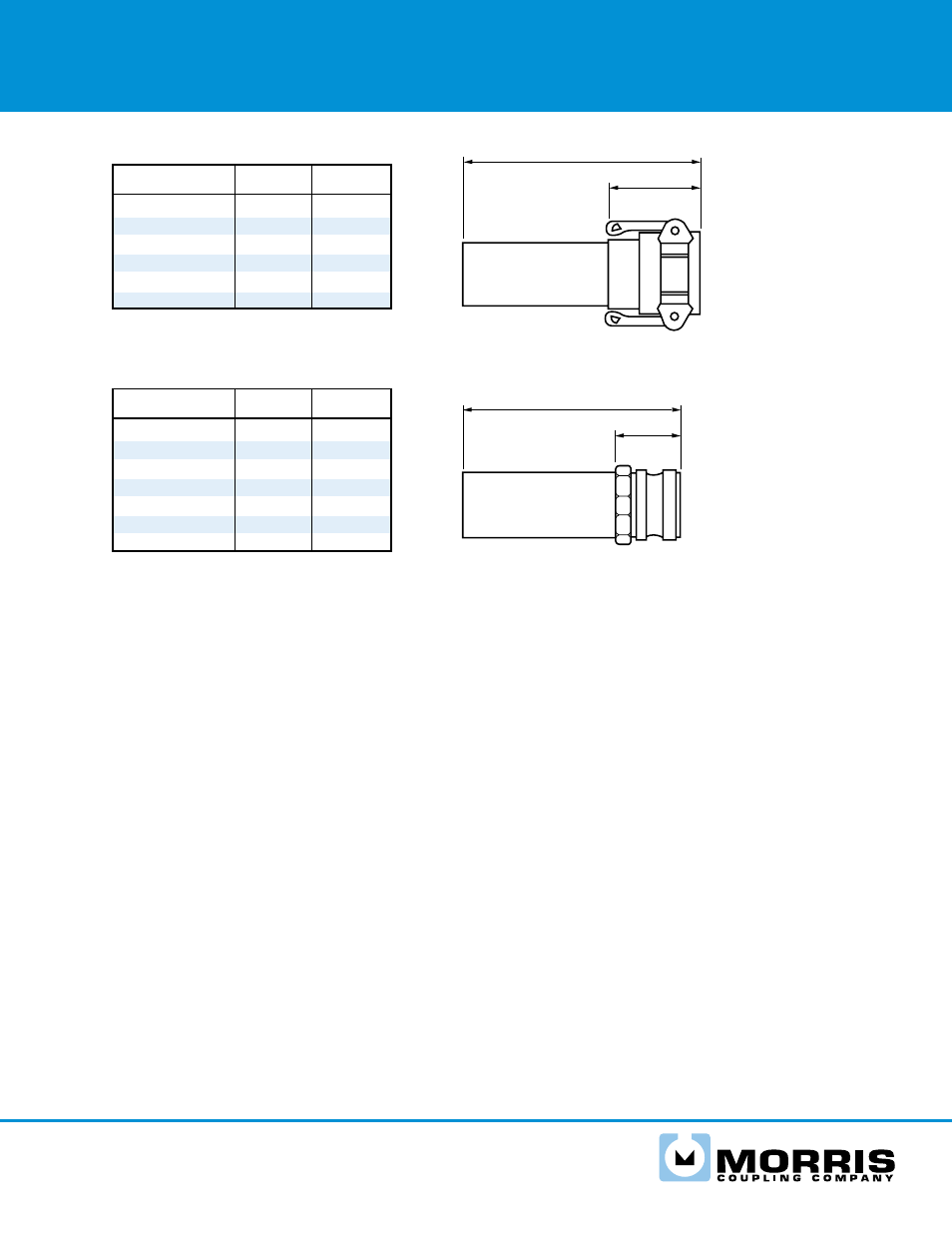

All dimensions are nominal.
Part Number
A
B
20QAL-F16
10-1/2"
3-1/8"
25QAL-F16
10-27/64"
3-1/2"
30QAL-F11
10-7/8"
3-9/16"
30QAL-F16
10-7/8"
3-9/16"
40QAL-F16
10-9/16"
4"
40QAL-F14
10-9/16"
4"
Female Adapter
Part Number
A
B
20QAL-M16
10-7/8"
3-3/8"
25QAL-M16
10-13/16"
3-13/16"
30QAL-M14
11-3/16"
3-15/16"
30QAL-M16
11-3/16"
3-15/16"
40QAL-M11
11-3/4"
4-1/2"
40QAL-M16
11-3/4"
4-1/2"
60QAL-M11
12"
4-3/4"
Male Adapter
B
A
B
A
