Mityvac 07201 FLUID EVACUATOR PLUS - Manual (Page 2)

Page Number - 2 Form 822823
©
Dipstick
Tubes
Main
Suction
Tube
©
©
3

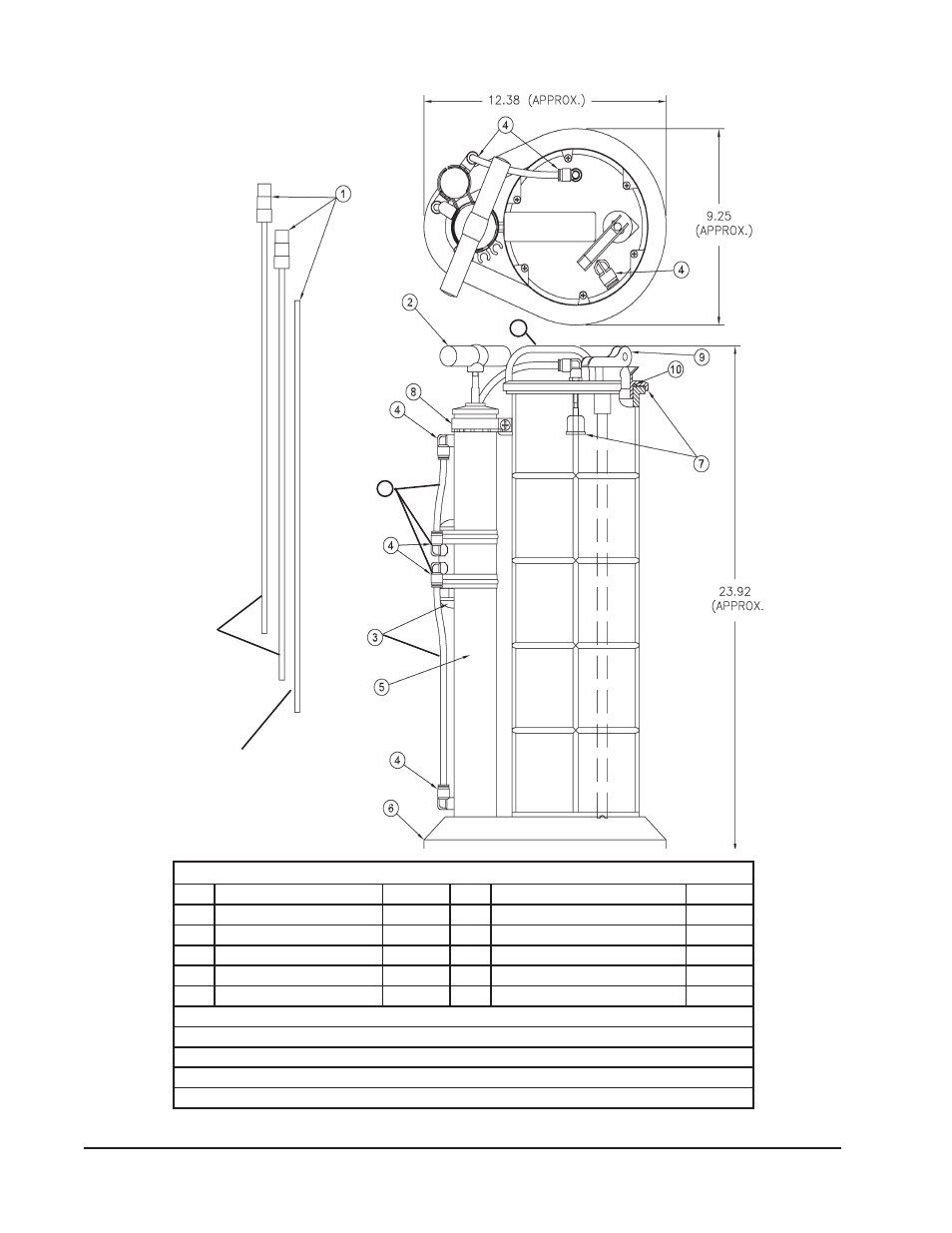

Model 07201 Service Items
Item Description Part No. Item Description Part No.
1 Vacuum tube Kit 822559 6 Base Kit **** 822574
2 Handle kit 822561 7 Evacuator Top Kit ***** 822576
3 Valve Kit * 822563 8 Pump Strap Kit (Quanity 2) 822578
4 Tube Connector Kit ** 822566 9 Expandable Plug Kit 822593
5 Pump Assembly Kit *** 822572 10 Top Seal Kit 822821
* Consists of three tubes, three 8 mm connetors and valve
** Consists of three 8 mm connectors and three 10 mm connectors
*** Consists of two 8 mm connectors, two tubes and pump assembly
**** Consists of base and foot bracket
***** Consists of top and overfill float.
