SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
March 2008

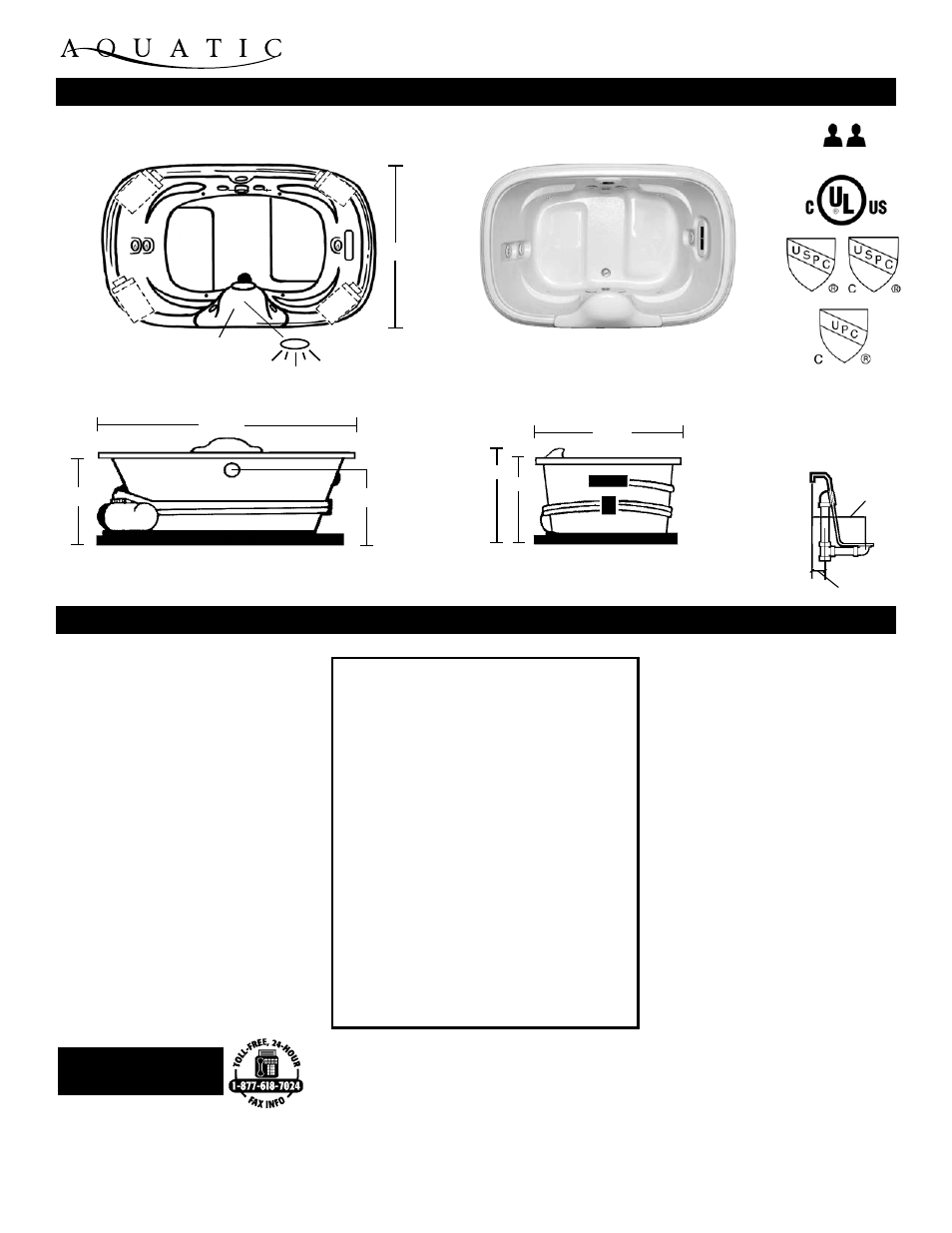

Rough-In Plumbing
Measurements
CENTury SErIES
Model # AI6644RC43
CENTury 43
21” 19 3/8”
42 5/8”
27 3/4”
23 3/4”
GeneRal SPecIfIcatIonS:
Tub Size 66 5/8” x 42 5/8” x 27 3/4”
169 cm x 108 cm x 70 cm
Bathing Well 43” long 48 ” long
28” wide
22 1/2” interior depth
Shipping Weight 245 lbs. / 111 kg
Tub Weight Filled 944 lbs. / 428 kg
Weight w/Equipment 139 lbs. / 63 kg
Gallons to Overflow 97 gal. / 367 L
Gallons to Operate 1 bather: 78 gal. / 295 L
2 bathers: 59 gal. / 223 L
electRIcal SPecIfIcatIonS:
Pump 2 HP; 11 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Inline Heater 1.5 kW; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
fax-on-Demand
Document # 1027
StanDaRD equIPMent:
12 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 4 Pressure Plus Hydrotherapy Jets
- 3 Recessed Rotary Massage Jets
- 1 Recessed Fan Jet
aquatic quality features:
- 2 HP, 3-Speed Run-Dry Pump
- 1.5 kW Inline Maintenance Heater
- Bath-Side Electronic Control Panel
- Integrally Molded Fast-Fill Waterfall Spout/Optional
- please specify on order (valves not included)
- Chromatherapy
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Pump Operation
- 2 Extra Deep & Wide Contoured Lounge Seats
- 4 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
•
Available without Fast-Fill Waterfall Spout
- See Price List for Details
• Comfort Pillow -- Oval or Rectangle
•
Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color Matched
(Bone, White and Biscuit Only)
•
Hand Held Jet - Chrome or Polished Brass
• Optional Pump Location
•
Remote Pump Location
• Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
oPtIonal equIPMent:
This unit is not recommended for shower installations.
This unit has a 3/4” male waterfall fill spout connection.
Two Person Bath
66 5/8”
42 5/8”
Fill Spout Location
6 3/4”
12”
*available without fast-fill waterfall spout.
