Maintenance/Service
7.8 Electrical System
Circuit-breakers and fuses

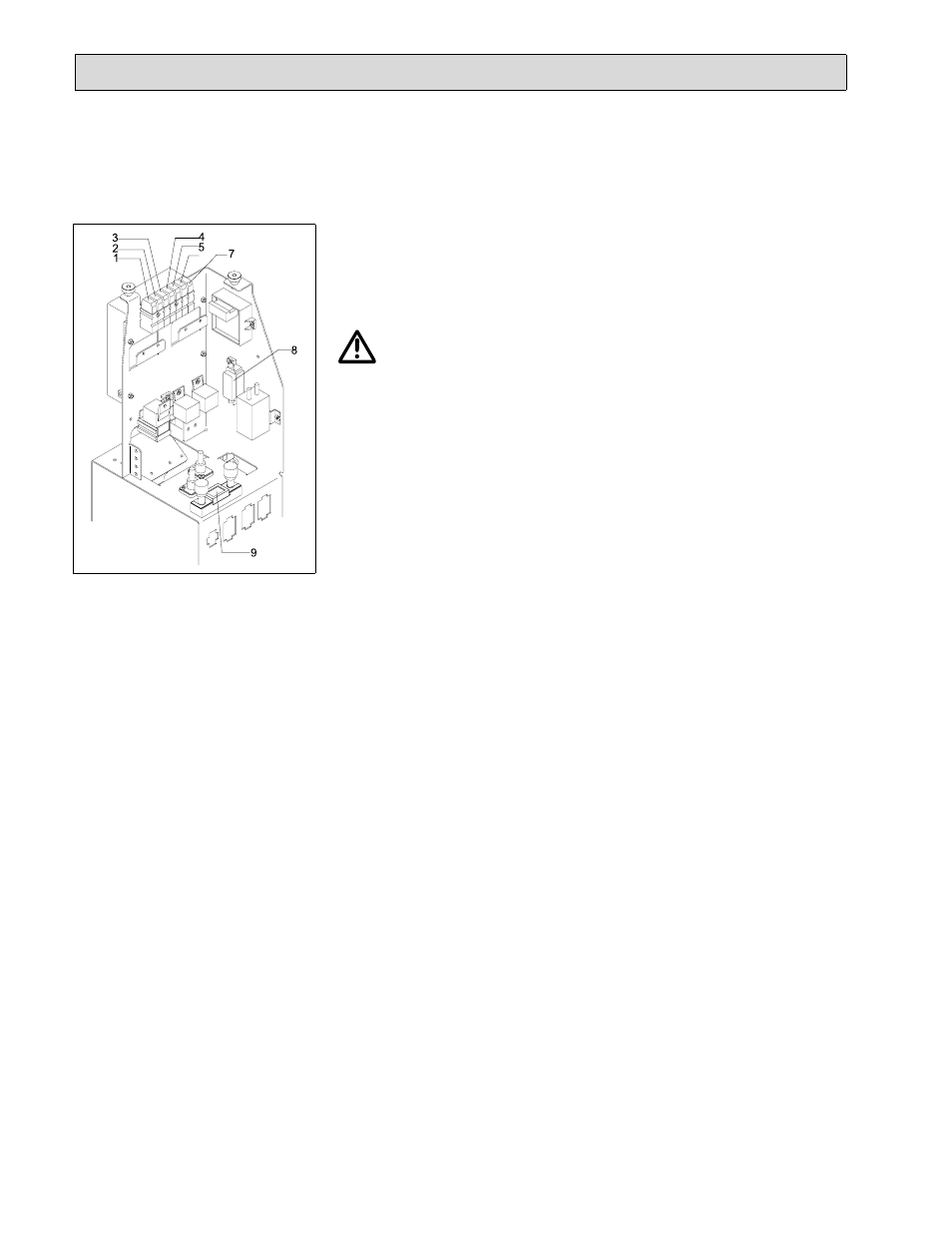

Fig. 18 Fuses
1. F2 Pre-fuse (20A)
2. F3 Travel drive assembly control
voltage (10A)
3. F4 Shaking function control voltage
(5A)
4. F5 not assigned
5. F6 LDS indication (5A)
6. F7 LDS (5A)
7. F11 Shaking motor (30A)
8. F12 Brush motor (60A)
9. F1 Drive control power module (63A)
Before leaving the ma-
chine unattended, en-
gage the parking brake
and remove key.
7.9 Brake
It is located in the rear wheels and is ac-
tuated via cables.
A special adjustment screw is situated
at the right-hand rear wheel.
