Machine Overview
The angle adjustment is the decisive factor
in ensuring that the squeegee blades on
the squeegee lie evenly on the floor.
1.
Park the machine on a level
surface and lower the squeegee.
2.

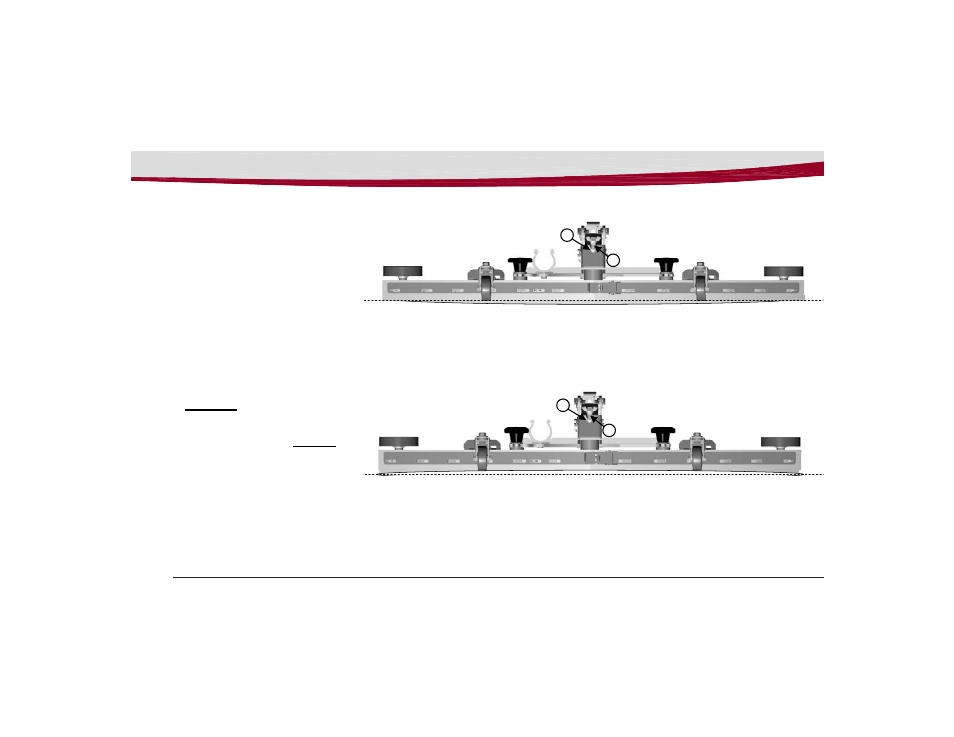

Loosen the lower wing nut (B) on
the adjusting screw (A) and adjust the
squeegee using the adjusting screw so
that the ends of the squeegee blades still
have contact with the floor. By turning the
adjusting screw (A) counterclockwise, the
clearance between squeegee blade and
floor is increased in the center (Fig. 1).
When turning the adjusting screw (A)
clockwise, the clearance between
squeegee blade and floor is reduced in
the center (Fig. 2).
3.
Switch the machine on and check
the suction pattern. When the machine is
in operation, the entire surface of the
squeegee blades (center and outer areas)
must be applied as evenly as possible.
4.
Tighten the lower wing nut (B) on
the adjusting screw (A) against the metal
bracket to lock in the pitch setting.
A
B
B
A
2
1
Adjusting the Squeegee Blades
Angle Adjustment
