Maintenance

F232172

c. For flat-pulley drive systems, verify allowable

distance of belt from edge of pulley. Refer to
Table 2 below.

d. For variable-speed models only, verify that

V-belts are properly tensioned by applying a
set force to the belts and measuring the
deflection to determine the belt tension. Refer
to Table 3 for the acceptable belt’s tension
ranges. Belt tension measurements should be
taken as close to the center of the belt span as
possible. Refer to Figure 16.

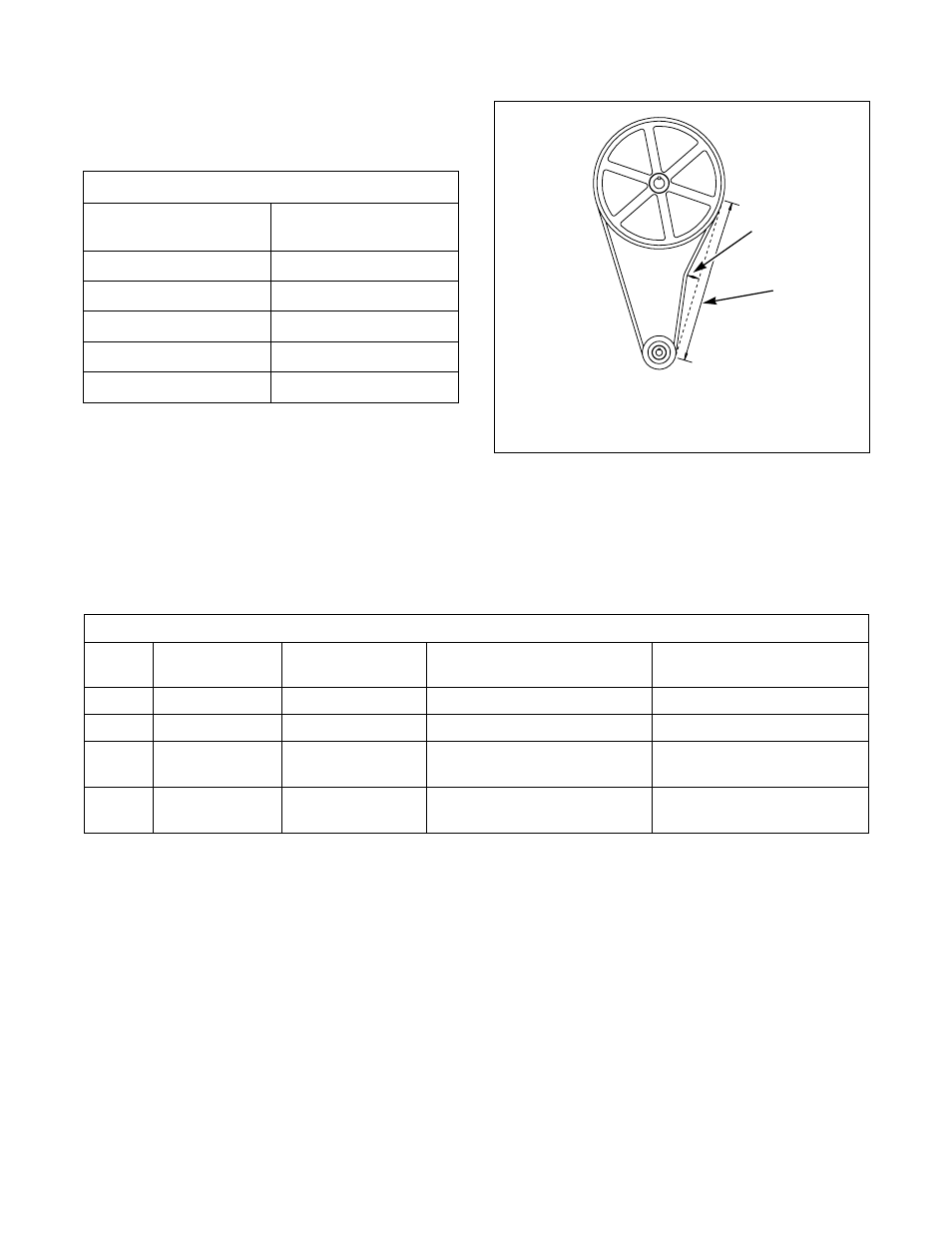

Figure 16

Flat-Pulley Alignment

Model

Allowable

Distance from Edge

.09 in. (2 mm)

50 – 60

.38 in. (10 mm)

Table 2

H039I

Deflection

Span Length

Belt Tension Testing for Variable-Speed Models

Model

Belt

Belt Span

Deflection Range

Force

Min – Max

35, 40

Motor-Basket

16.9 in. (428 mm)

.31 – .34 in. (7.9 – 8.7 mm)

6.1 – 7.4 lbs. (27 – 33 N)

50, 60

Motor-Basket

16.8 in. (426 mm)

.28 – .31 in. (7.1 – 7.9 mm)

6.1 – 7.4 lbs. (27 – 33 N)

Motor-Basket

Single Belt

22.1 in. (561 mm)

.47 – .5 in. (11.9 – 12.7 mm)

4.9 – 7.3 lbs. (21.8 – 31.5 N)

Motor-Basket

Banded Belt

22.1 in. (561 mm)

.22 – .25 in. (5.08 – 6.35 mm)

23 – 26 lbs. (102.3 – 115.6 N)

Table 3
