Operation
F232172 10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

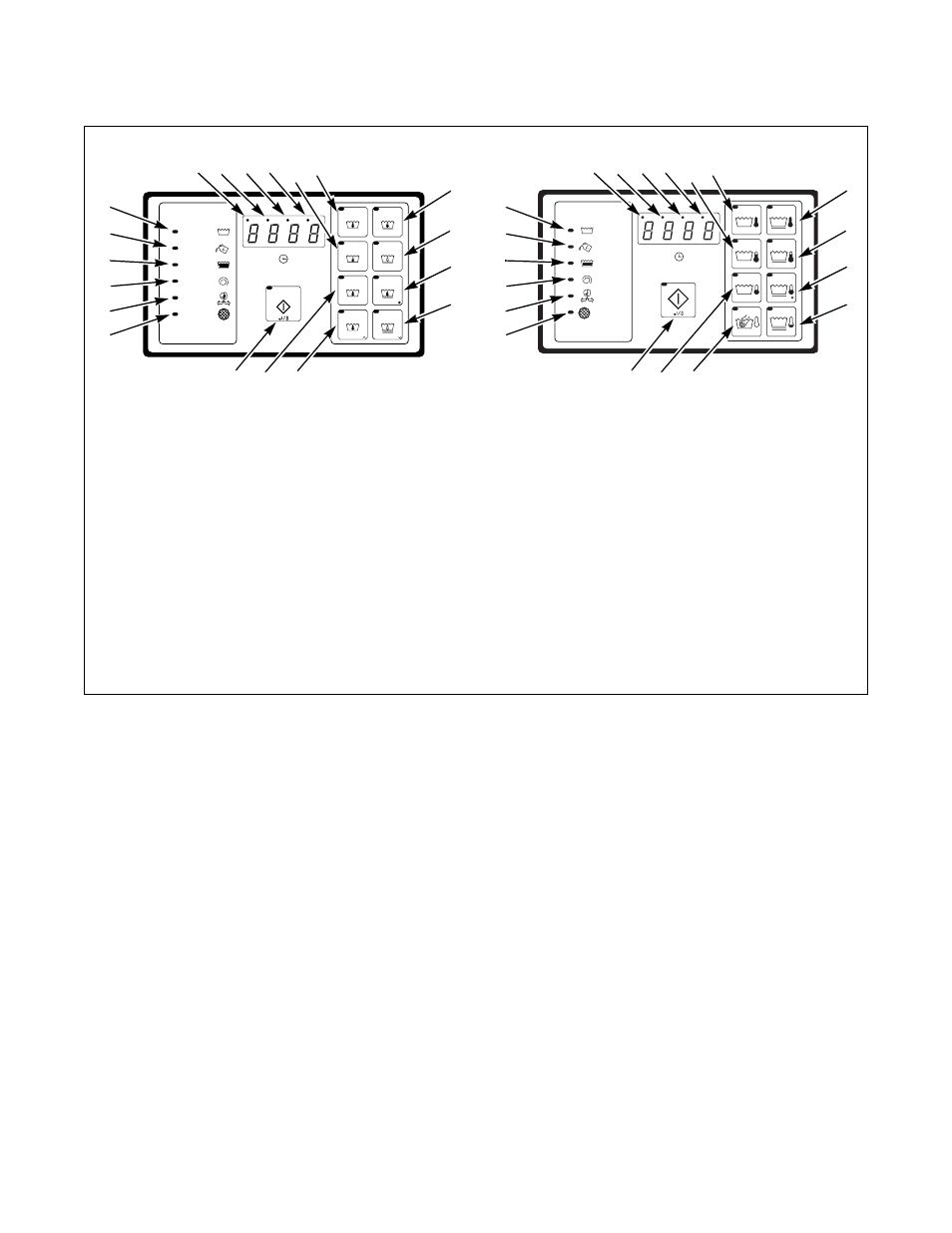

Control Panel, OPL Models Only
† Set Up(*) keypad is used in cycle programming in Program Mode. Refer to Programming manual.
CHM522N CHM1764C
1 Cycle 1 11 Door Open LED
2 Cycle 2 12 Spin Cycle LED
3 Cycle 3 13 Rinse Cycle LED
4 Cycle 4/Up Edit 14 Add Bleach LED
5 Cycle 5 15 Wash Cycle LED
6 Cycle 6 16 Out-of-Balance Indicator Dot
7 Cycle 7 / Set Up (*) Keypad † (Variable-speed only)
8 Cycle 8/Down Edit 17 High Water Level Indicator Dot
9 START Keypad 18 Medium Water Level Indicator Dot
10 CLEAN FILTER Indicator LED
(Active for all C80, and C60 X Voltage ONLY
models) 19 Low Water Level Indicator Dot
Figure 4
CHM522N
WASH
ADD
BLEACH
RINSE
SPIN
DOOR
CLEAN
FILTER
NORMAL
LIGHT SOIL
UNIFORMS HEAVY SOIL
STAINED DELICATE
HOT
HOT
HOT HOT
HOT
HOT
WARM
COLD
START
PERM PRESS
VISA TM
CHM1764C
60C 60C
40C 40C
95C 95C
< <
30C
DOMESTIC MODELS INTERNATIONAL MODELS
1
5
6
7
8
4
10
2
16 17 18 19
3 9
11
12
13
14
15
1
5
6
7
8
4
10
2
16 17 18 19
3 9
11
12
13
14
15
