CTAG01 PROC INP

Process Input

Entry point. May be configuration password

protected. Not available when application

builder database present (main db has no

template). Delete main database to access.
Load template defaults. Causes instrument

state change and returns you to DEV STAT.

YES = Load defaults. System compound

and PID loop compound CTAG01 loaded.
Entry point.
LIST = stay at list level, INSERT = add a

user compoud after system compound, or

EDIT = edit system compound.
LIST = stay at list level, INSERT = add a

user compoud after this compound,

EDIT = edit user compound,

DELETE = remove current user compound.

Only six of the eight possible

compounds may be configured when

I/O and performance are considered.
Verify deletion of a user compound.
Exit point.

Entry point.
Installation verifies and loads the template

making it the active database. NONE = exit

installation. INITCOLD = install using cold

start. INITWARM = install using warm start.

A failure occurs if there is a configuration

error or an active shutdown condition.
Exit point.

DEV STAT INSTATE

State Command

*DEVICE* ANY TAG

DEVice STATus

DEV STAT SHUTDOWN

Shutdown

SNWDOG 1 or

SYSPI 1 xxxxxxxx

Shutdown Page 1

SNWDOG 5 ACK SD or

SYSPI 5 ACK SD

Shutdown Page 5

SNWDOG 6 DEV STAT

Shutdown Page 6

DEV STAT COMMANDS

Commands

COMMANDS CLR Q

Clear Queue

COMMANDS CLR MT

Clear Maximum Times

COMMANDS ACK ALL

Global Acknowledge

COMMANDS RESET

Reset

COMMANDS KILL

Kill

COMMANDS DEL MAIN

Delete Main Database

COMMANDS RES MAIN

Restore Main Database

COMMANDS DEV STAT

Commands

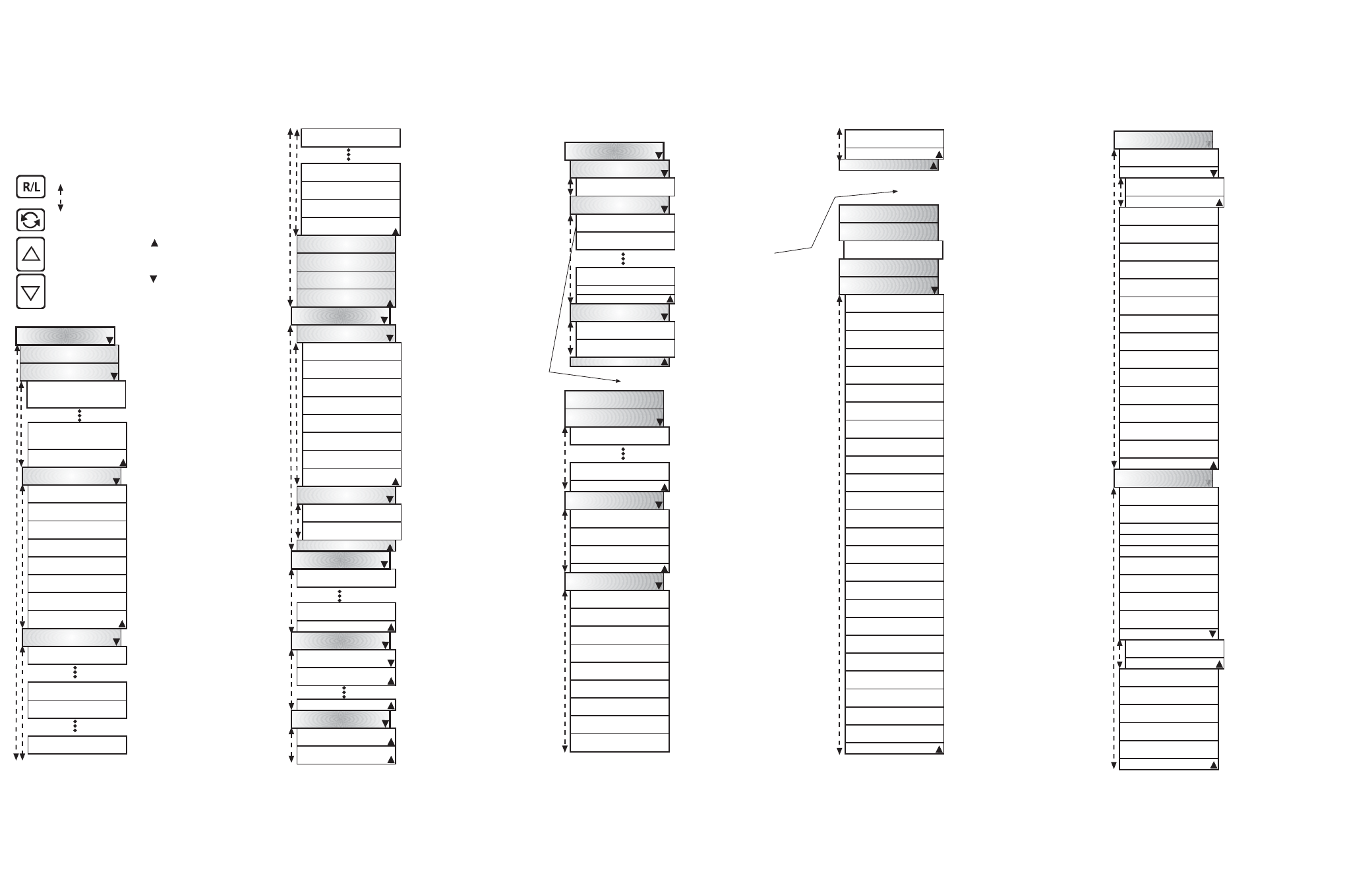

DEVICE DISPLAYS AND ENTRIES

This instrument generates display prompts to make setup and

operation fast and easy using built-in templates. In adition,

instrument status is available in the device displays. The

sequence of menus summarized below, is offered as a quick

reference to the operation book.

PREV:

Moves backward through the current level

of device displays.

NXT:

Moves forward through the current level

of device displays.

UP:

When active ( ), it will move up a level

(exit point), increase values and select a

YES response.

Down:

When active ( ), it will move down a level

(entry point), decrease values, select a

NO response.

Line 1 / Line 2 Display

Line 6 Display / Entry

Entry point. Configuration password may

be used.
DEF = Default, HLD = Hold, HOLD WST =

Hold with Warm Start, RUN = Run, RUN

WST = Run with Warm Start.
Entry point. NO, YES. Debug tool to read

instrument registers. YES = Shutdown.
Record numbers and time and date of

shutdown.

YES acknowledges shutdown, restarts

instrument and clears registers. Will not

start if acknowledge fails. Return instrument.

Exit point.

Entry point.

YES = Clear system event queue.

YES = Clear maximum scan times.

YES = Global acknowledge all diagnostics,

alarms and messages.

YES = Complete tasks and perform power-

up
YES = Perform immediate power-up.

YES = Mark main database bad and enter

the default state (DEF).
YES = Mark main database good, verify

and enter the run state (RUN).

Exit point.

Entry point.

Recent millisecond scan time for the

associated group.

Average millisecond scan time for the

associated group (updates after group

executes).

Line 1 / Line 2 Display

Line 6 Display / Entry

DEV STAT XTIMES

Execution times

XTIMES T1 MAX

Scan 1 Maximum Time

XTIMES T9 MAX

Scan 9 Maximum Time

XTIMES BASE SCN

Base Scan Time

XTIMES IDLE TM

Scan Idle Time

XTIMES DEV STAT

Execution Times

DEV STAT TIME

Time

DEV STAT DATE

Date

DEV STAT DAY

Day

DEV STAT *DEVICE*

Device Status

SETUP BI COMM

Built-in Comms

*DEVICE* ANY TAG

SETUP

BI ICN 1 ADDRESS

Built-in ICN 1 Address

BI ICN 1 ENABLED

Built-in ICN 1 Address

BI MSC 1 ADDRESS

Built-in MSC 1 Address

BI MSC 1 BAUDRATE

Built-in MSC 1 Baud Rate

BI MSC 1 PARITY

Built-in MSC 1 Parity

BI MSC 1 STOPBITS

Built-in MSC 1 Stop Bits

BI MSC 1 ENABLED

Built-in MSC 1 Enabled

BI COMM SETUP

Built-in Comms

SETUP PASSWORD

Change Access Level

PASSWORD

Password Entry

CURRENT LEVEL NONE

Current Access Level

SETUP *DEVICE*

*DEVICE* ANY TAG

I/O

Maximum millisecond scan time for the

associated group since entering the current

instrument state.

Average millisecond of processor time

between scan ticks. 00:00:00.050 unless

overconfigured.
Average millisecond of unused processor

time between base scan ticks.
Exit point.

HH:MM:SS. Current time. Always keep set

to current time.
DD:MM:YY. Current date. Always keep set

to current date.
1 - 7. Current day. Sunday = 1. Saturday

= 7. Always keep set to current day.
Exit point.

Entry point

Entry point.

0 to 15. ICN address. ICN jumper set.

Enabled = Active. Enable? = Inactive.

1 to 247. Only configurable from Default

state. RS-232 or RS-485 jumper set.
150, 300, 600, 1200, 2400, 4800, 9600,

19200, 38400

None, Odd, Even

1, 2

Enabled = Active. Enable? = Inactive.

Exit point.

Entry point.

Enter a number to change access level to

None, Tune or Configure.

Authorized access level after password

entry.
Exit point.

Entry point. Configuration password

protection may be used.
Module and signal type and value shown

or Unconfigured. Module can be put in

Manual and values changed from here.

Leave in Auto to get field result.
Same for BI AIN 2, BI AOUT 1,

BI AOUT 2, S01 through S11.

Exit point.

Entry point.

Block IF code 7 as described in

IB-1800R-OPR Appendix A.
Date and Time of above event.

Repeat for each diagnostic and event code

in system event queue.
Exit point.

Entry point.

Installed firmware version.

Installed display version.

BI AIN 1 AIN MA

Built-in Analog Input 1

S11 UNCONFIG

Slot 11 Unconfigured

I/O *DEVICE*

Line 1 / Line 2 Display

Line 6 Display / Entry

Template Setup: General

*DEVICE* ANY TAG

TEMPLATE

LOAD DEFAULTS

Load Defaults

VERIFY LOAD

Verify Load

EDIT TEMPLATE

Edit Template

CMP LIST *SYSTEM*

System Compound

CMP LIST CTAG01

Compound Tag 01

CMP LIST CTAG08

Compound Tag 08

VERIFY DELETE?

CMP LIST

Edit System Compound

INSTALL TEMPLATE

Install Template

INSTALL TYPE

Installation Type

CONFIG REQUEST

Request Failed

TEMPLATE

SYSTEM DEV TAG

System Device Tag

Instrument identification tag. Modify using

UP/DN keys to change character, NXT/PRV

to change position, ENT to enter.
Entry point.

Scan groups 1 through 5 are user defined

intervals for loops. The fastest group has

the highest priority. The lower numbered

group has the higher priority if the interval

is the same. Set group scan interval for a

period of 50 ms to 5 seconds.

Exit point.

Entry point.

Enter number required to access tuning

parameters.

Enter a number required to access

configuration parameters.
0 = infinite. 1 to 54 minutes. Time after last

keyboard activity where access level

changes back to none.
Exit point.
Entry point.

FAST = off 100 msec, on 300 msec.

SLOW = off 250 msec, on 750 msec.
OFF = Flashing display disabled

ENABLE = Display flashes for diagnostic.
OFF = Beeping disabled

ENABLE = Beep for diagnostic.
All process alarms with priority >= this value

(2 - 255) are considered LOW priority for

display purposes.
FAST = off 100 msec, on 300 msec.

SLOW = off 250 msec, on 750 msec.
OFF = Flashing display disabled

ENABLE = Display flashes for high alarm.
OFF = Beeping disabled

ENABLE = Beep for high alarm.
FAST = off 100 msec, on 300 msec.

SLOW = off 250 msec, on 750 msec.
OFF = Flashing display disabled

ENABLE = Display flashes for low alarm.

SYSTEM SCANGRPS

System Scan Groups

SCAN GROUP 1

Scan Group 1 Interval

SCAN GROUP 5

Scan Group 5 Interval

SYSTEM

SYSTEM PASWORDS

System Passwords

TUNE PASSWORD

Setup Tune Password

CONFIG PASSWORD

Setup Config Password

ACCESS TIMEOUT

Access Timeout

SYSTEM

Line 1 / Line 2 Display

Line 6 Display / Entry

OFF = Beeping disabled

ENABLE = Beep for low alarm.
Exit point.

Exit point.

LOW PRI RATE

Low Priority Alarm Rate

LOW PRI FLASH

Low Priority Alarm Flash

LOW PRI BEEP

Low Priority Alarm Beep

SYSTEM

SYSTEM

Edit User Compound

TAG ID STRING

Loop Tag ID

CTAG01 CMP TYPE

Compound Type

CHANGE TYPE?

Change Compound Type

CTAG01 SCAN GRP

Scan Group

8 character tag that identifies loop (CTAG01

is the first default loop tag).

SNGLLOOP = Single loop PID type.

MASTER C = Master & Slave PID types.

YES = to verify change in loop type.

Scan Group 1 to 5 in which loop is to be

executed.

Entry point.

NONE, BI AIN1, BI AIN 2, S01 to S11
General: VOLTS, MVOLTS, CURRENT,

RESIST, THRMOCPL. 1 Slot: RTD2WIRE,

CURRNT2W. 2 Slot: RTD3WIRE,

WIDERES. Built-in only: TC W/CJC, RTD
0 = no filtering (last sampled value). 0.01

to 100 minutes.
0% value in input units.

100% value in input units.

LINEAR, MOD SQRT, MOD SQR, SQ

ROOT, SQUARE.
LOW (Built-in = 0 to 55 ohms)
HIGH (Built-in = 0 to 430 ohms).
Ohms at 0°C. 2-Wire (0 to 4000), 3-Wire

(0 to 400), Built-in (0 to 430)

Leadwire ohms. May cause overrange if

value exceeds sum of LW and input.

B, E, J, K, N, R, S, T.

Celsius, Kelvin, Rankine, Farenheit.

Calibration value in result units.

1 is nominal. Calibration value in result

units.

PT3850, PT3923, PT3902, PT3911,

NI6270.
Float 0 = X, Float 1 = X.X, Float 2 = X.XX,

and so forth to Float 6 = X.XXXXXX
0% value in engineering units.

100% value in engineering units.

0 to 4 character label for process input.

Value has precedence over label.

NONE, BI AIN1, S01 to S11.

NONE, DN SCALE (downscale signal),

UP SCALE (upscale signal).
Result is set bad if it goes below this value.

Result is set bad if it goes above this value.

Disable or Enable.

NONE, S01 to S11. Location of digital

output.

0 to 255. 0 = suppress unacknowledge.

Exit point.

PROC INP SLOT

Process Input Slot

PROC INP INP TYPE

Type

PROC INP FILTER

Filter

PROC INP LO SIGNL

Low Signal

PROC INP HI SIGNL

High Signal

PROC INP LINEARZT

Linearization

PROC INP RES RNGE

Resistance Range

PROC INP NOM RES

Nominal Resistance

PROC INP LW RES

Leadwire Resistance

PROC INP TC TYPE

Themocouple Type

PROC INP TEMPSCAL

Temperature Scale

PROC INP ZERO

Zero

PROC INP SPAN

Span

PROC INP RTD TYPE

RTD Type

Line 1 / Line 2 Display

Line 6 Display / Entry

Entry point.

Float 0 = X, Float 1 = X.X, Float 2 = X.XX,

and so forth to Float 6 = X.XXXXXX
Entry point.
See process value input setup to configure

slot, type and other parameters.
Exit point.
Enable or Disable local set-point value.

Enable or Disable remote set-point ratio

value.
Initial ratio value.
Enable or Disable remote set-point bias

value.
Initial bias value.

AUTO RAT (Ratio), AUTO BIA (Bias) =

value that is calculated to balance transition

to remote. STANDARD = operator values.
Value determines lower set-point limit.

Value determines upper set-point limit.
Previous (requires initial mode), Local or

Remote (local only for master controller).
Local or Remote (local only for master

controller).
Previous (enter an initial value) or

Preset (enter a restart value).

Restart value for set-point.

Initial value for set-point.

Enable or Disable set-point tracking (set-

point tracks input when in manual).
Exit point.

Entry point.
Gain (1), Reset (2), Pre-Act (3), Manual

Reset (4) responses: O=Off, P=On

Process, E=On Error or Manual Reset

Enabled, S=Standard reset, M=Micro-Scan

reset.
Direct or Reverse.
0.01 to 125.0 proportional response in a

fixed gain controller.

0.01 to 125.0 repeats per minute.
0.00 = off, 0.07 to 32 = pre-act time base.
NONE = No low pass filter, PRE AUTO =

Pre-act filter, PRE USER = derivative filter

on process error, PROCUSER = process

filter on process error. Filter time in minutes

where small values maintain recent input.
NONE = no manual reset balance,

PRCDLESS = Procedureless (value

calculated on transfer to auto).

Initial value -10 to 100% for proportional

only controllers.
Entry point. Specify FF range in % output.
See process value input setup to configure

slot, type and other parameters.
Exit point.
Value multiplied against FF Input before

FF CALC is applied to output.
Output % value added to FF Input before

FF CALC is applied to output.
FF Input with gain and bias ADDed or

MULTIPLY to / against auto output.
Previous, Manual , Auto. Used on cold or

frozen restart. Must match allowed modes.
Manual, Auto.

Exit point.

XTIMES T1 IMMED

Scan 1 Execution Time

XTIMES T9 IMMED

Scan 9 Execution Time

XTIMES T1 FILTD

Scan 1 Filtered Time

XTIMES T9 FILTD

Scan 9 Filtered Time

*DEVICE* ANY TAG

EVENTS

EVENTS *DEVICE*

INST IN RUN

Informational Event

MM/DD/YY HH:MM:SS

Information Only

*DEVICE* ANY TAG

ABOUT

SYSTEM ALARMS

System Alarms

DIAGNSTC RATE

Diagnostic Rate

DIAGNSTC FLASH

Diagnostic Flash

DIAGNSTC BEEP

Diagnostic Beep

MINIMUM LOW PRI

Minimum Low Priority

HIGH PRI RATE

High Priority Alarm Rate

HIGH PRI FLASH

High Priority Alarm Flash

HIGH PRI BEEP

High Priority Alarm Beep

FW VERS I1A 1.0

Firmware Version

DISP VER 5.1

Display Version

PROC INP DISP FMT

Display Format

PROC INP LO ENGU

Low Engineering Units

PROC INP HI ENGU

High Engineering Units

PROC INP EU LABEL

Engineering Unit Label

PROC INP CJC SRC

Cold Junction Source

PROC INP BURNOUT

Burnout Detection

PROC INP LO QUAL

Low Quality Value

PROC INP HI QUAL

High Quality Value

PROC INP QUAL ALM

Quality Alarm?

PROC INP QA D OUT

Quality Digital Output

PROC INP QA PRI

Quality Priority

PROC INP

CTAG01 SETPT

Set-point

SETPOINT DISP FMT

Display Format

REMOTE SETPOINT

REMSETPT xxxxxxxx

Remote Set-point Input

REMSETPT

LOCAL SETPOINT

Local Set-point?

SETPOINT RATIO

Set-point Ratio?

SETPOINT RATIO

Set-point Ratio Value

SETPOINT BIAS

Set-point Bias?

SETPOINT RATIO

Set-point Bias Value

SETPOINT BALANCE

Set-point Balance Type

SETPOINT LO LIMIT

Set-point Low Limit

SETPOINT HI LIMIT

Set-point High Limit

RESTART SP MODE

Set-poit Restart Mode

INITIAL SP MODE

Initial Set-point Mode

RESTART SP VALUE

Set-point Restart Value

RESTART VALUE

Set-point Preset Value

INITIAL VALUE

Set-point Initial Value

SETPOINT TRACK

Set-point Tracking?

GAIN

COMPOUND

CTAG01 CONTROL

Control

CONTROL ALGO TYP

Control Algorithm Type

CONTROL ACTION

Control Action

RESET

PREACT

CONTROL FILTYPE

Filter Type

FILTER

Filter Value

CONTROL MR TYPE

Manual Reset Balance

MR VAL

Manual Reset Value

FEED FORWARD

FF GAIN

Feed Forward Gain

FF BIAS

Feed Forward Bias

FEED FWD xxxxxxxx

Feed Forward Input

FEED FWD

FF CALC

Feed Forward Calculation

RESTART MODE

Output Mode Restart

Initial MODE

Initial Mode (Previous)

COMPOUND
