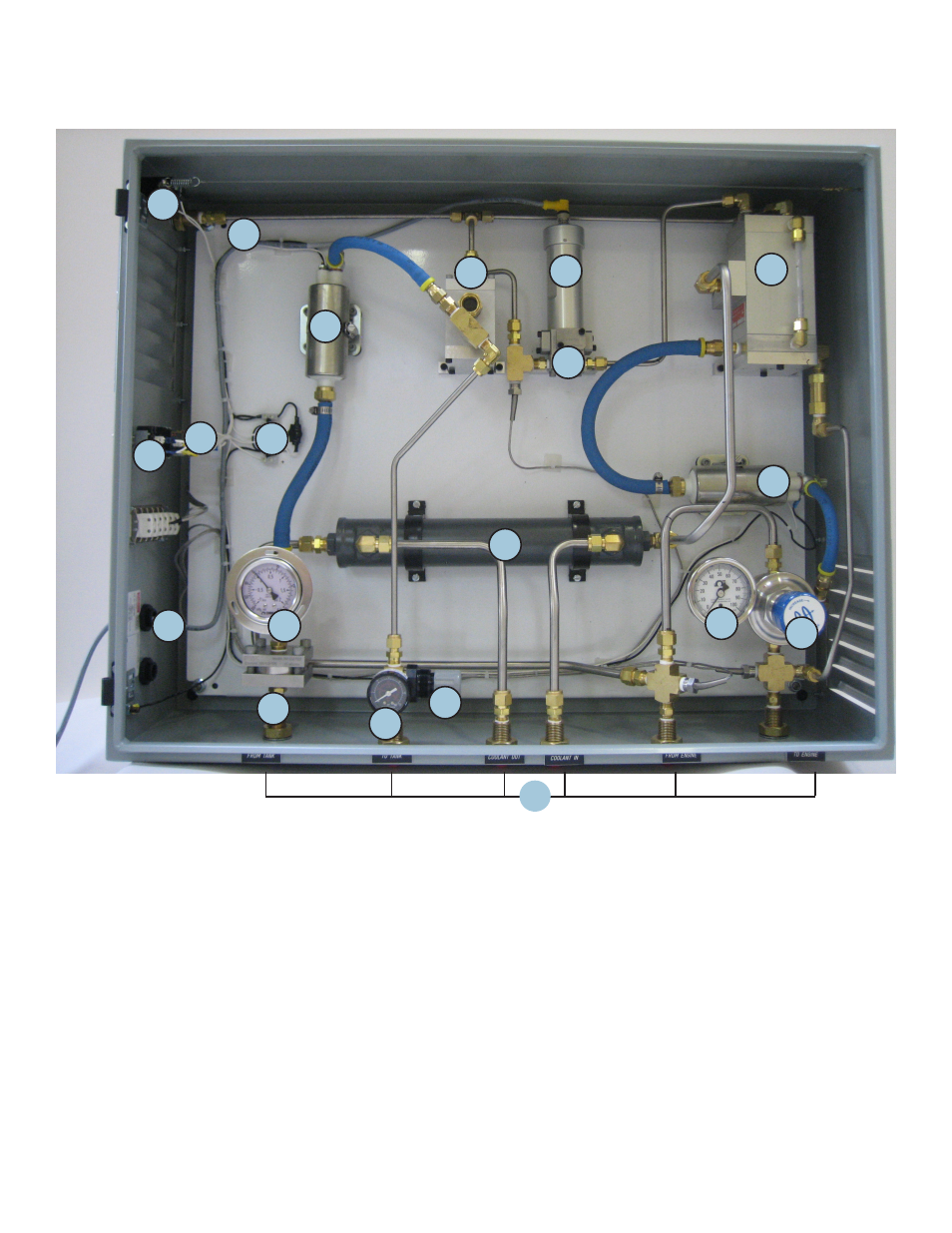

Fuel Conditioner Unit
1. Engine and Tank Connections: Hoses attach to
these fittings to carry fuel to and from the tank.
2. Fuel Filter: Filters the fuel entering the 710
system. The filter element replacement kit #381-
102-705 is available from the factory.
3. Transfer Pump: This pump draws fuel from
the vehicle fuel source and pressurizes the flow
meter. It also pumps fuel through the cooling
side of the heat exchanger.
4. Inlet Pressure Regulator: Typically set to 17
PSI. This is the optimum pressure for operation
of the vapor eliminator and flow meter.
5. Inlet Pressure Gauge (a): Typically reads 17
PSI. Set with Item 4.
Inlet Pressure Gauge (b): Pressure prior to
transfer pump.
6. Vapor Eliminator: Eliminates air vapor
from the fuel prior to the flow meter, to avoid
measurement errors. See manual 372-100-350 or
370-100-350.
1
18
14
3
6 7 9
8
11
17 16
10
19
12
13
4
5b
5a
2
15
