14
PROCEDURE
CONTACT TRIP WITH ANTI-DOUBLE FIRE MECHANISM
(US patent 5597106, UK patent 2286790)
Identified by RED TRIGGER.
The Switching Lever is removed.

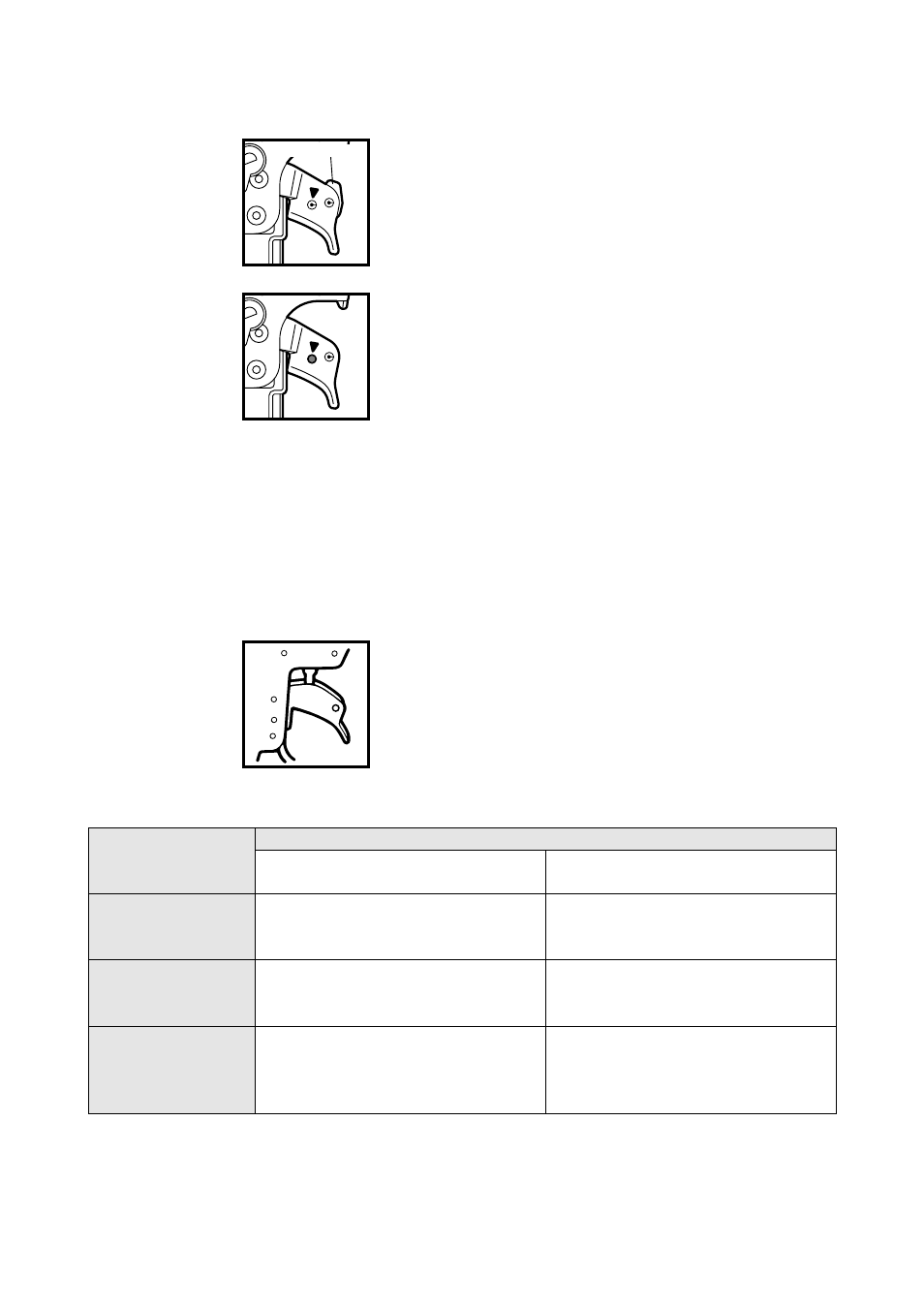

MODEL IDENTIFICATION
SINGLE ACTUATION
Identified by SWITCHING LEVER.
SEQUENTIAL TRIP
The Sequential Trip requires the operator to hold the tool against the work before pulling the trigger. This
makes accurate fastener placement easier, for instance on framing, toe nailing and crating applications.
The Sequential Trip allows exact fastener location without the possibility of driving a second fastener
on recoil, as described under “Contact Trip”.
The Sequential Trip Tool has a positive safety advantage because it will not accidentally drive a
fastener if the tool is contacted against the work-or anything else-while the operator is holding the
trigger pulled.
SEQUENTIAL TRIP
Identified by ORANGE TRIGGER.
q Pulling the Trigger and keeping it pulled.
w Depressing the Contact Arm. q Depressing the Contact Arm.
w Pulling the Trigger and keeping it pulled.
SINGLE ACTUATION
・ The tool fires a nail.
・ The tool cannot fire a second nail until the
Trigger is released.
・ The tool fires a nail.
・ The tool cannot fire a second nail until the
Trigger is released.
CONTACT ACTUATION
WITH ANTI-DOUBLE
FIRE MECHANISM The tool fires a nail each time when the
Contact Arm is depressed. ・ The tool fires a nail.
・ The tool cannot fire a second nail until the
Trigger is released.
SEQUENTIAL TRIP
The tool cannot fire a nail. ・ The tool fires a nail.
・ The tool cannot fire a second nail until the
Trigger is released and the Contact Arm is
left work surface.
Switching Lever
