ImPorTanT: Make sure the drawbar tongue is locked to
the latch stand bracket by the latch lock lever.
26. Turn cart over onto its wheels.
27. (Model 45-0350 only) Press the protective edging strips
onto the ends of the tailgate. See figure 13.
28. Slide the tailgate down into the tailgate guides so that
the holes in the bottom of the tailgate fit over the screws
in the bottom of the cart bed. See figure 13.
assemBlInG raIls - moDel 45-0350 onlY
29. Assemble seven rail braces to the top flange on the
sides and the front of the cart bed. Use thirteen 1/4" x
3/4" hex bolts, 1/4" flat washers and 1/4" nylock nuts.
Do not tighten yet. See figure 14.

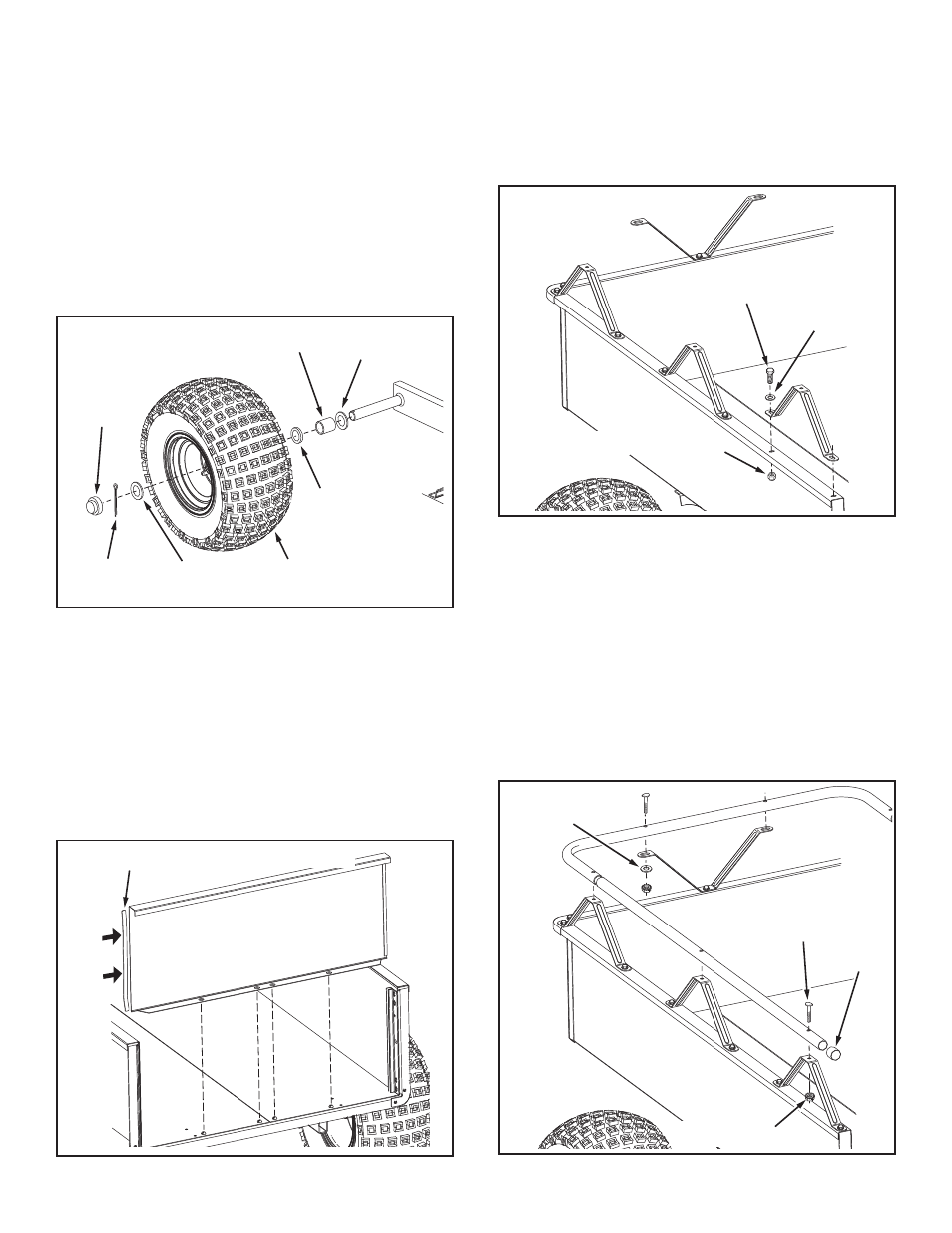

FIGure 12
22. Assemble a 1" thin washer, a spacer, a 1" thick washer
(model 45-0350 only), a wheel with the valve stem facing
out, and another 1" thin washer onto a wheel axle. Insert
a cotter pin into the axle and spread the ends. Repeat
for the other three wheels. See figure 12.
noTe: Eight extra 1" thin washers are provided to take up
end play if necessary.
23. Press a hub cap onto the flat washer on each of the
four wheels. See figure 12.
24. Check tire pressure (max. psi printed on tire).
25. Pump the wheel hubs full of general purpose grease.
FIGure 14
30. Insert the ends of the side rails into the front rail so that
the holes align. See figure 15.
31. Assemble the side rails to the rail braces on the sides
of the cart using six curved head bolts and 5/16" SEMS
nuts.
Tighten all loose nuts and bolts. See figure 15.
32. Assemble the front rail to the rail brace on the front of
the cart using two curved head bolts, 5/16" flat washers
and 5/16" SEMS nuts.
Tighten all loose nuts and bolts.
See figure 15.
33. Assemble two vinyl caps onto the ends of the side rails.
See figure 15.
FIGure 15 FIGure 13
SPACER
1/8" x 1-1/2"
COTTER PIN
1" THIN
WASHER
1" THICK
WASHER
(45-0350 ONLY)
1" THIN
WASHER
HUB CAP
WHEEL
(45-0350 SHOWN)
1/4" x 3/4"
HEX BOLT
1/4" FLAT
WASHER
1/4" NYLOCK NUT
PROTECTIVE EDGING (45-0350 ONLY)
CURVED
HEAD
BOLT
5/16" SEMS NUT
VINYL
CAP
5/16" FLAT
WASHER
