4

assemBlY InsTruCTIons

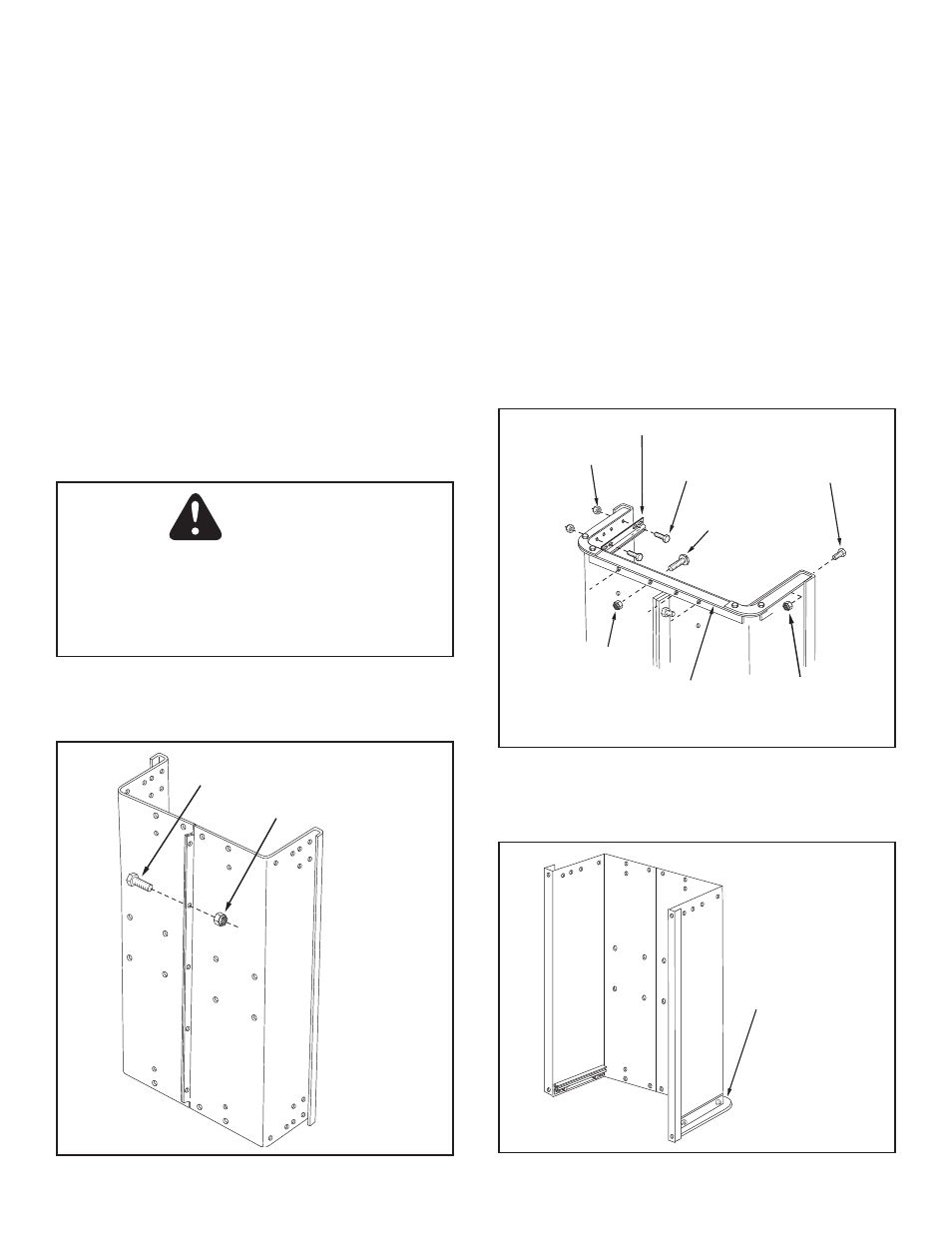

FIGure 1

5. Position the tailgate reinforcement bracket on outside

of cart as shown in figure 3. Assemble to the bottom of
the cart body using four 5/16" x 3/4" truss head bolts
and 5/16" nylock nuts.

Do not tighten yet. See figure

2.

6. Position the tailgate guides on the inside of the cart

bodies with guide channels to the front. Assemble using
four 1/4" x 5/8" hex bolts and 1/4" nylock nuts.

Do not

tighten yet. See figure 2.

7.

(45-0351 only) Fasten the ends of the tailgate
reinforcement bracket to the top flange of the cart using
two 1/4" x 5/8" bolts and 1/4" nylock nuts. See figure
2.

8.

At this time, with the cart body halves pulled together,

tighten the truss head bolts assembled in step 5 and
then

tighten the hex bolts assembled in steps 6 and 7.

Do not tighten the bolts that were assembled in step
4.

FIGure 2

FIGure 3

Do not leave the cart unattended in the upright
position. A falling cart can cause personal injury!
Pay close attention to the stability of the cart while
it remains in an upright position. For best stability,
assemble on a smooth, level surface.

Tools reQuIreD For assemBlY

(1)

Screwdriver

(1)

Pliers

(2)

7/16" Wrenches

(2)

1/2" Wrench

(2)

9/16" Wrenches

(1)

Grease Gun with general purpose grease

1. Remove the hardware pack and all loose parts from the

carton. Be sure the carton is empty before discarding.

2. Lay out all parts as shown. Extra pieces of some items

may be included in hardware pack.

noTe: To prevent scratching paint, cover work surface with
a mat or cardboard.

3. Position cart body halves upright on a smooth level

surface such as a garage floor or a paved driveway.
See figure 1.

4. Assemble halves together using five 1/4" x 5/8" hex

bolts and 1/4" nylock nuts as shown in figure 1.

Do not

tighten yet.

TAILGATE
REINFORCEMENT
BRACKET

CauTIon

1/4" x 5/8" HEX BOLT

1/4" NYLOCK NUT

1/4" x 5/8"

HEX BOLT

5/16" x 3/4"

TRUSS HEAD

BOLT

5/16" NYLOCK NUT

1/4" NYLOCK

NUT

TAILGATE

REINFORCEMENT

BRACKET

TaIlGaTe GuIDe

1/4" x 5/8"

HEX BOLT

(45-0351 only)

1/4" NYLOCK NUT

(45-0351 only)

9. Carefully turn the cart over so that the tailgate

reinforcement bracket is on the bottom. See figure 3.
