Automatic Pro Gun Manual
Rev. 06/2012 Page | 32

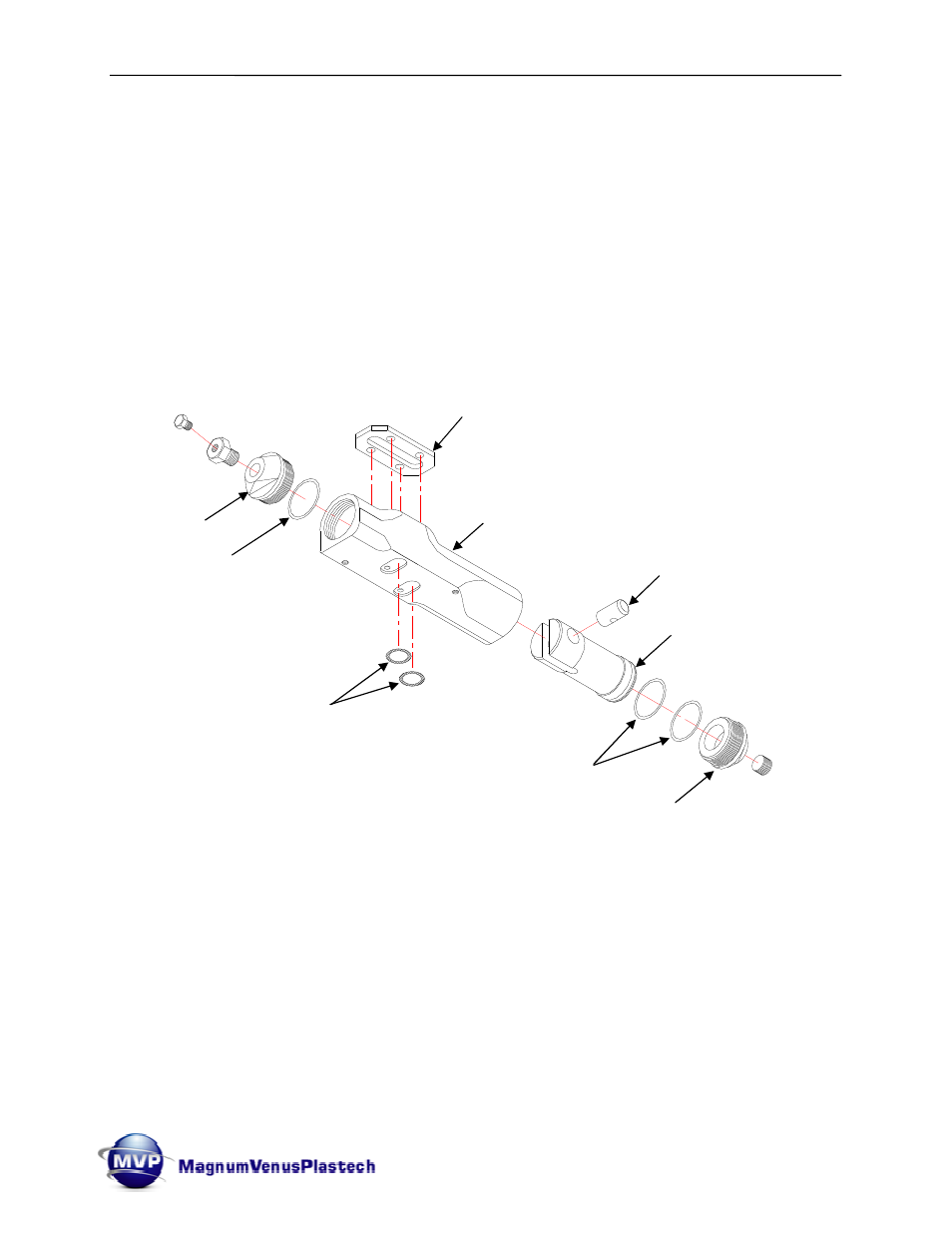

Assemble Auto Pro Gun Actuator Cylinder
1. Place a new o-ring (O-V-020) on the actuating piston (5106-7-1).
2. Insert the actuating bushing (5106-5-1) into the actuating piston.
Note: The hole in the actuating bushing must be facing up so the bushing hole
can receive the actuating stem when the gun block is assembled.
3. Use MVP Pro Gun Oil (6706-3-1) to lubricate the interior of the cylinder body and
the actuating piston.
4. Insert the actuating piston (5106-7-1) into the cylinder body (58631-1).
Note: Install the actuating piston into the cylinder so that the bushing is on the
high side of the piston centerline. Use caution not to damage the o-ring on the
piston while installing it into the cylinder body.
5. Place new o-rings (O-V-013) in the grooves on the underside of the cylinder
body.
6. Install new an o-ring (O-V-020) on each of the cylinder caps.
7. Reinstall the two cylinder caps on to the cylinder body.
O-V-020 (O-RING)
O-V-013 (O-RING)
O-RING
END CAP 58631-1 (CYLINDER)
5106-5-1 (BUSHING)
5106-7-1 (PISTON)
5106-4-1 (END CAP)
5106-2-1 (ACTUATOR SEAL)
