Remove hose fittings, Remove valve rod, Remove center spacer – Magnum Venus Plastech Auto Pro Gun CPC_CPG_CPT_PRTM-DG User Manual
Page 22
Automatic Pro Gun Manual
Rev. 06/2012
Page | 22
Remove Hose Fittings
1.
Remove and clean the catalyst fitting and o-ring on the rear of the gun block.
2.
Remove and clean the resin fitting and o-ring on the rear of the gun block.

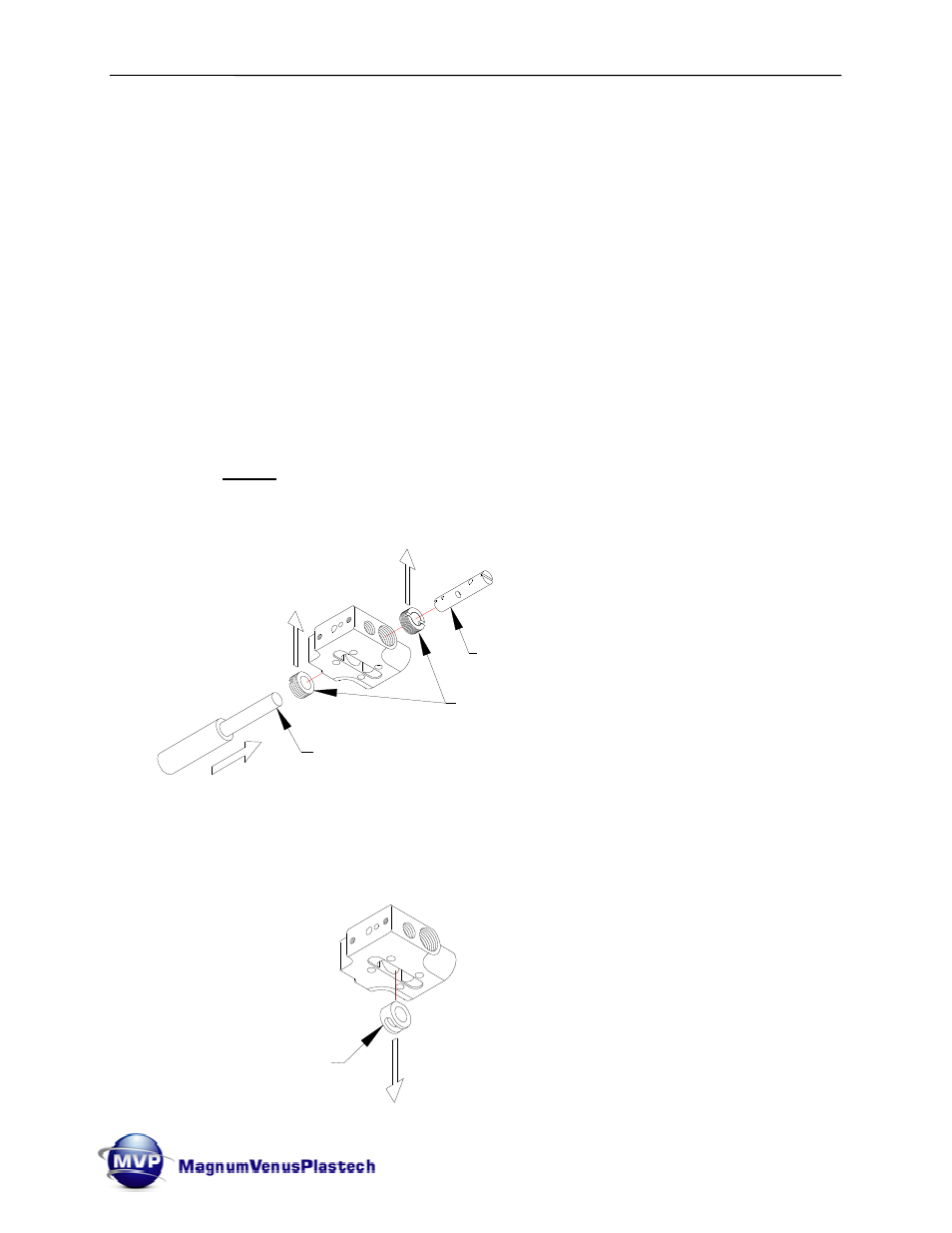

Remove Valve Rod
1.
Use the magnetic handle and packing bit to unscrew the packing nuts (5104-8-1)
from both the catalyst and resin side. Use caution not to damage the packing bit.
If you are unable to remove the packing nut soak in a solvent or apply heat to the
packing nuts.
2.
Place the small end of the seal installation tool onto one end of the valve rod.
3.
Use a rubber mallet or hammer to gently tap the valve rod out of the gun block.
4.
Inspect the valve rod for damage; clean with solvent.
PACKING NUT
VALVE ROD
SEAL INSTALLATION TOOL
Remove Center Spacer
1.
Use needle-nose pliers to remove the center spacer (5104-10-1).
CENTER SPACER
