PCP-1000 Catalyst Pump Manual
Rev. 05/2012 Page | 24
Connect Outlet Body to Inlet Body
1. Be sure the lock nut (4101-1-1) is screwed onto the outlet body (15824-3).
2. Wet the new O-Ring (O-S-014) with clean water and place it on the outlet body.
CAUTION: Be sure the O-Ring is not on the threads of the outlet body.
3. Screw the outlet body into the inlet body, when the inlet body makes
contact with the outlet body unscrew the outlet body part of a turn so that

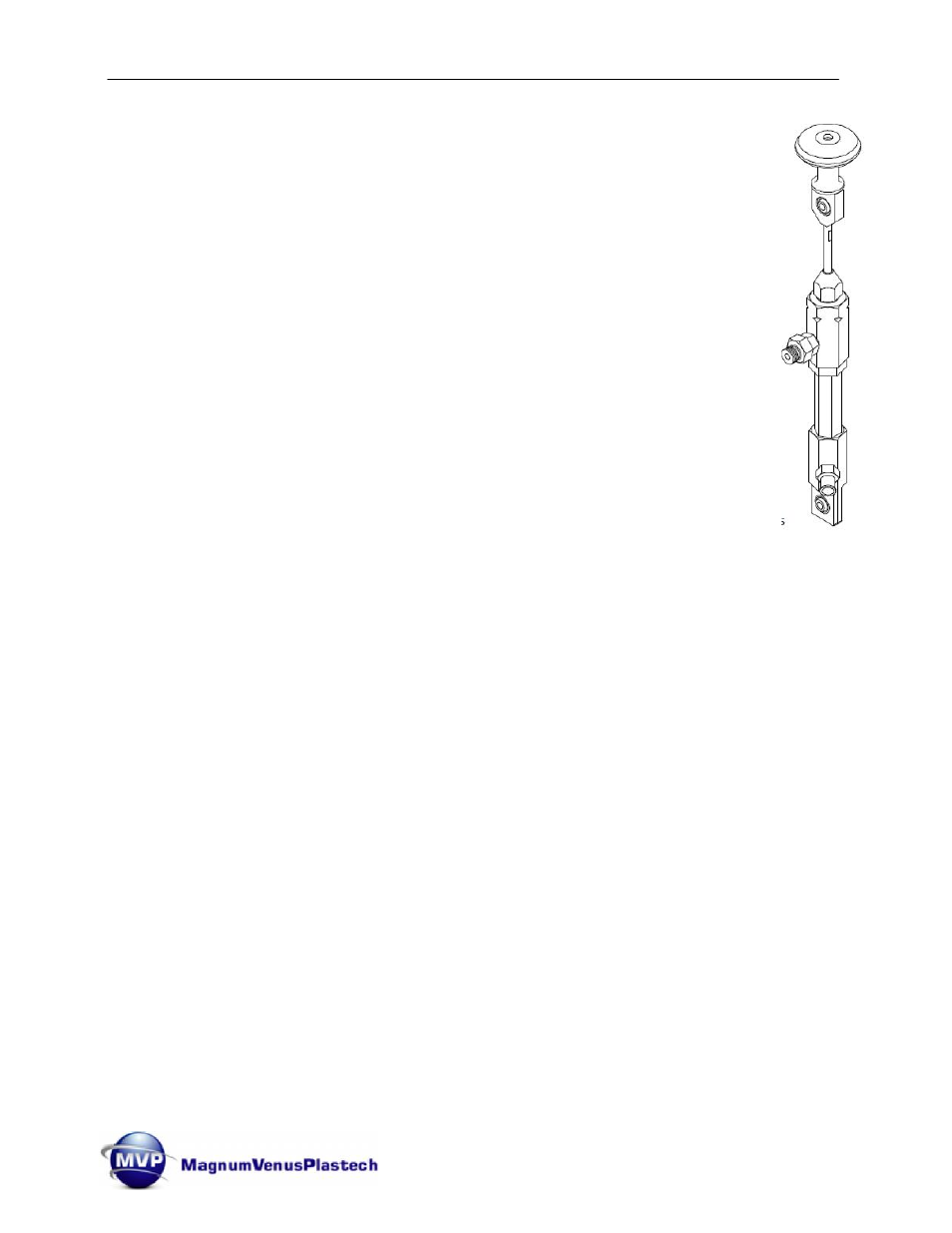

the inlet and outlet ports are offset one flat on hex. (See figure to the right)
4. Tighten the lock nut to the outlet body (15824-3).
Connect Catalyst Pump Assembly
NOTE: If you are continuing to service the rest of the Pumping system, do not connect
the catalyst pump assembly until after you have serviced the pump and accumulator. If
you have finished servicing the pump and want to connect the catalyst pump assembly,
follow the procedures below.
1. Reattach the catalyst pump assembly to the slave arms with the upper quick pin
assembly (52106-3).
CAUTION: Be sure the quick pins are in the same hole on both the upper and lower slave
arms.
2. Reattach the priming knob (50100-1) to the top of the bearing block assembly (50210-3).
3. Cut ½ inch (1.3 cm) off the end of the inlet hose that attaches to the inlet body’s tube
fitting (4104-8-1).
4. Connect the inlet hose between the catalyst jug and the pump.
5. Connect the remaining hoses.
