6. Insert the Diaphragms (MPH-5010) into the Upper and Lower Valve Blocks with
the outside leading edge of the Diaphragms facing out. Push the Diaphragms all
the way down into the Valve Block bore.
7. Install the Valve Exhausts (MPH-5009) onto the Upper and Lower Valve Blocks.
One side of the Valve Exhausts has three holes, one of the holes must line up with
the machined holes in the Upper and Lower Valve Block. (See Figure 4)

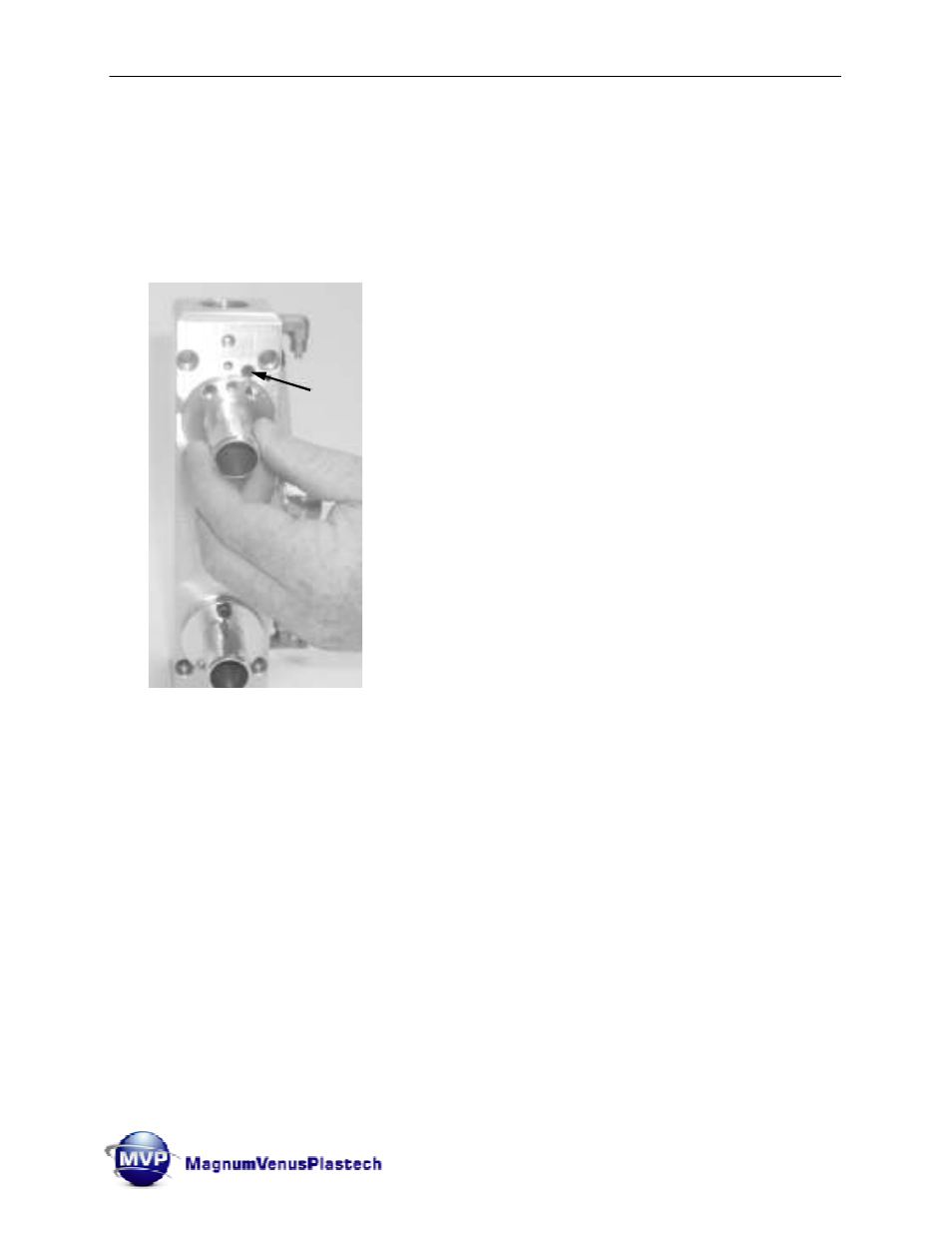

Figure 4:
Do not block the hole in the valve block when installing the
valve exhaust.
8. Install the two Socket Head Cap Screws (FCS- 04C-08-SS) into each of the two
Valve Exhausts and snug tight.
9. Install Valve End Caps (MPH-2521) into the Upper and Lower Valve Blocks and
lightly snug.
Do not block hole
