Magnum Venus Plastech UltraMAX VHPC-1000 Series User Manual
Page 22
VHPC-1000 Metering Pump Manual
Rev. 05/2012
Page | 22
18. Align the Outlet Body (4101-14-1) so the outlet port is one hex flat to the left of the inlet
port of the Inlet Body (4101-7-1). See Fig. 4.1.
19. Tighten the Lock Nut (4101-1-1) up against the Outlet Body to secure it in position.
The Metering Pump Assembly is Complete.

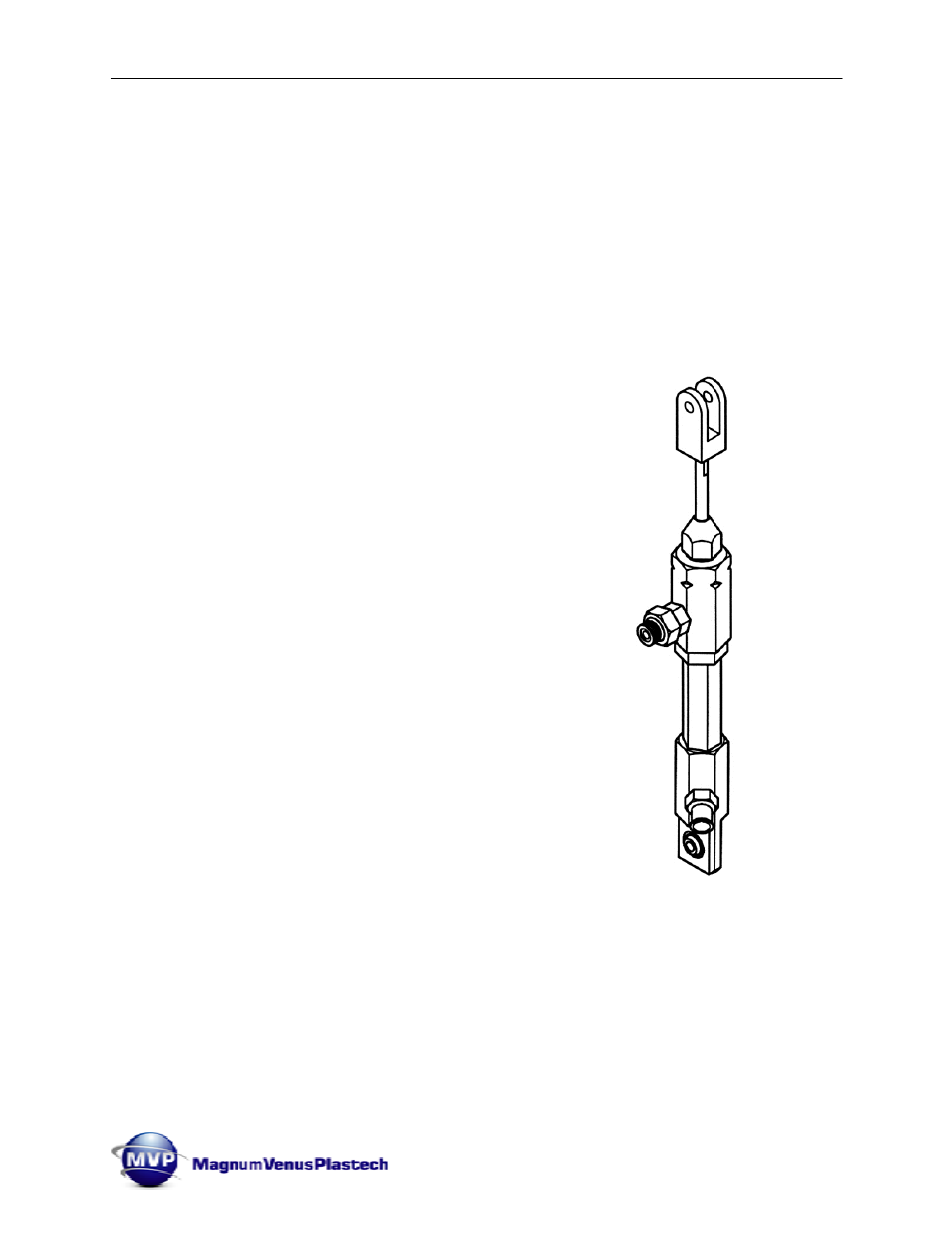

Offset intake and outlet
ports one flat hex as
shown in figure.
Fig. 4.1
