Magnum Venus Plastech PATRIOT TESTING & ADJUSTING User Manual
Page 20
Patriot - Testing & Adjusting Manual
Rev. 01/2013
Page | 20

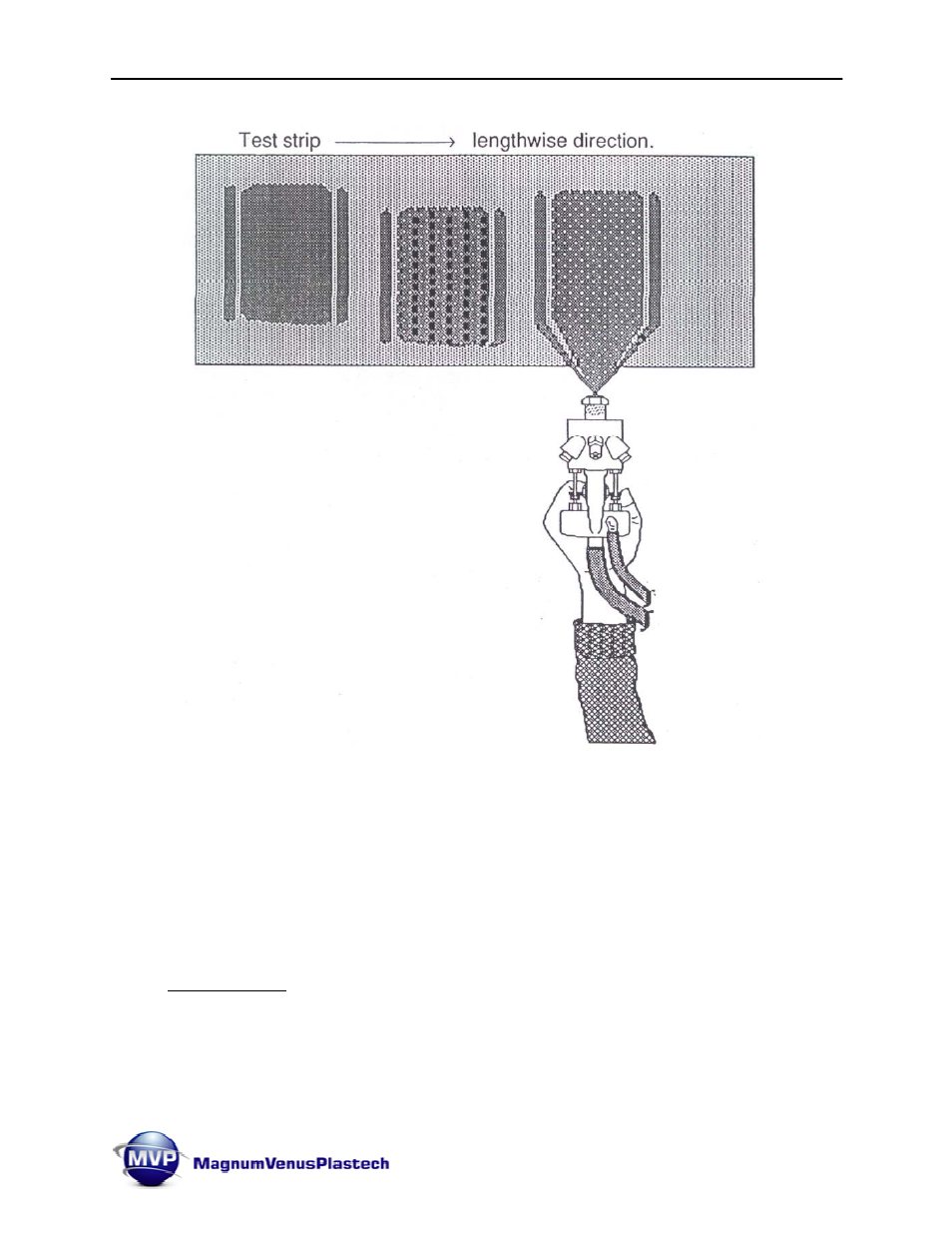

4. Flush the gun into an appropriate container after every test shot.
Note: It may be that 20psi will be adequate pressure to establish a fan pattern.
5. If the first test shot had an established fan pattern, back off 5psi and shoot
another pattern. Keep backing the pressure off until the unit no longer produces
a fan. Then increase the operating pressure until there is just enough to form a
soft-looking spray fan.
6. If the pressure was not adequate to form a well-defined fan pattern, increase the
main pressure by 5psi and do another short test spray. Repeat step 6 until a
well-defined spray pattern has been obtained, then follow step 5.
Note: Photocopy page Appendix A to make written notes about the operating
pressure and material temperatures that finally produced a well-defined spray fan
pattern.
