Metering Pump Assembly:
Have the Seal Kit (VHPC-1100-SK) and items that need to be replaced available.
1. Outlet Body: Install the three Rod Seals (VHPC-1110)
into the Outlet Body (VHPC-1117). The Seals should go
o-ring facing down one on top of the other. Push the
stack down into the outlet body.
2. Install Packing Nut (VHPC-1107) into the top of the outlet
body and hand tighten.
3. Thread the Clevis or Bearing block onto the end of the
Piston Rod (VHPC-1118) and position the clevis or
bearing block into the vise with the Piston Rod (VHPC-
1118) facing up.
4. Take the assembled Outlet Body and with a twisting
motion push it onto the Piston Rod. The Packing Nut (VHPC-1107) should go on
first so that it is pointing down. A little force may be required to go through the
seals.
5. With the end of the Piston Rod (VHPC-1118) sticking out of
the outlet body apply a small amount of removable thread
lock to the threads of the piston rod. Install the Spring
(04009-1) into the end of the piston rod. Put the Piston Ball
(9201-1-14) on top of the spring and screw the Piston Body
(VHPC-1111) onto the piston rod. Use caution not to drop the
piston ball as it can become damaged.
6. Slide the Piston Seal (VHPC-1122) onto the piston body with
the cup side facing down. Screw the Seal Retainer (VHPC-
1112) onto the piston body. Remove from the vise and set
aside for now.

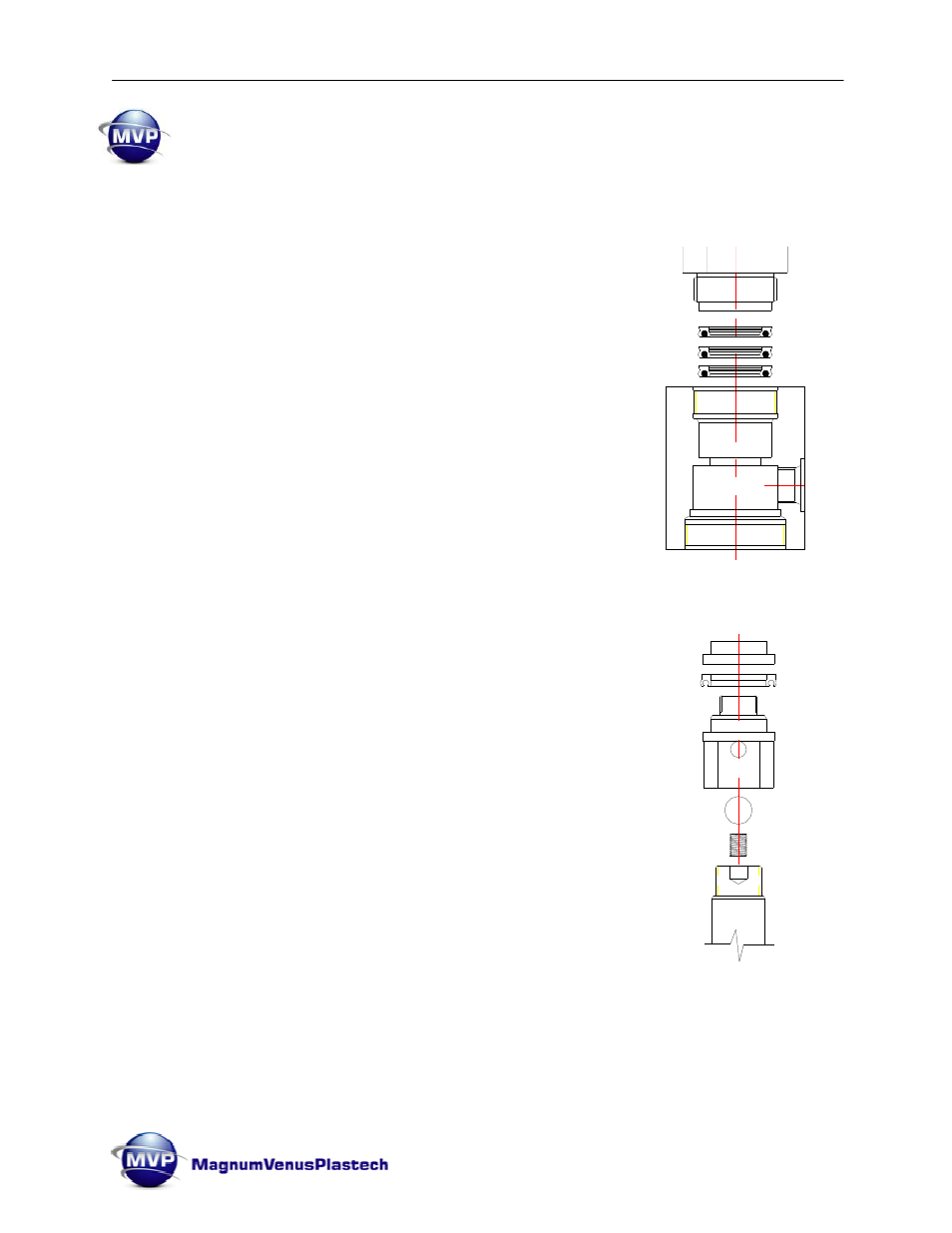

Seal Retainer
Piston Seal
Piston Body
Piston Ball
Spring
Piston Rod
Packing Nut
Rod Seal Set
Outlet Body
