V-15 & V-30 Valves
Flanges
Flanges are offered in 3 and 4 inch BSPT and NPT sizes
and weld types. Material of construction is aluminum.
Teflon, Viton, and Buna seals and gaskets are available.
Linkage and Valve Handles
Valve handle and linkage assemblies (Figure 3) are
accessories used when normal manual ON and OFF
valve operation is desired. Different handle and linkage
configurations can be ordered separately for field
installations.
There are two valve handle options. When using a
mechanical preset, the 40984 curved handle (provided
as part of the linkage assembly) is used with both the V-
15 and V-30 valves. For applications without a preset,
the A3750 faucet valve handle kit is used.
Unlike the V-7 Valves, the V-15 and V-30 linkage
assemblies come complete with the 40984 handle. The
available Linkage Assemblies for V-15 and V-30 valves
are listed in the table below.
Accessories
Installation
New Installations
When ordered with a new metering system, the V-15 or
V-30 Series Valve is supplied mounted to the outlet side
of the meter as shown in Figure 4. A liquid line must be
connected to the flange on the outlet side of the valve or
to the accompanying check valve. The flange connection
on the V-15 valve is 3” BSPT or NPT. The flange
connection on the V-30 valve is 4” BSPT or NPT. Weld-
type flanges are available as an option.

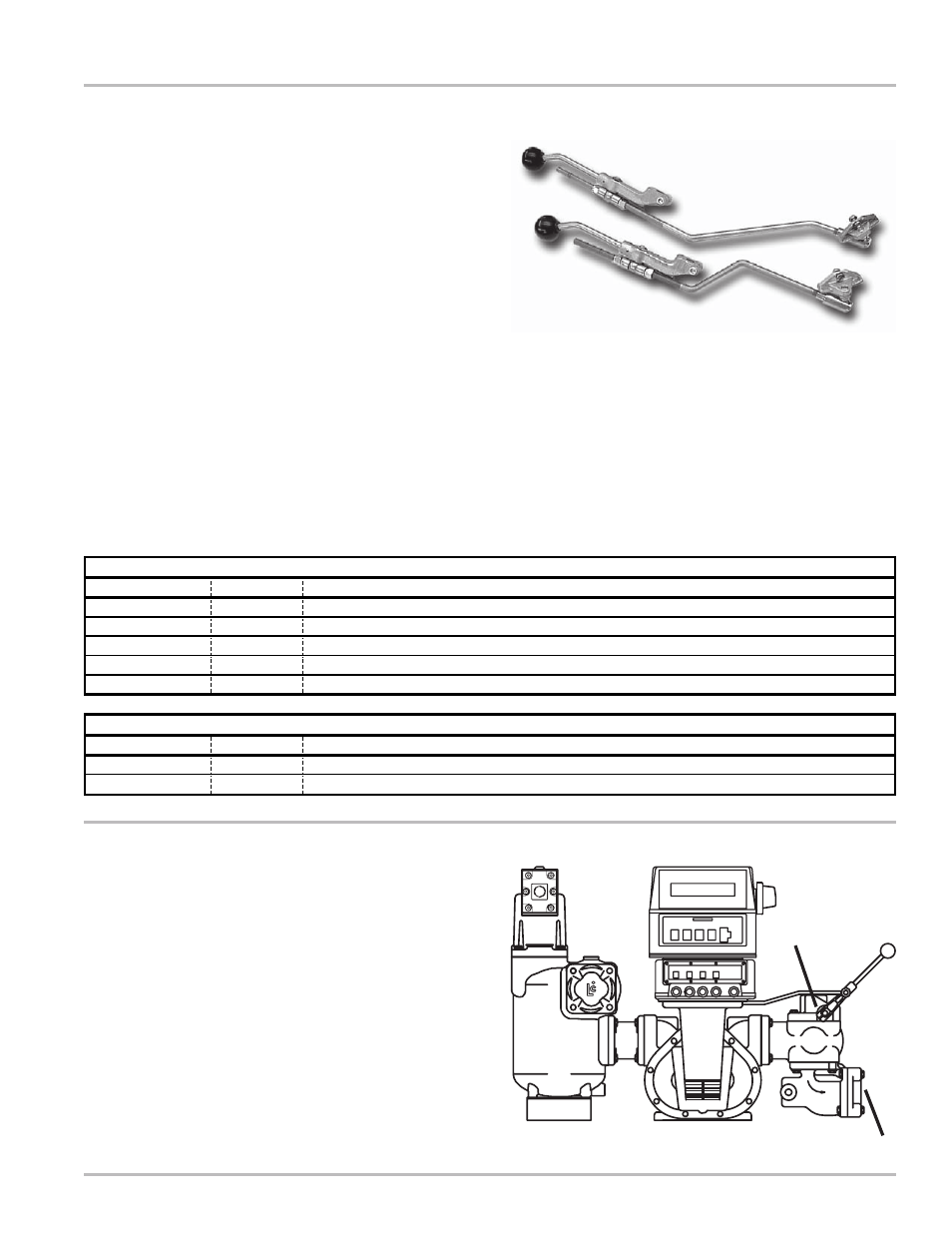

Figure 3: Linkage Assemblies
Part Number Style Description
A3710 Offset Linkage Assembly for LC Preset
A3711 Offset Linkage Assembly for LC Preset
A3712 Offset For use with M-15 with a V-R Preset & Microswitch
A3718 Offset For use with M-30 Class 7 Meters with LC Preset
A3730 Offset For use with M-15 through M-60 & MS-15 through MS-75 Spec with LC Preset
Part Number Style Description
A4710 Offset Linkage Assembly for LC Preset
A5712 Offset For use with M-60 and MS-30 without a Counter Extension
V-15 Valve Linkage Assemblies
V-30 Valve Linkage Assemblies
Figure 4: V-15 Valve Installed
V-15 Valve
Valve Outlet
