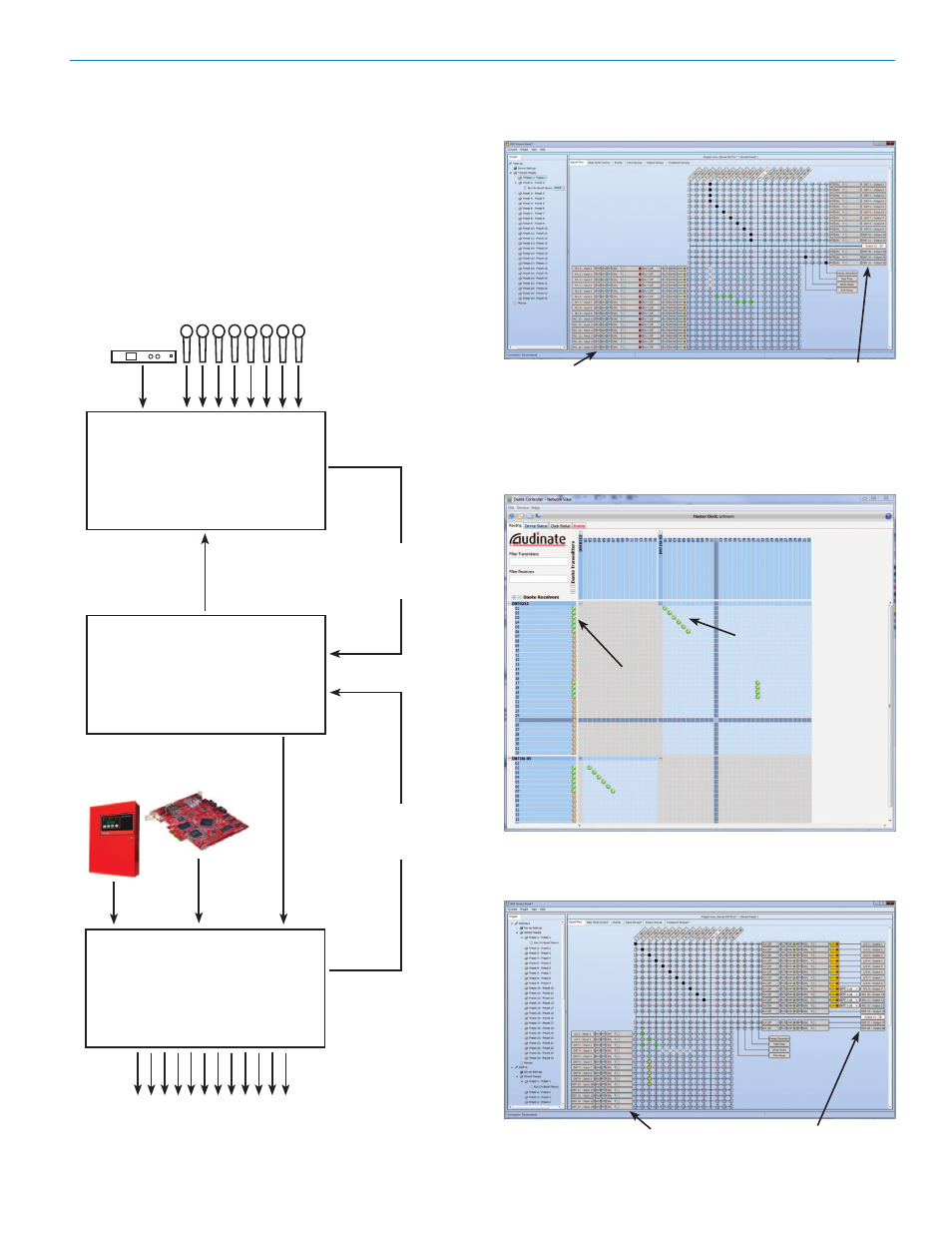

Signal Routing
Dante Matrix
DNT16i
Internal Matrix
DNT0212
Internal Matrix
Local audio sources
Analog audio outputs
to recorders and
sound systems
Inputs from Dante
receive channels
Inputs
from Dante
receive
channels
Each DNT processor has an internal matrix that can
connect to local audio devices and Dante transmit and
receive channels. The mixes created in this matrix are
assigned to Dante transmit channels so they are then
available to any Dante enabled device on the network.
Every device on the network can subscribe to any one
or more of the transmit channels.
The signal flow screen of the DNT16i processor pro-
vides an overview with access to individual settings
directly or by double clicking on an element.
Inputs Outputs
The outputs of the internal matrix are assigned to
Dante transmit channels. The Dante matrix is used for
routing only, with no mixing or signal processing, so
each transmit channel can be assigned to only one
processor output.
Final mix outputs from
DNT processors (or
from other devices on
the network)
Inputs to DNT
processors (or other
devices on the network)
The signal flow screen of the DNT0212 processor
provides an overview with access to individual settings
directly or by double clicking on an element.
Inputs Outputs
Final Mixes
assigned to Dante
transmit channels
Final Mixes
assigned to Dante
transmit channels
Local audio sources
