SPNCWB
LECTROSONICS, INC. 6
Controls and Features
Headphone Monitor
Standard 1/4 inch jack and level control. Drives both
channels of stereo headphones.
MCU Recovery (recessed pushbutton)
Used in the procedure to recover from an interrupted
firmware update procedure. See section on Firmware
Update Procedure for details on usage.
USB Port
Standard USB connector for the setup and control from
a computer using Windows XP, Vista or Windows 7 op-
erating system. The USB port is also used for firmware
updates.

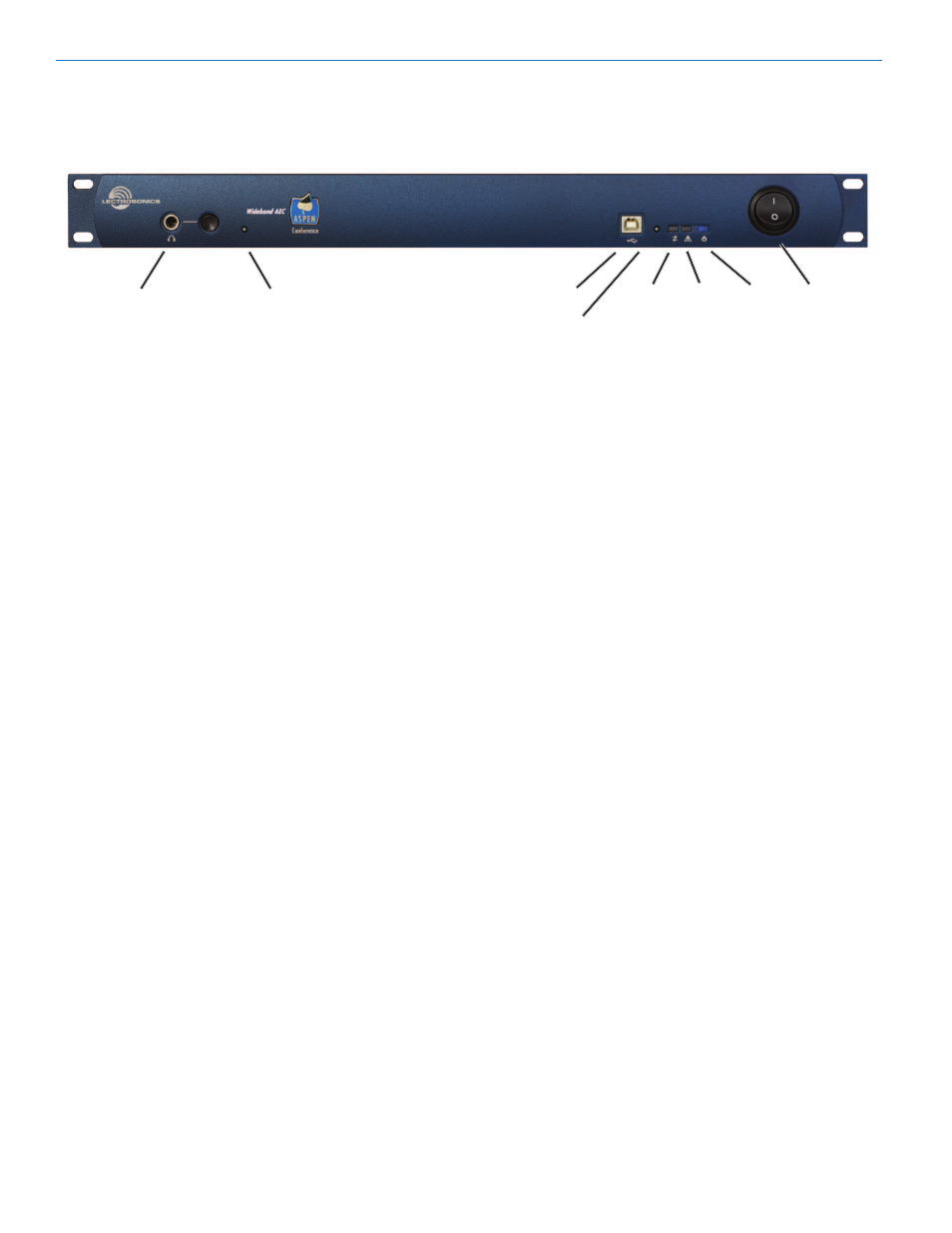

Front Panel
Firmware Update (recessed pushbutton)
Used in the procedure to update the firmware in the
processor. See the section on Firmware Update Pro-
cedure for details.
Status LEDs
• Comm LED - indicates USB, RS-232 and network
communication
• Alert LED - blinks to indicate fault or error
• Alert LED - glows steady in firmware update mode
• Power LED - glows to indicate power ON
POWER
Switch
USB Port Alert
LED
Headphone Monitor Comm
LED
Power
LED
MCU Recovery
recessed pushbutton
Firmware Update
recessed pushbutton
