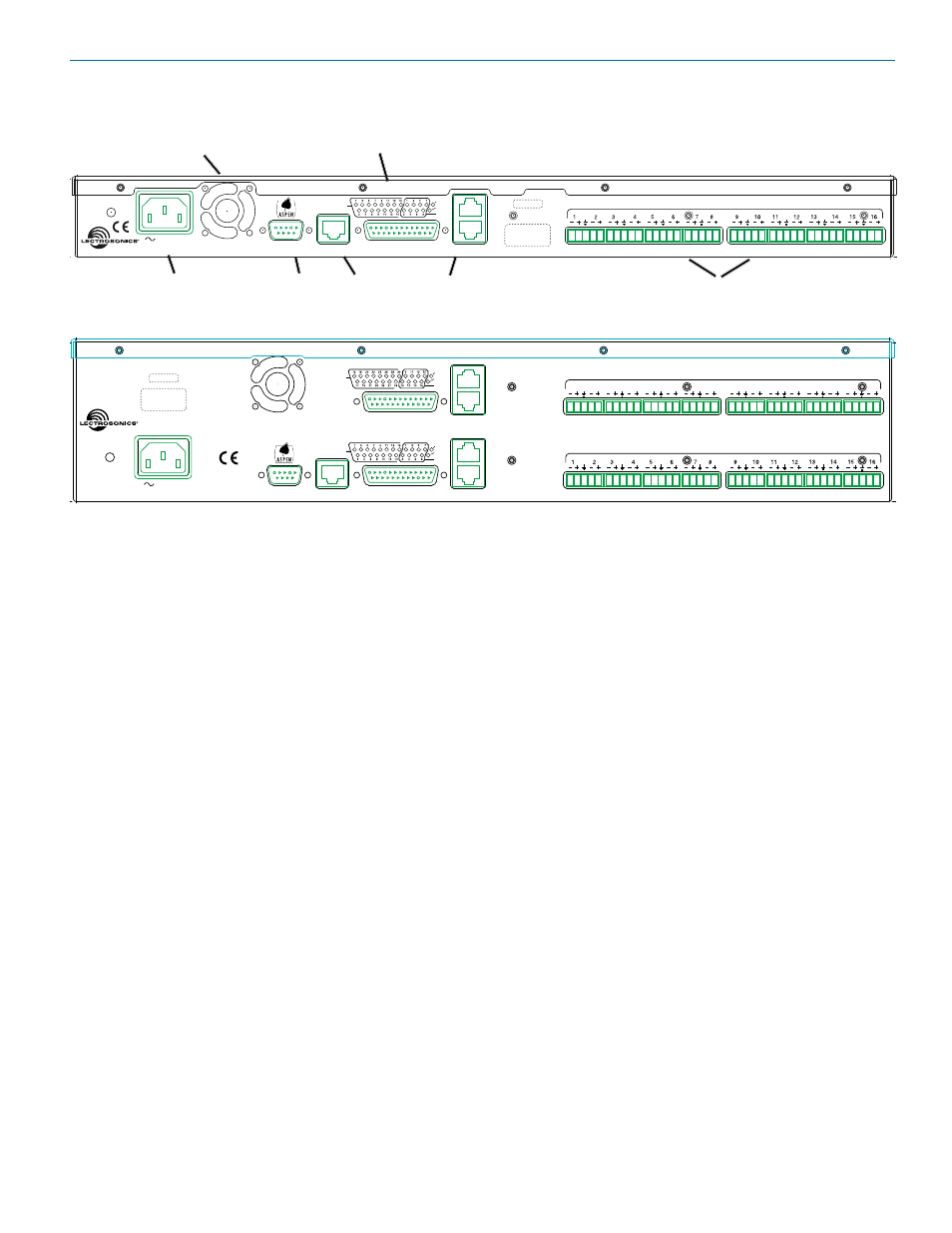

Rear Panel
Power Inlet
Standard IEC 60320 grounded C14 socket.
RS-232 Port
Used for setup and control with computer systems and
remote control devices such as touch panels.
Ethernet Port
Used for remote access, setup and control.
Programmable Input and Output Ports
Programmable inputs or outputs used with pots and
switches to enable control over a variety of parameters
or to indicate the current state of a programmable input
using external LEDs.
Power Inlet
RS232
Serial Port
Programmable Input
and Output Ports
ASPEN
Ports
Mic/Line Inputs
Cooling Fan
Outlet
Ethernet
Port
100-240V
50/60Hz 30W
ASPEN PORTS
ETHERNET
RS-232
SPN 32i
Adaptive Proportional Gain Mixing
US Patent 5,414,776
S/N LABEL
DATECODE
INPUTS
GND
+5V
PROG IN
PROG
OUT
INPUTS
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
GND
PROG IN
+5V
PROG
OUT
ASPEN Bus Data/Audio Ports
RJ-45 jacks carry the audio signals and data between
units stacked together.
Mic/Line Inputs
Balanced analog audio connections with depluggable
Phoenix style connectors.
