Lectrosonics SPN32i - Manual (Page 13)

Installation and Startup Guide
Rio Rancho, NM 13

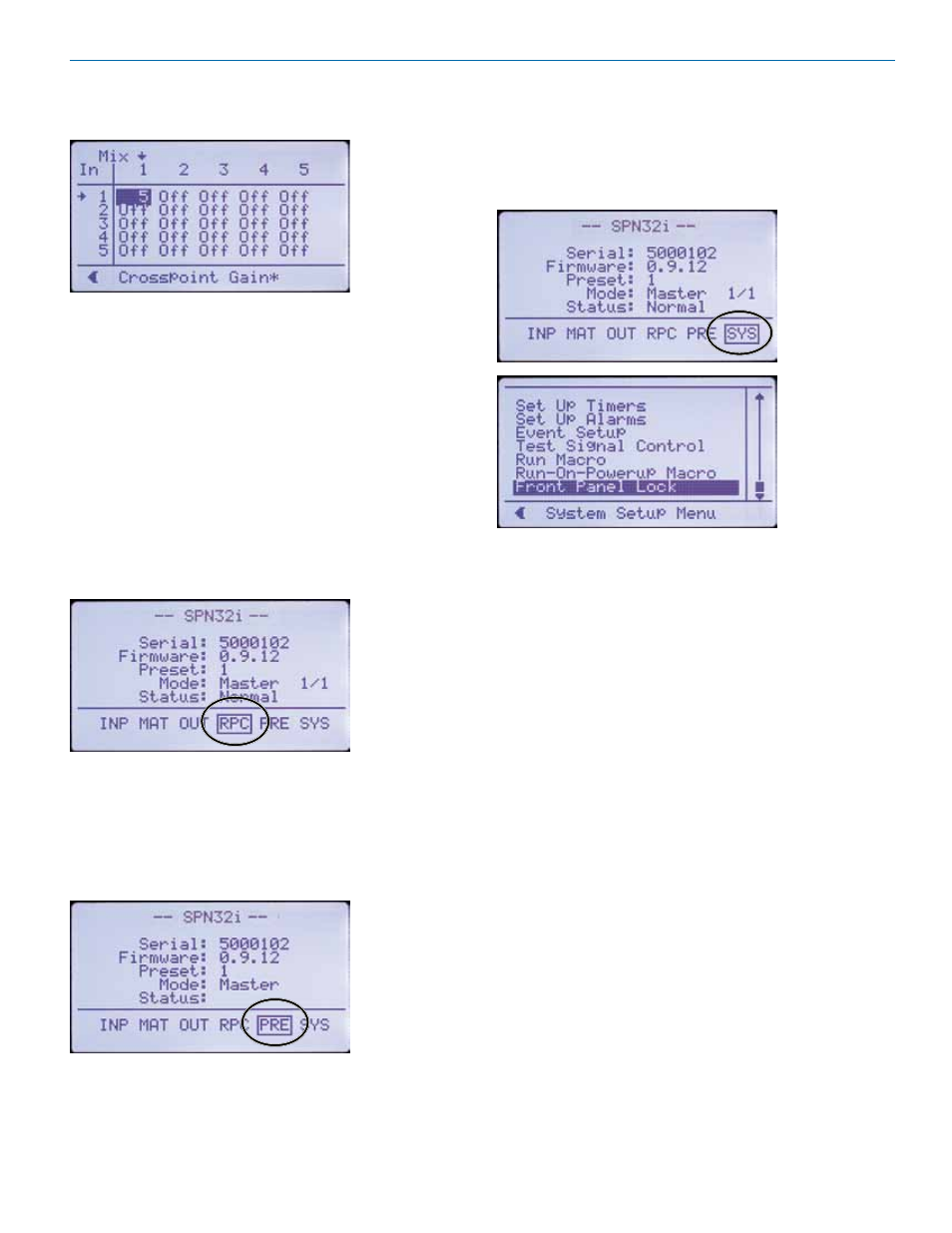

Adjust to the desired value with the rotary control and
press the control to store the value. (the Crosspoint
Gain setting screen is shown here as an example)
After all values have been set, press the LEFT button to
return to the previous menu.
Additional Filters and Processing
After the basic signal flow and levels are established,
further refinements can be added with the extensive set
of signal processing built into the processor. Browse the
menus for inputs and outputs to discover the available
resources.
Rear Panel Controls
Select [RPC] in the Main Window to access a setup
menu to configure external controls such as pots and
switches. While settings can be made with the LCD
interface, it is recommended that you use the software
GUI instead.
Preset Recall and Settings
Select [PRE] in the Main Window to access a setup
menu to store and recall presets and other options to
define preset activities. It is useful for information, how-
ever, it is recommended that you use the software GUI
instead, which will provide access to presets stored on
the computer disk drive.
Global System Settings
Select [SYS] in the Main Window to access a setup
menu for a variety of global settings including head-
phone monitoring, date and time setup, timer and event
programming, front panel lockout, network interface
settings and others.
