UM400

Microphone Cord Termination

Caution: When wiring the connector, do not

use the connector body for any electrical

connections. A common mistake is to use

the connector body as an audio ground. The

connector body is already used as an RF

ground on VHF models and no other use is

permitted.

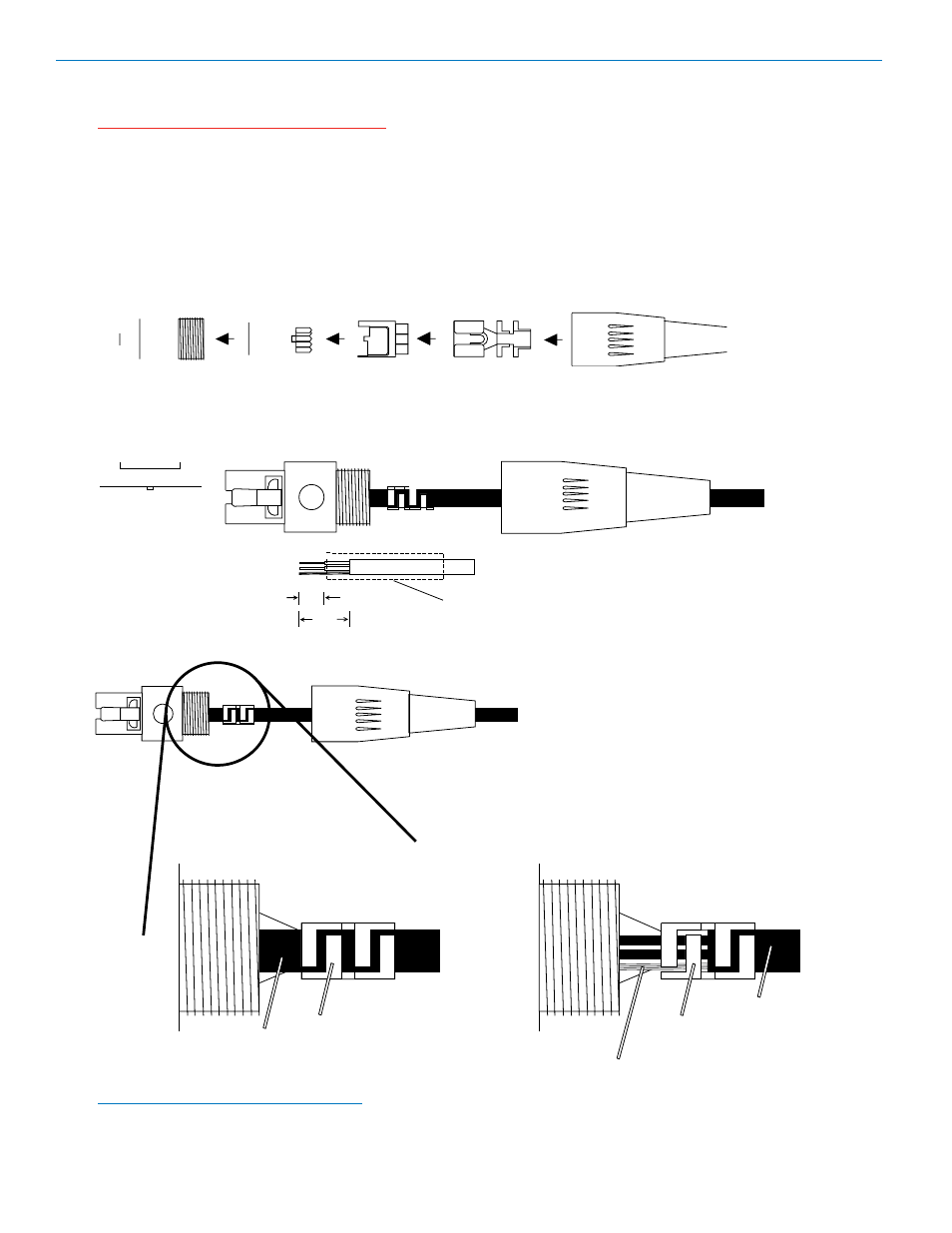

TA5F Connector Assembly

Mic Cord Stripping Instructions

VIEW FROM SOLDER

SIDE OF PINS

0.3"

0.15"

Heatshrink
Tubing

Caution!
Do not allow the shield wire to touch any
metal part of the connector shell.
The shield wire is the antenna on VHF
models and poor operating range will result.

Crimp

Tabs

Rubber

Insulation

Crimp

Tabs

Rubber

Insulation

This is the correct way.

Don't do it this way!

Shield Wire

NOTE: This termination is required on VHF

transmitters and will still work fine on UHF

transmitters.
