UHF Wireless Digital Hybrid TM Receiver
TO REPLACE THE BATTERIES
Lift and open the bottom battery door cover with your
thumb, rotate the door until it is perpendicular with the
case and allow the batteries to fall out of the compart­
ment into your hand. It is difficult to install a battery
backwards. Observe the large and small holes in the
battery contact pad before inserting new batteries.
Insert the contact end of the battery first, making sure
the contacts are aligned with the holes in the contact
pad, and then swing the door closed. You will feel it snap
into place when it is fully closed.
CAUTION
Lithium batteries will expand and swell if allowed to go into a deep
discharge. Be sure to remove lithium batteries as soon as possible
after warnings. If lithium batteries are allowed to fully discharge
while still inside the battery compartment, they will be very difficult
to remove.
Stuck lithium batteries can be avoided by removing the label
wrapping around the battery before use. This will allow the battery
to swell but will still leave enough room in the compartment for the
battery to fall out normally.

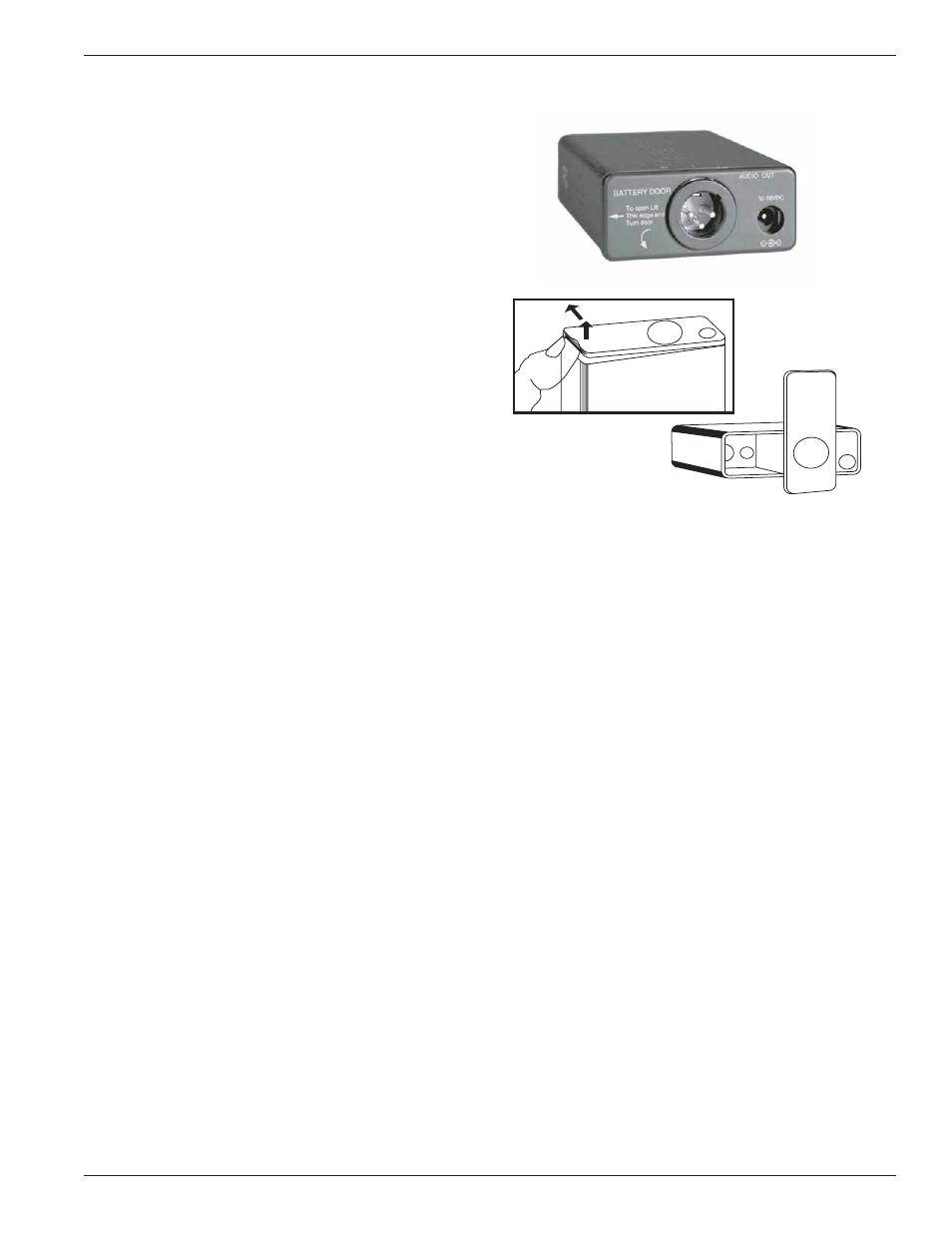

To open the battery
compartment door, push the
door up and away from the
case with your thumb, then
swing open.
1
2
