Lectrosonics D4 System - Manual (Page 7)

4-channel Digital Wireless System
Rio Rancho, NM, USA 7

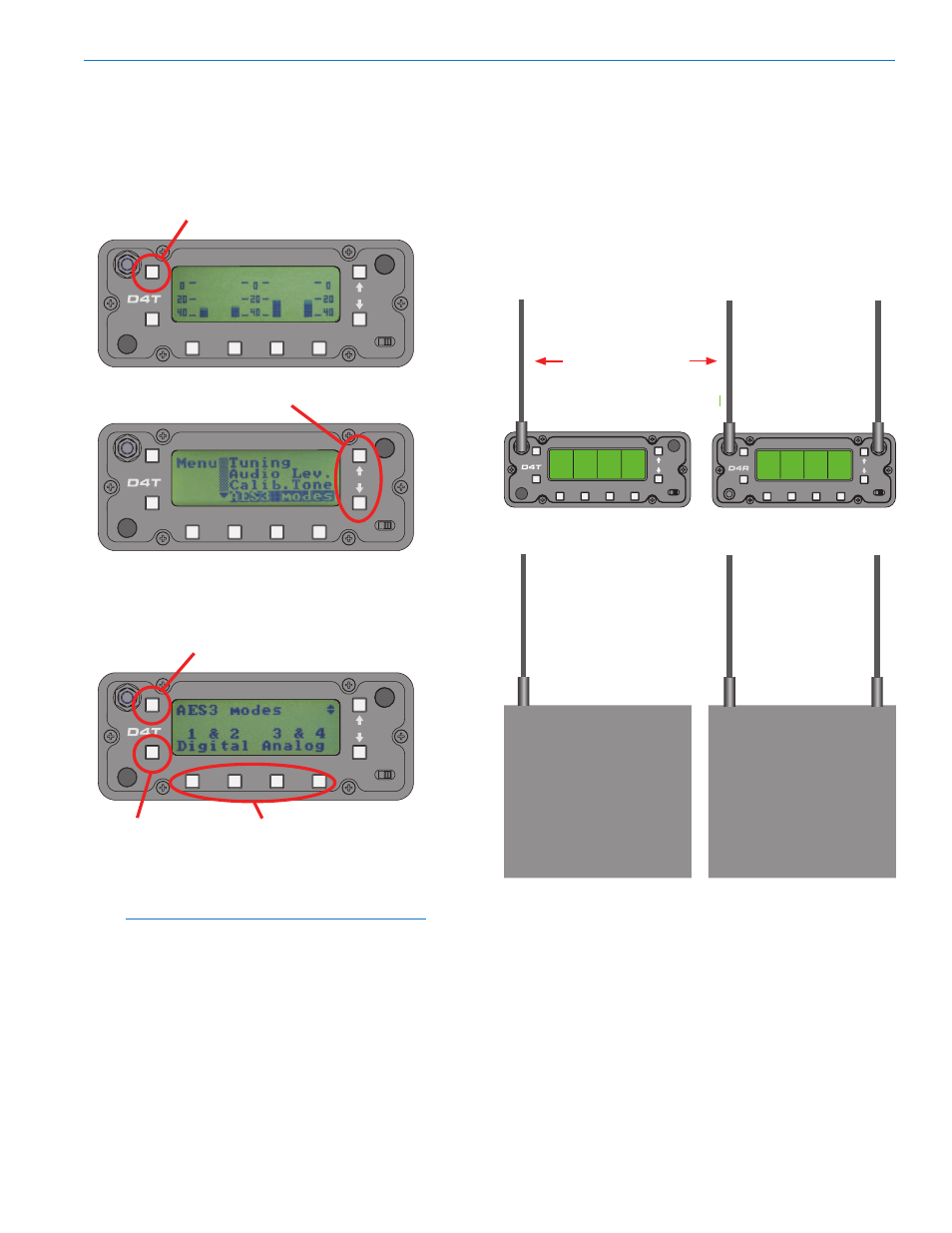

Navigating the LCD
Navigation through setup screens is the same on the
transmitter and receiver. The Main Window will display
audio levels for all active channels while the system is
operating.
Press the FUNC button to enter the setup menu.
FUNC
BACK
OFF ON
1 2 3 4
DIGITAL TRANSMITTER
Then press the UP and DOWN arrow buttons to select
a menu item.
FUNC
BACK
OFF ON
1 2 3 4
DIGITAL TRANSMITTER
Press the FUNC button to enter the setup screen for
the selected item. Then use the UP and DOWN arrow
buttons to select a value or mode.
FUNC
BACK
OFF ON
1 2 3 4
DIGITAL TRANSMITTER
BACK
button
FUNC
(function)
button
CHANNEL SELECT
buttons
Press BACK once to return to the Menu or twice to
return to the Main Window.
Note: In setup screens where individual channel
selections are made, press the CHANNEL
SELECT button under the desired channel, then
use the UP and DOWN arrows to adjust the
setting or value.
Antenna Placement and
Orientation
The supplied antenna is a center fed half-wave type
with a right angle elbow and rotating mount. For most
applications, the whip antennas should be vertically
oriented to provide a circular coverage pattern. In other
orientations, the transmitter antenna should be paral-
lel with and not directly above or below the receiver
antennas.
FUNC
BACK
OFF ON
1 2 3 4
PHONES
DIGITAL 4 CHANNEL RECEIVER
FUNC
BACK 1 2 3 4
DIGITAL 4 CHANNEL TRANSMITTER
OFF ON
Maximum signal
strength is
perpendicular to
the antenna whip
Transmitter antenna should be parallel to receiver antennas
