Lectrosonics D4 System - Manual (Page 5)

4-channel Digital Wireless System
Rio Rancho, NM, USA 5

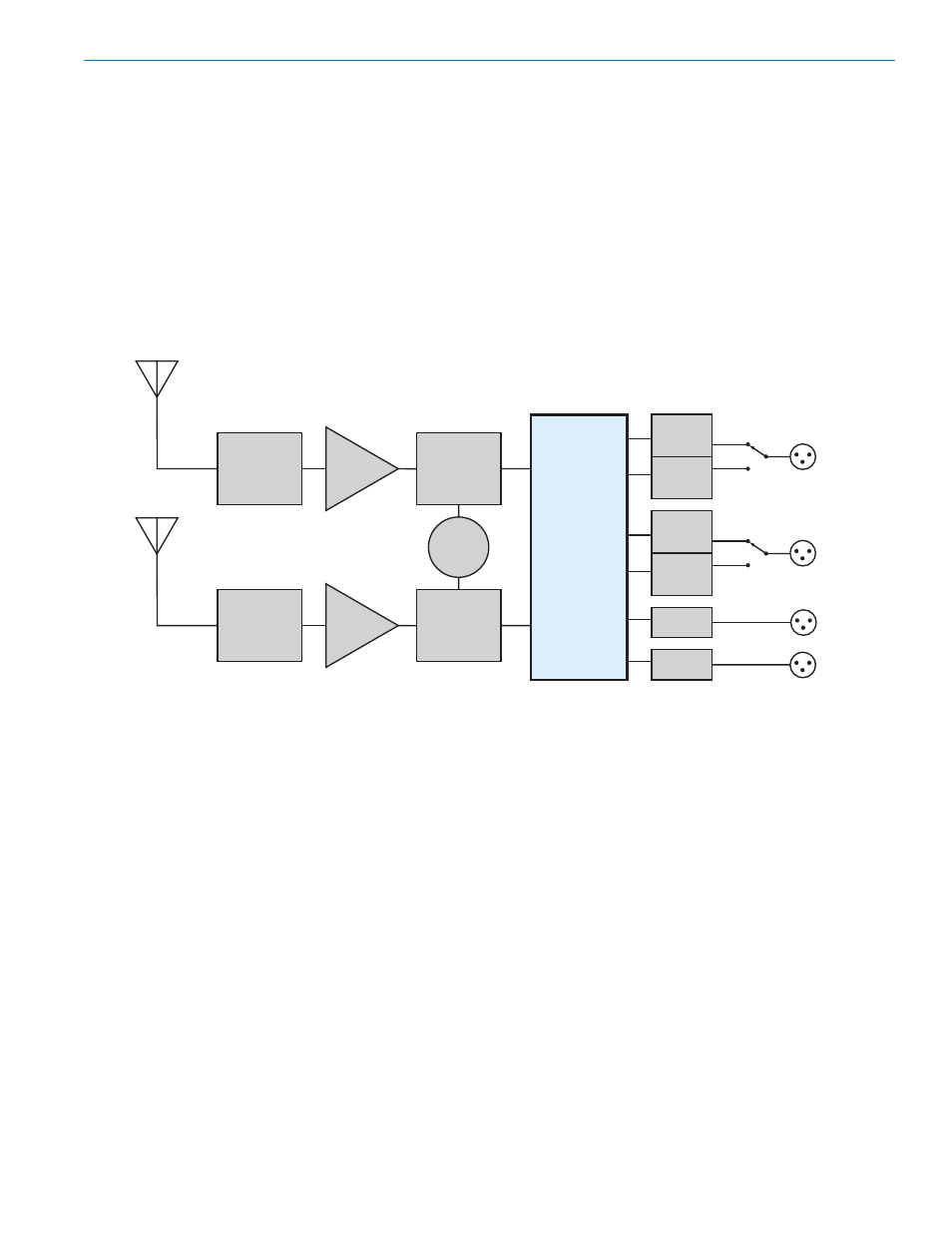

D4R Receiver
The receiver employs two complete RF sections for
true diversity reception. The signals from both anten-
nas are independently decoded and error-corrected,
and the diversity system uses all digital data and tim-
ing reference information from both antennas in order
to reconstruct the original audio signals. Audio outputs
may be configured for analog balanced or AES/EBU
digital signals.
FILTER
FILTER
LOW
NOISE
AMP
LOW
NOISE
AMP
OSC
900 MHz
RF
DEMOD
RF
DEMOD
DIGITAL
BASEBAND
DECODER
and
DIVERSITY
SYSTEM
24-bit D/A
(analog)
AES/EBU
OUT
(digital)
24-bit D/A
(analog)
AES/EBU
OUT
(digital)
24-bit D/A
(analog)
24-bit D/A
(analog)
TA3M
OUTPUTS
1
2
3
4
