LEADER LV7770 User Manual

Page 2

LEADER INSTRUMENTS CORPORATION

11095 Knott Avenue, Suite B - Cypress, CA 90630

www.LeaderAmerica.com

Revision 08/13

AVAILABLE OPTIONS:

LV5770-OP03A COMPOSITE INPUTS OPTION: Provides two composite inputs with switched monitor output for

Picture, Waveform and Vector test screens for NTSC and PAL composite systems. It accepts analog Tri-level Sync

& Black Burst signals for waveform display.

LV5770-OP09 EYE PATTERN OPTION: Provides eye & jitter measurements for 3G, SD/HD SDI inputs. SMPTE

recommended filters and auto-measurement is provided.

LV5770-OP42 ANALOG AUDIO OPTION: Provides 8 channels of analog audio I/O. Selected digital audio (discreet

or embedded) is converted to analog audio.

LV7770-OP70 8ch DIGITAL AUDIO OPTION: Provides additional 8 channels of AES/EBU I/O through selectable

menu. Outputs embedded audio as discreet AES/EBU.

LV7770-DOLBY OPTION: Adds Dolby Digital Support and Dolby Metadata Analysis.

DIMENSIONS

(Width x Height x Depth): 19” x 1 3/4” x 17 3/4” (426mm x 44mm x 460mm)

WEIGHT:

11 lbs (approx. 5 Kg)

(a) UNIVERSAL POWER SUPPLY:

90-250 vac (50-60 Hz).

(b) 8-CH DIGITAL AUDIO AES/EBU IN/OUT:

Provides 8 channels of AES/EBU inputs/outputs.

Remote connector provides remote control of preset selections.

(d) ETHERNET CONNECTIVITY:

Ethernet remote control, web access and remote reporting.

(e) XGA OUTPUT:

Standard DVI-D Computer Monitor Rasterizer Output emulates built-in screen display.

(f) HDMI OUTPUT:

A Picture-Only output can send the selected SDI input source to an external HDMI monitor.

(g) SDI OUTPUTS:

Reclocked output signals generated from the signals received through the SDI inputs. These are

picture only and not rasterized SDI outputs.

(h) SDI INPUTS:

2 Serial Inputs support 3G, SD/HD SDI operation (auto-select). Picture, Waveform, Vector, CINELITE

II, 5-Bar, Status Displays.

(i) ANALOG AUDIO:

Provides 8 channels of Analog Audio I/O.

(j) COMPOSITE INPUTS:

Accepts 2 Composite Inputs and provides Switched Monitor Output of the selected composite

source.

(k) EXT REF INPUT:

EXT REF Loop-through Input accepts Standard Tri-Level Sync and Black Burst.

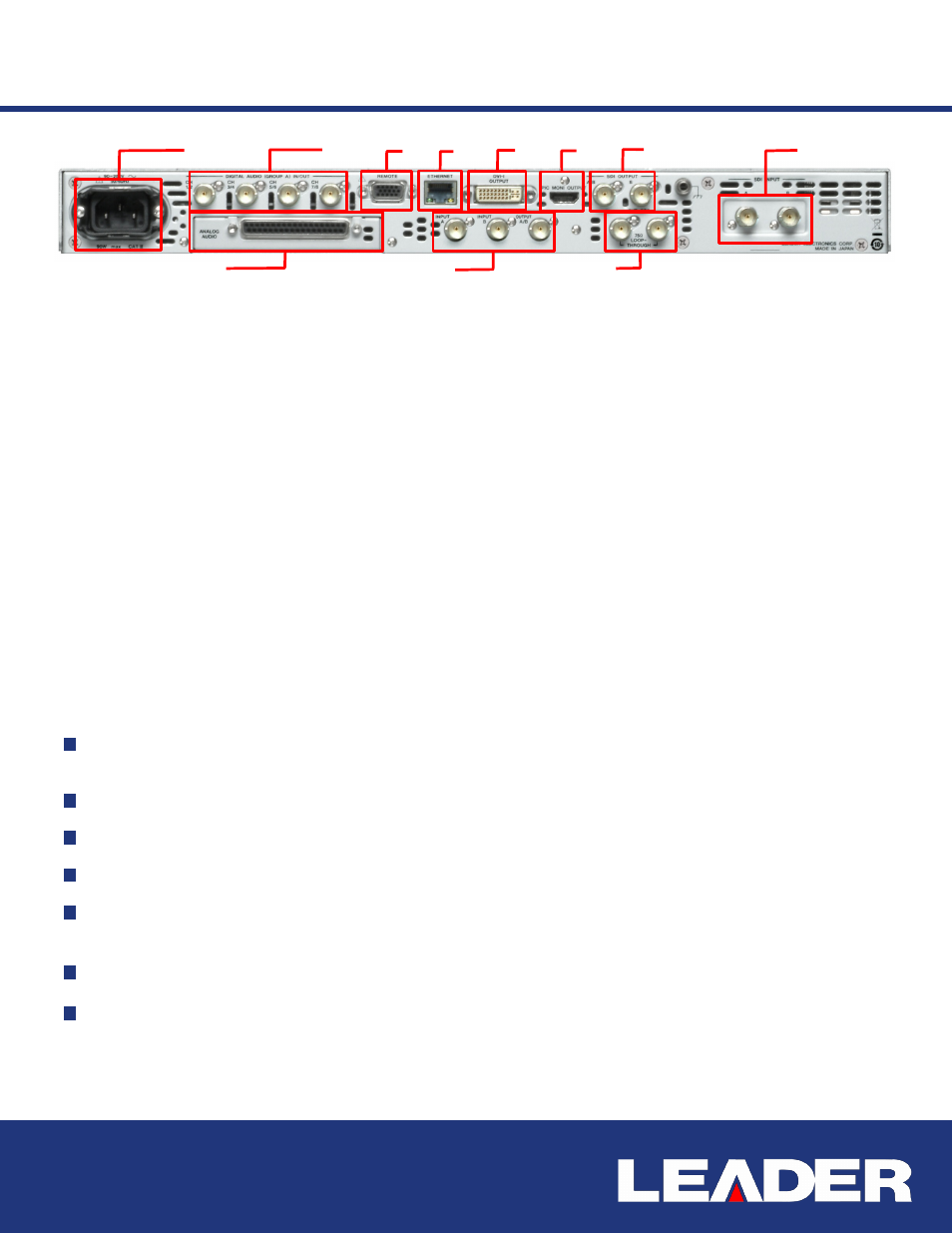

Rear Panel shown with Eye & Jitter Pattern Option, Analog Audio Option, Digital Audio In/Out Option and Composite Inputs Option

AVAILABLE CONFIGURATION:

LV7770E: Multi SDI rasterizer with Eye Pattern & Jitter measurement board (option 09).
