The LV 58SER04 is an input unit that receives MPEG-2
TS (DVB-ASI) signals and displays video/audio informa-
tion on the LEADER LV 5800 (Multi Monitor). Because it
contains an MPEG-2 video decoder and audio decoder,
it can display the signal using the video signal waveform
display, vectorscope display, picture display, and audio
display. The LV 58SER04
A can also be used to monitor
errors defined by ETSI ETR-290, to display PAT and
PMT data, and to display the TS bit rate and the bit rate
for each PID. These features are ideal for continuous
monitoring of MPEG-2 TS signals in broadcasting sta-
tions and similar facilities.
In addition, the LV 58SER04 can do the following when
combined with other units.
• Eye pattern display of DVB-ASI signals (when com-
bined with the LV 58SER02).
• Lissajous and level displays of audio signals (when
combined with the LV 58SER40 A ).
FEATURES
DVB-ASI Input Connector
The unit comes with one DVB-ASI input connector.
Video Decoding
Decodes compressed video data on the MPEG-2 TS
(MPEG-2 Video 4:2:2, 4:2:0) and displays a video signal
waveform, vectorscope, or picture.*
1
Audio Decoding
Combine with the LV 58SER40
A
(DIGITAL AUDIO unit)
to decode audio data on the MPEG-2 TS and show
Lissajous, sound image, and level meter displays as well
as transmit digital audio signals.
The decodable audio data types are MPEG-2 AAC,
Dolby*
2 Digital (AC-3)* 3 , and LPCM (SMPTE 302M)
PID Search
Video and audio search for PID automatically.
Error Detection
Monitors and displays ETSI ETR 290 priority 1 and 2 er-
rors.*
4
Status Display
Displays packet bit rates and measures PCR jitter.
Displays PAT, PMT, and a selected packet dump.
Eye Pattern Display
Combine with the LV 58SER02 (EYE PATTERN unit) to
display DVB-ASI eye patterns.*
5
*1 Cannot descramble broadcast scrambling. May not be
able to decode all MPEG-2 data formats.
*2 Dolby is a trademark of Dolby Laboratories.
*3 When decoding Dolby Digital(AC-3), Dolby E option is
necessary to LV 58SER40
A
(DIGITAL AUDIO)sepa-
rately.
*4 There are some limitations on the error detection feature.
*5 Jitter cannot be displayed even if the LV 58SER02 is
used.

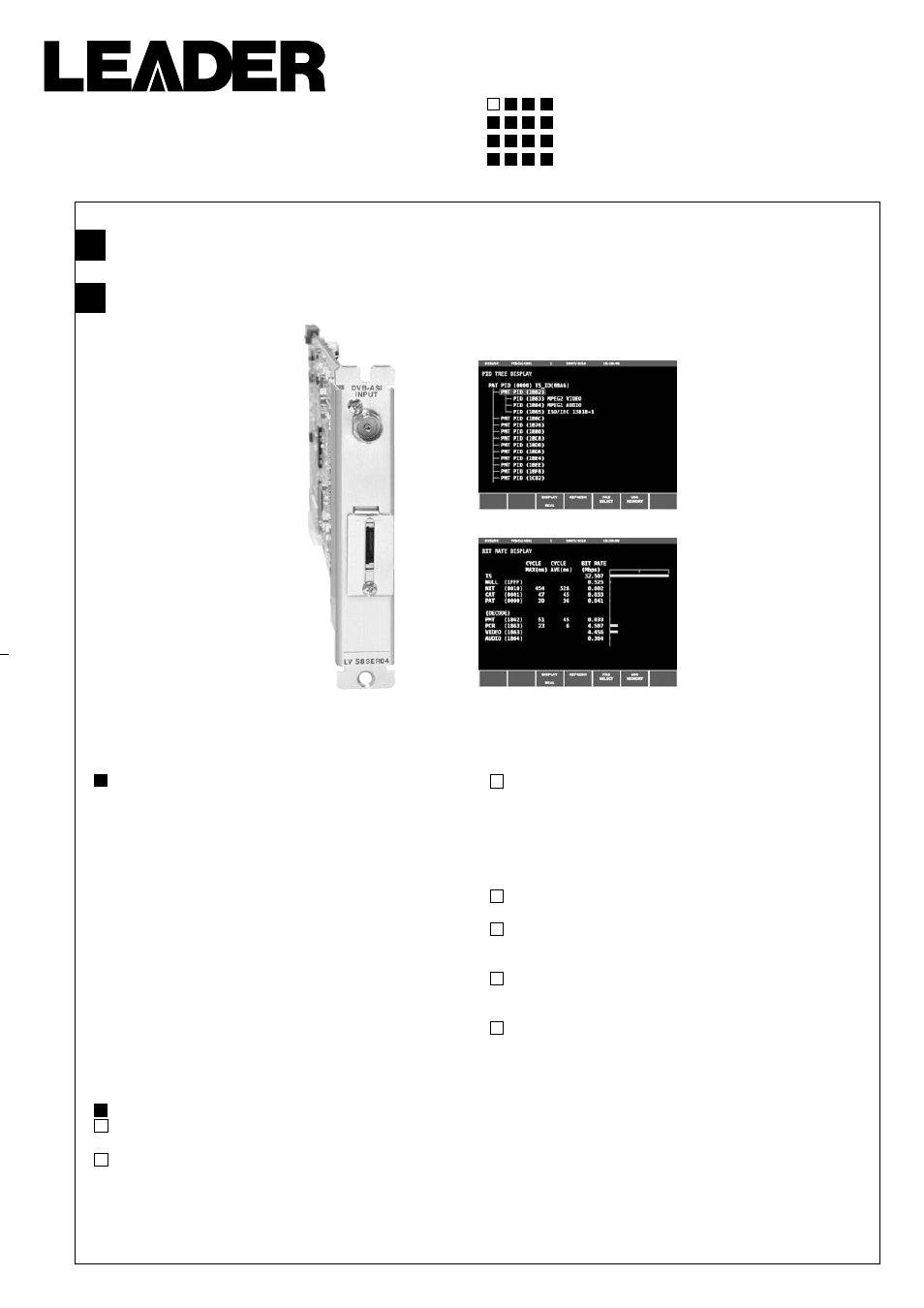

MPEG DECODER
LV 58SER04
Continuous monitoring of MPEG-2 TS signal is possible.
1
2
3
5
4
6
7
BIT rate display
PID tree display
