Measured Signal:

Composite video signal (NTSC/PAL)

Supported Standards:

SMPTE 170M and ITU-R BT.470

Input

Composite Video:

Select A or B

Input Connector:

BNC connector

Input Impedance:

Input Return Loss:

≥ 30 dB (up to 6 MHz)

Maximum Input Voltage:

±5 V (DC + Peak AC)

Output

Composite Video

Output Signal:

Active

Output Connector:

BNC connector 1 system 1 connector

Output Impedance:

Output Amplitude:

1 Vp-p

± 5 %

Frequency Characteristics:

± 5 %

25 Hz to 5 MHz

+5 % to -10 % 5 MHz to 5.6 MHz

Display

WAVE Display:

Waveform display

VECTOR Display:

Vectorscope display

PICTURE Display:

Picture display

Waveform Display Section

Vertical Axis

Sensitivity:

V Scale (PAL)

-0.3 V to 0.7 V

IRE Scale (NTSC) -40 IRE to 100 IRE

Gain:

Select x1 or x5

Variable Gain:

≤ 0.2 to ≥ 2

Amplitude Accuracy:

±1 %

Frequency Characteristics

Composite Signal:

±2 %

25 Hz to 5 MHz

+3 % to -7 % 5 MHz to 5.6 MHz

Step Response (for 1 V full scale, flat, 2T pulse, and 2T bar)

Overshoot:

±2 %

Preshoot:

±1 %

Ringing:

±2 %

Pulse/Bar Ratio:

±1 %

Vertical Tilt:

±1 %

Filter:

Luminance filter

DC Restorer

Clamp to the back porch (fixed)

Horizontal Axis

Operation Mode:

Overlay Displays only a single
waveform

Display Format

Line Display:

1H or 2H

Line Magnification: Select

x1, x10 or x20

Field Display:

1V or 2V

Field Magnification: Select

x1, x20 or x40

Time Base Accuracy:

±1 %

Vectorscope Display Section

Sensitivity:

Select 75 % or 100 % Using a color
bar

Gain:

Select x1, x5, or IQ-MAG

Variable Gain:

0.2 to 2

Phase Accuracy:

±2˚

Amplitude Accuracy:

±3 %

Phase Adjustment
Range:

360˚

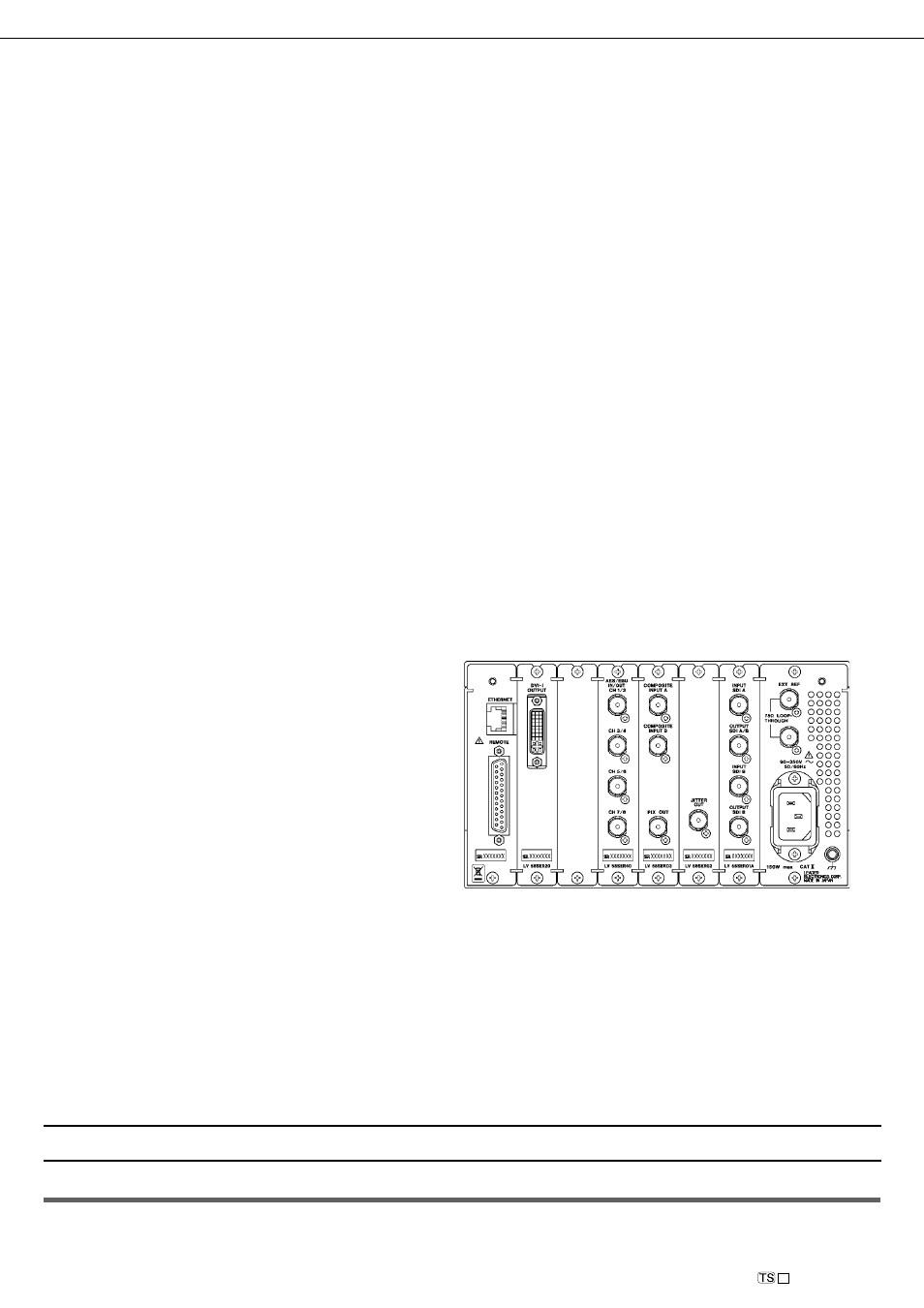

Specifications

LV 58SER03

Setup (NTSC):

Select 0 % or 7.5 %

NTSC Display (PAL):

Select NTSC or PAL display

IQ Axis:

Select show or hide

SCH:

Displays the SCH value numerically

Status Display Section

Display:

Displays the phase difference between
the composite signal and external sync
signal numerically and graphically.
Holds and displays eight phase differ-
ence values being measured.

Display Range

V direction:

±1/2 frame

H direction:

±1/2 Line

Synchronization Signal: NTSC/PAL black burst signals

General Specifications

Environmental Conditions: Conforms to the LV 5800
Power Consumption:

Supplied from the LV 5800 9 Wmax.

Weight:

0.25 kg

Accessories:

Instruction Manual .......................... 1

Picture Display (Conforms to the LV 5800)
Line Selector (Conforms to the LV 5800)
Cursor Measurement (Conforms to the LV 5800)

Amplitude Measurement: Measure in terms of [IRE] or [V]

Screen Capture (Conforms to the LV 5800)
General Specifications (Conforms to the LV 5800)
