AEG EXTRACTORHOOD 125 D - Manual (Page 9)

9

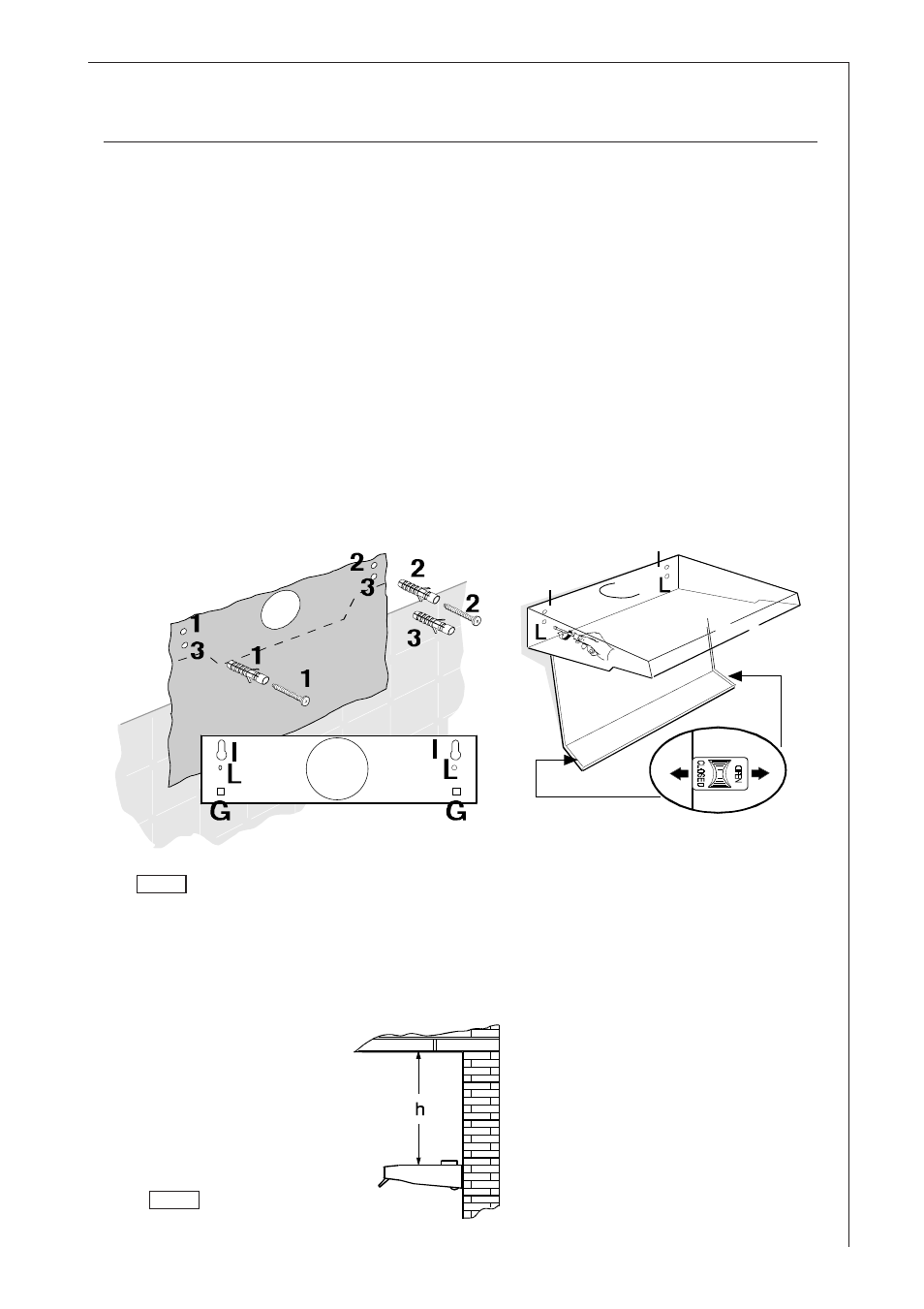

Wall mounting
● Fix the drilling template to the wall.
● Make 3 Ø 8mm holes in the wall 2 at points I, 1 as desired at
points L.
● Insert the three Ø 8mm expansion plugs into the wall.
● Insert 2 5x45 screws at points I but do not tighten them
completely.
● Adjust the unit so that it is positioned at a right angle to the wall
by turning the two support screws G.
● Fit the hood into holes I, tighten the 2 screws.
●
From inside the hood, insert the third 5x45 screw into hole L. —
Fig. 4.
● Measure the height between the upper side of the body of the
cooker hood and the ceiling (fig. 5).
5
4
