Introduction
Extraction mode
●
The hood is supplied as an extractor unit and can also be used as a
filtered function (recirculation) by fitting activated carbon filters
(available as an accessory).
●

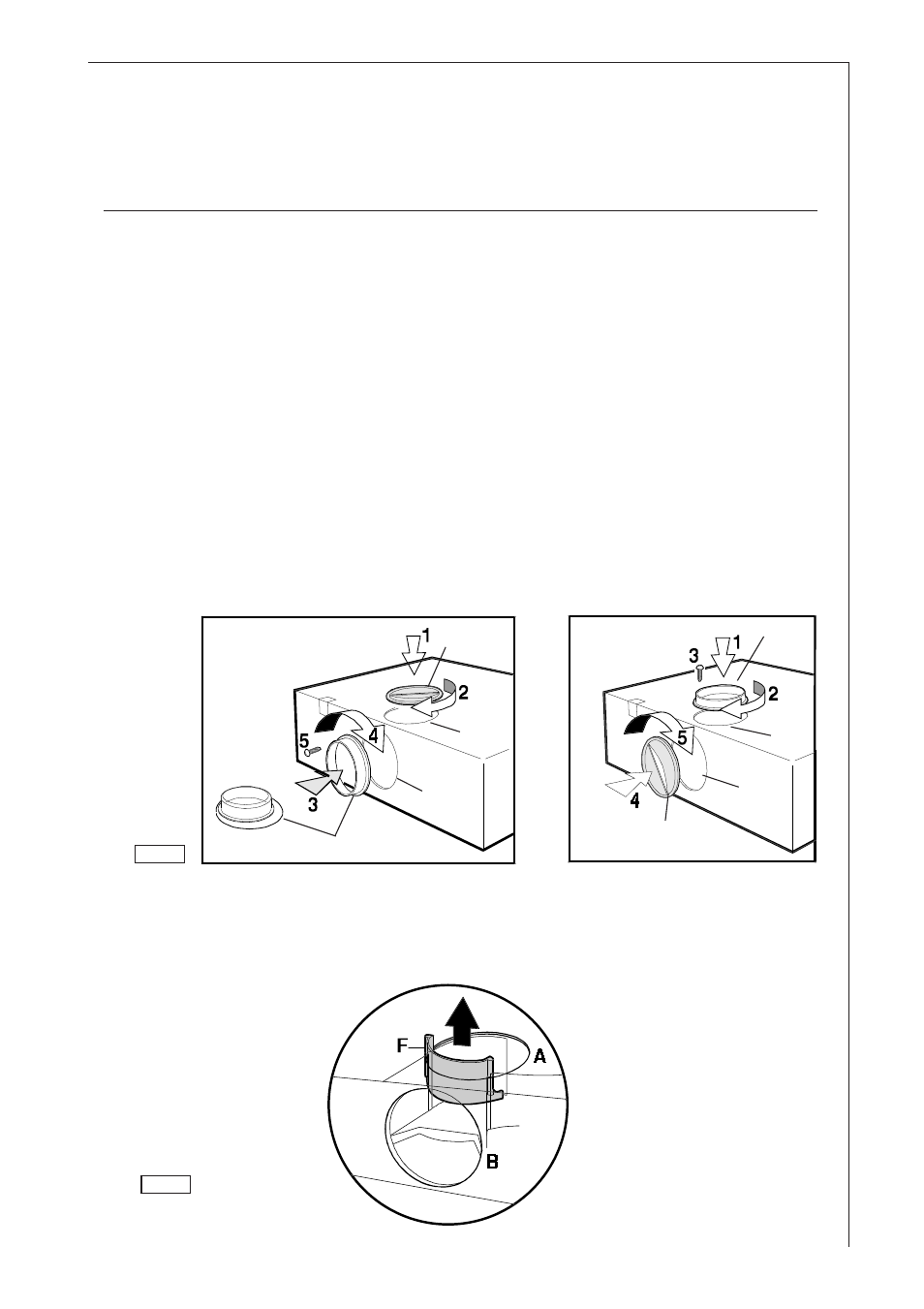

The unit features two outlet holes, one of which A is located on the
top of the unit while the other B is located on the rear.
●
To connect up the hose, you should first fit the bayonet-mounting
flange C (Ø 100-120 mm) on the outlet required (if using the top
outlet, fix the flange in place using the screw supplied as shown in
Fig. 1).
Close off the unused hole using the bayonet fitting caps D.
●
Important! To use the back hole B, remove switch F from the
top hole. Fig 2.
1
C
A
B
D
D
A
B
C
