36

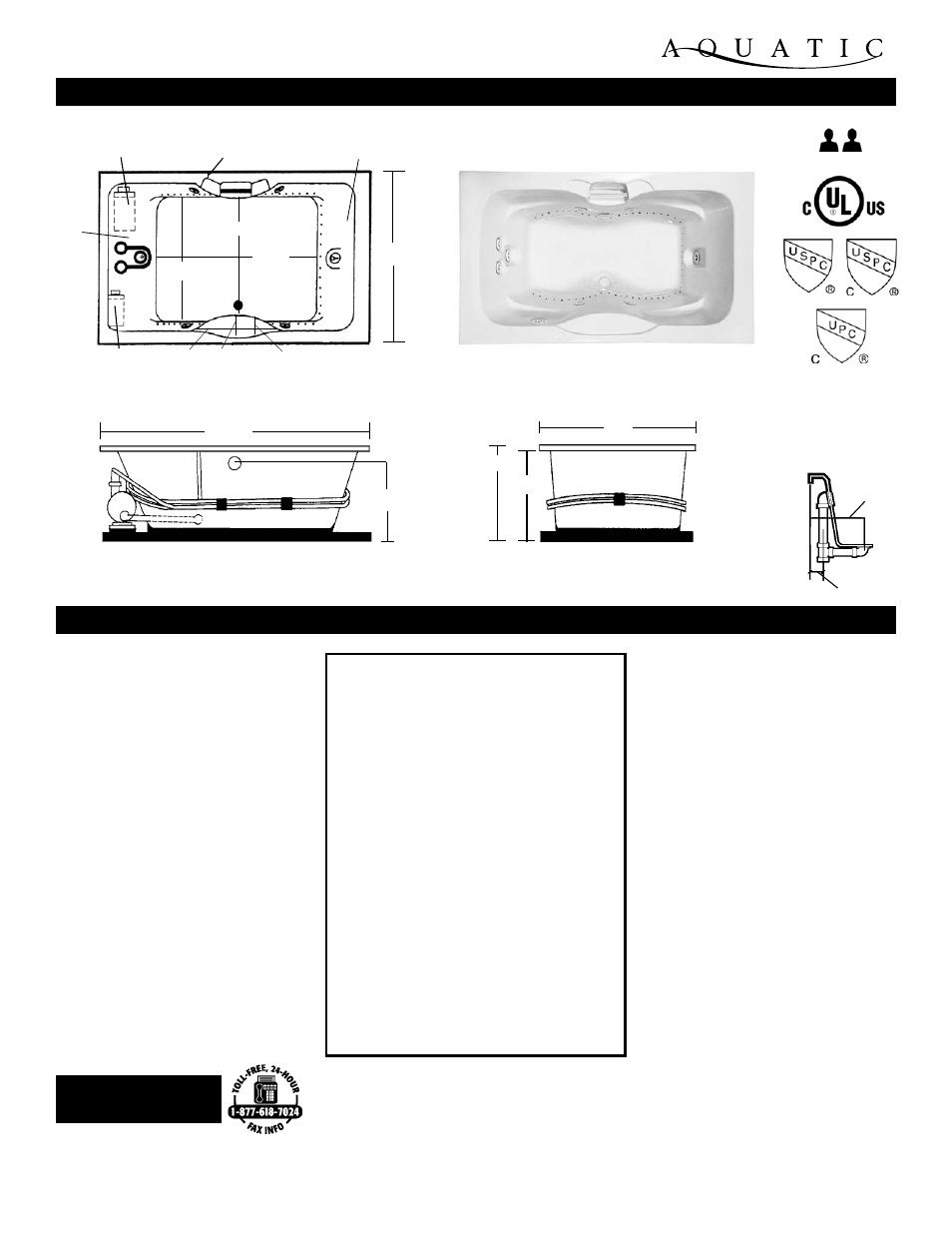

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.

www.aquaticwhirlpools.com 800.555.5324

March 2008

Rough-In Plumbing
Measurements

luxEAIr SErIES

Model

# ai26lux7242

luxEAIr 26

GeneRal SPecIfIcatIonS:

Tub Size

71 1/2” x 42” x 23 3/4”

182 cm x 107 cm x 60 cm

Bathing Well

40 1/2” long

20 1/2” wide

21 1/2” interior depth

Shipping Weight

265 lbs. / 120 kg

Tub Weight Filled

929 lbs. / 421 kg

Weight w/Equipment

182 lbs. / 83 kg

Gallons to Overflow

90 gal. / 341 L

Gallons to Operate

1 bather: 71 gal. / 269 L

2 bathers: 52 gal. / 197 L

electRIcal SPecIfIcatIonS:

Pump

1.75 HP; 12 AMP; 110V

Inline Heater

1.5 kW; 12.5 AMP; 110V

Requirement

1-15 AMP 2 pole, separate circuit

required protected with Class A GFCI

Blower

1 HP; 10.5 AMP; 110V

Requirement

1-15 AMP 1 pole, separate circuit

required protected with Class A GFCI

This whirlpool will need to be hard wired to the breaker box.

Three outlets will be supplied on the whirlpool.

oPtIonal equIPMent:

Chromatherapy LED Lighting

Comfort Pillow - Oval or Rectangle

Jet Finish

- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel

Grab Bar

- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze

Lift & Turn Waste and Overflow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze

Cable Drive Waste and Overflow

- Chrome, Polished Brass, Gold, Polished
Nickel, Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)

Hand Held Jet - Chrome or Polished Brass

Factory Installed Rigid ABS Tile Flange

Color Matched Acrylic Skirt

Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading fixture manufacturers.

Two Person Bath

71 1/2”

19 1/4”

42”

22”

23 3/4”

42”

Pump

Blower

Deck Width

1 1/2”

23”

40 1/2”

20 1/2”

no alternate pump/blower locations available.

fax-on-Demand

Document # 1210

StanDaRD equIPMent:

8 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
- 2 Recessed Rotary Massage Jets

air Bath System:
- 55 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- Electronic Control Panel
- 3 Massage Settings: Constant, Wave and Pulse
- Automatic Purge and Dry Cycle
- 600 Watt Air Heating System
aquatic quality features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- 1.5 kW Inline Maintenance Heater
- “Quiet Pad”

Anti-Vibration Pump Mount for Quiet Pump Operation

- Color Matched Grab Bar
- 4 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors

ul & IaPMo listed, factory tested

limited lifetime Warranty

6 1/2”

13 1/2”

23”

4 3/4”

4”

Back Angle

28º

Back Angle

28º
