BACK-UP MEMORY
MAIN Card Updated On
05-15-01 03:50am
Press the key to Backup.
Press the key to exit the backup
process ( fig e.).
NOTE: You must have an extra memory card (sold separately)
installed in the RS 485 Slot ( fig a.) of the Processor in order
to perform the backup process.
NOTE: Back-up Memory card must be
the same size or greater than the Main
Memory card being backed up.
The screens will display when the cards
were last updated. ( fig c.) and (fig d.)
Use the keys to scroll
through the information.
SELECT PROG MODE:
(V)Volume (B)Backup
( fig b.)
( fig c.)
BACKUP Card Updated
02-11-01 04:20am
( fig d.)
(ENTER) To Backup
(EXIT) To Quit
( fig e.)

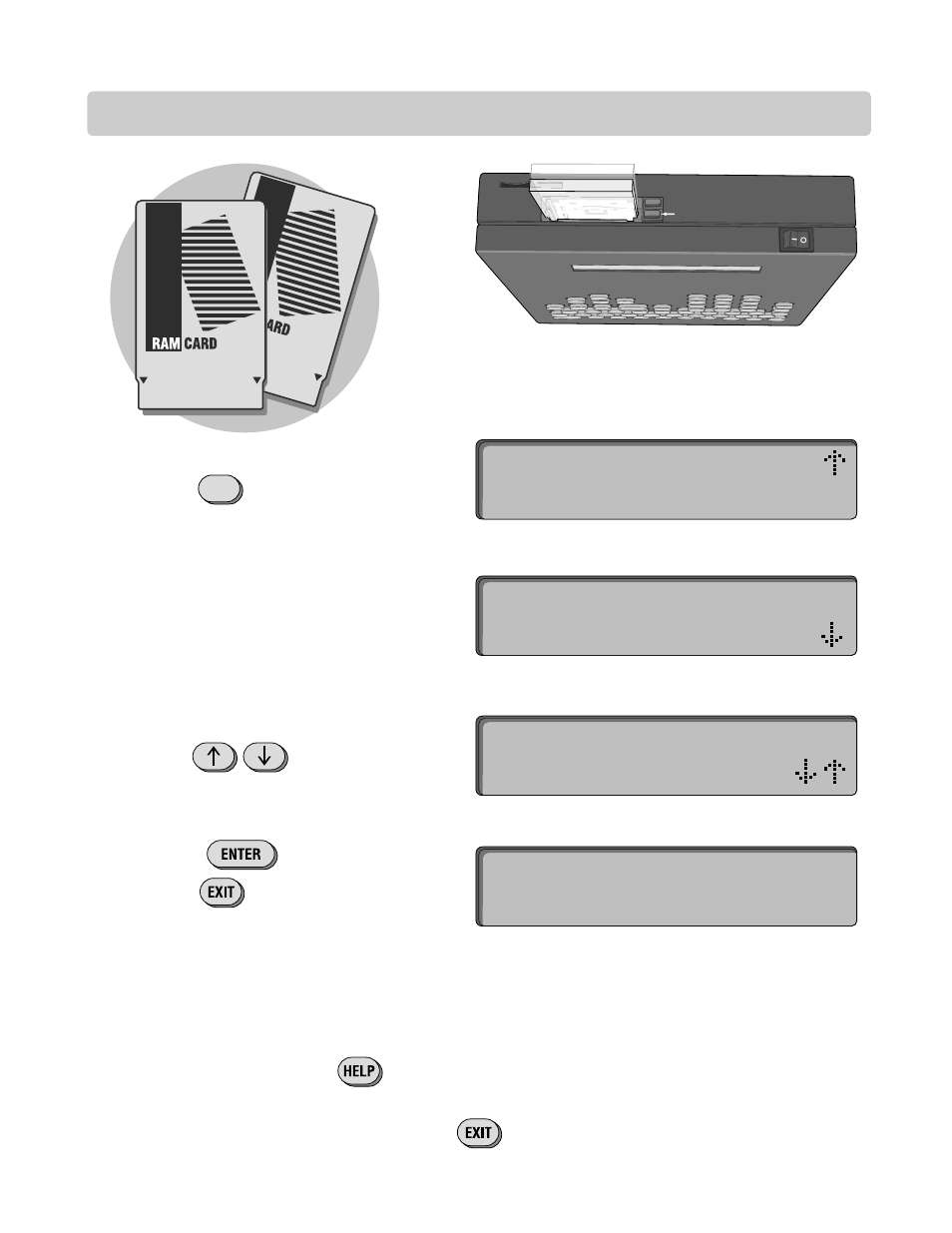

In the Program Selection Screen ( fig b.),
Press the key.
Insert additional memory card in the
Backup Slot.
B
( fig a.)
Pressing the button will provide users with a help message.
IMPORTANT NOTE: While in the help screens, programming will be disabled.
To continue programming, press the button to exit the help screens first.
Back-Up Memory Card Release Button
Main Memory Card Slot
RS485 Memory Card Slot
