DoorKing 1803 Entry System - Manual (Page 17)

1.7 Flush Mount Surface Mounting Kit (use with 1803 and 1810 units only)
Flush mount units can be surface mounted by using the optional 1814-152 surface mount trim ring.
Flush mount units are not designed for direct exposure to the weather. Be sure that the unit is
securely mounted and is not subject to vibration from closing doors or gates.
WARNING! If this entry system is used to control a vehicular gate with an
automatic gate operator, the entry system must be mounted a minimum of
ten (10) feet away from the gate and gate operator, or in such a way that a
person cannot operate the entry system and touch the gate or gate operator
at the same time.
2.625
13
.5
1.125 DIA 1.125 SQ
.3
75
.8
75
1
.125
9.0
7.5
6.0
3.0
.375
1.0
12.0
DOORKING, INC., INGLEWOOD, CA 90301
Date: Dwg. No.

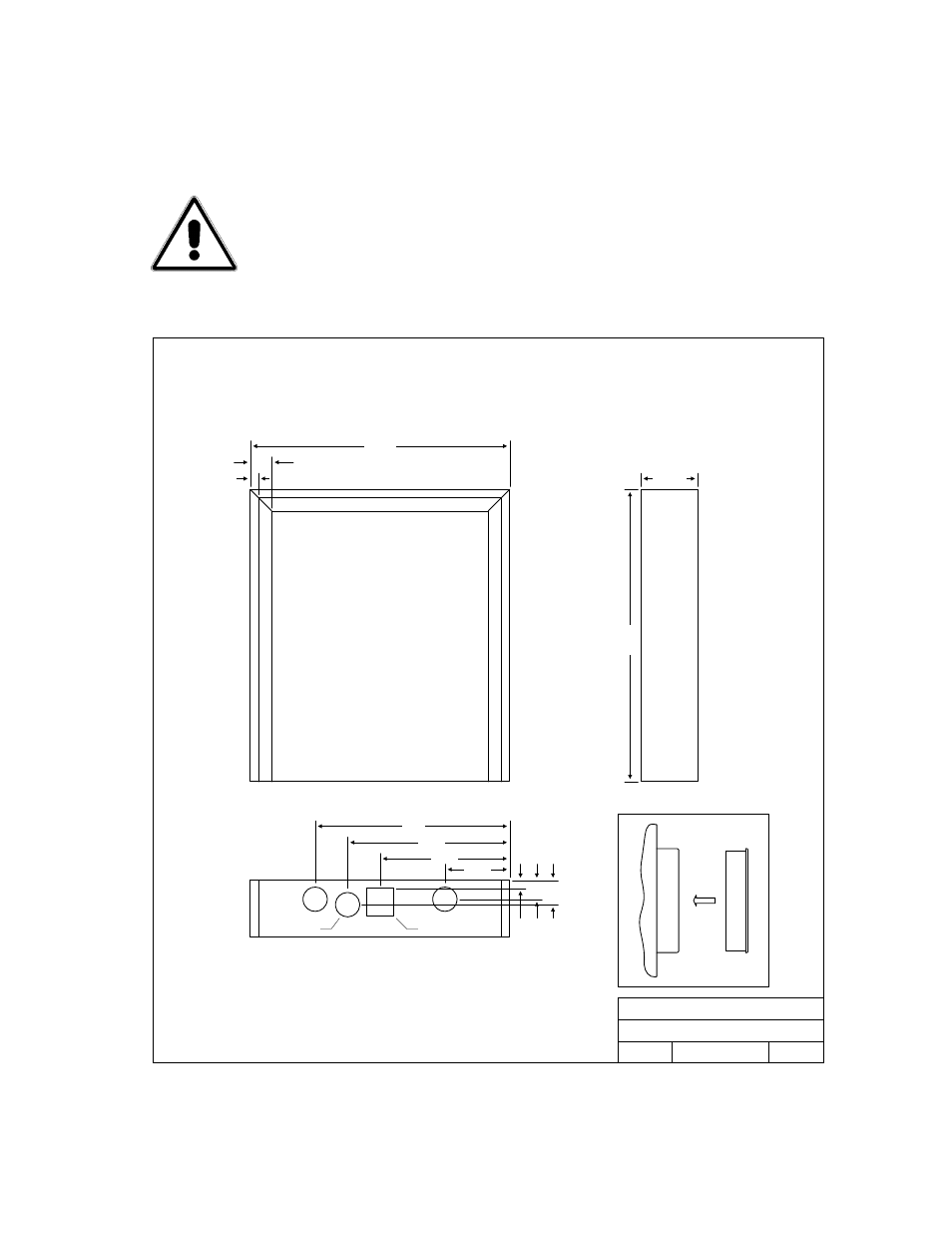

Surface Mount Kit for Flush Style Units
Rev.
Title:
3/03 A M1800-065-6
Surface Mount Kit for Flush Style Units
F
lush U
n
it
F
lus
h
M
o
un
t R
ing
1800-060-R-8-11 Page 17
