1.2

Surface Mount 1803 and 1810 Units

Surface mount units can be mounted directly to a wall or pilaster, or can be post mounted using a
DoorKing Architectural Style heavy-duty mounting post (p/n 1200-037 and 1200-038). Be sure the
unit is mounted securely and is not subject to vibration from closing doors or gates.

WARNING! If this entry system is used to control a vehicular gate with an
automatic gate operator, the entry system must be mounted a minimum of
ten (10) feet away from the gate and gate operator, or in such a way that a
person cannot operate the entry system and touch the gate or gate operator
at the same time.

DOORKING, INC., INGLEWOOD, CA 90301

Date:

Dwg. No.

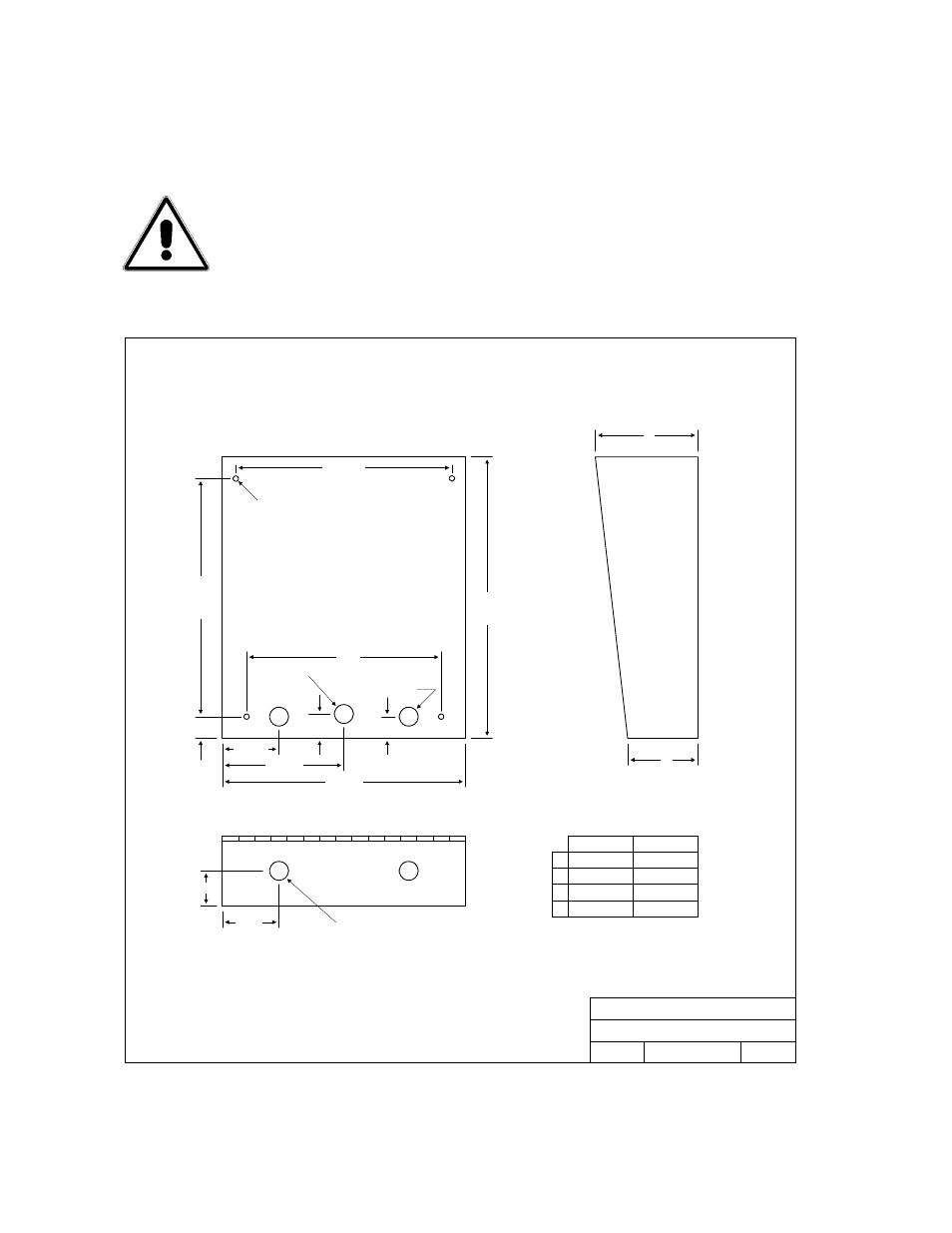

Surface Mount Case and Mounting Hole
Dimensions

Rev.

Title:

10/05

B

M1800-065-1

2.625

1.625

.875 DIA

10.125

.25 DIA

13

.0

10.87

5

11.25

5.625

2.625

1.125

.875 DIA

C

A

Standard Surface Mount Housing Case and Mounting
Hole Dimensions

D

1

B

1803

1810

A

B

C

D

4.5

3.0

1.0

Not Present

4.75

3.25

.875

Present

9.0

Page 12

1800-060-R-8-11
