STEP 6B MGR-2 channel two code setting

The pushbutton labeled S2 is used to program transmitters to channel two.

STEP 7

Program the receiver

Momentarily press the receiver’s program button. The red programming LED will light
if there’s room in the receiver’s memory for another transmitter (40 maximum per
receiver). The LED stays on for about 5 seconds.

A transmitter must be entered

while the LED is on. Press the desired transmitter button. The LED will ﬂicker
indicating that the receiver has accepted the transmitter

➥

NOTE: be sure to press the receiver program button for less than 2 seconds.

➥

WARNING! Operator will not activate when the receiver is being
programmed from the transmitter, but will activate the next time the
transmitter is activated after programming.

➥

NOTE: The programming LED also monitors radio signals entering the
receiver. It is common to see an occasional blink from the LED. The LED
will also light when any transmitter tuned to the receiver’s frequency
(programmed into the receiver or not) is activated.

STEP 8 Add additional transmitters

Repeat Step 7 for each transmitter used with this receiver. Be sure to press the
receiver’s program button

each time a new transmitter or a different transmitter

button on a multi-button transmitter is pressed. If the LED doesn’t come on when
the receiver’s program button is pressed, the receiver’s memory is full (40 transmitters
total). Use the erase function (Info 1) to remove transmitters from the receiver’s
memory.

STEP 9

Review memory

Press and hold the receiver’s program button until the LED begins to ﬂash (about 3
seconds) and then release the button. Count the number of ﬂashes. The number of
ﬂashes equals the number of transmitters programmed into the receiver

➥

NOTE: Don’t hold down the programming button longer than 5 seconds
or the receiver’s memory for that channel will be erased (Info 1).

STEP 10 Test receiver

Be sure gate area is clear. Activate each transmitter. The receiver relay should click
and the operator should activate.

Wait 1 second between each activation.

INFO 1

Erasing receiver memory

Transmitters may be erased from the receiver’s memory by pressing and holding the
receiver’s program button until the LED blinks (count of transmitters) and then blinks
one more time (Channel 1) or two more times (Channel 2) as the receiver’s memory
is erased.

All transmitters are erased at the same time. Then release the program

button.

LIMITED WARRANTY

This Linear product is warranted against defects in material and
workmanship for twelve (12) months. The Warranty Expiration Date is
labeled on the product.

This warranty extends only to wholesale customers

who buy direct from Linear or through Linear’s normal distribution
channels.

Linear does not warrant this product to consumers. Consumers

should inquire from their selling dealer as to the nature of the dealer’s
warranty, if any.

There are no obligations or liabilities on the part of Linear

LLC for consequential damages arising out of or in connection with use or
performance of this product or other indirect damages with respect to loss of
property, revenue, or proﬁt, or cost of removal, installation, or reinstallation. All
implied warranties, including implied warranties for merchantability and
implied warranties for ﬁtness, are valid only until Warranty Expiration
Date as labeled on the product.

This Linear LLC Warranty is in lieu of all

other warranties express or implied.

All products returned for warranty service require a Return Product
Authorization Number (RPA#). Contact Linear Technical Services at
1-800-421-1587 for an RPA# and other important details

IMPORTANT!!!

Linear radio controls provide a reliable communications link and ﬁll
an important need in portable wireless signaling. However, there are
some limitations which must be observed.

✶

For U.S. installations only: The radios are required to comply with FCC Rules
and Regulations as Part 15 devices. As such, they have limited transmitter
power and therefore limited range.

✶

A receiver cannot respond to more than one transmitted signal at a time
and may be blocked by radio signals that occur on or near their operating
frequencies, regardless of code settings.

✶

Changes or modiﬁcations to the device may void FCC compliance.

✶

Infrequently used radio links should be tested regularly to protect against
undetected interference or fault.

✶

A general knowledge of radio and its vagaries should be gained prior to acting
as a wholesale distributor or dealer, and these facts should be communicated
to the ultimate users.

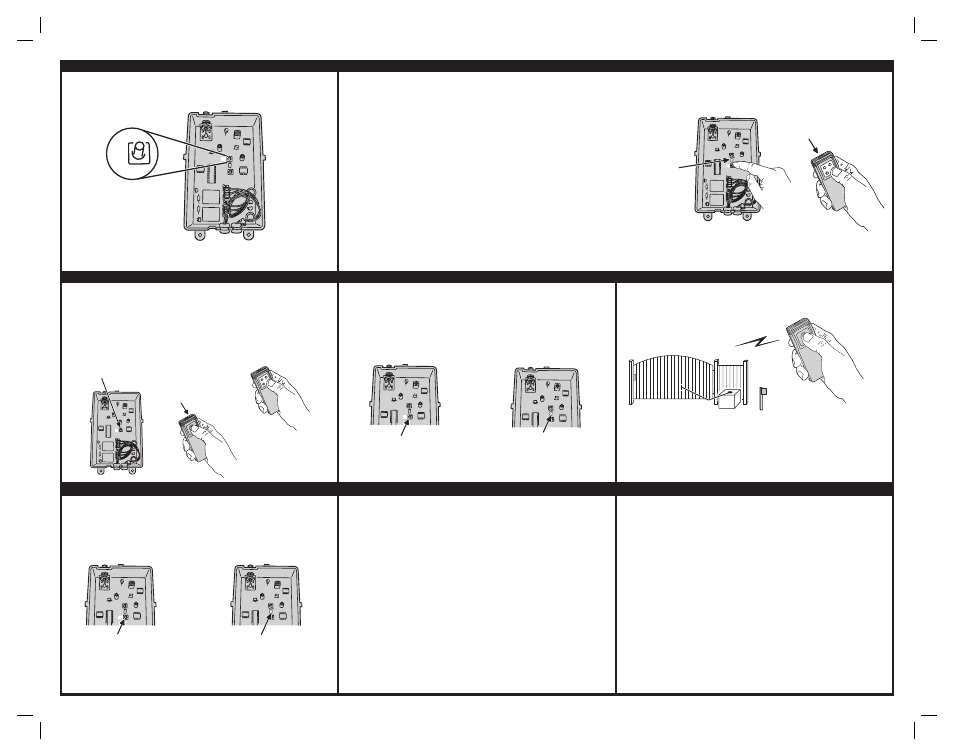

CHANNEL TWO

PUSHBUTTON

USE THIS
PUSHBUTTON

TO ENTER
TRANSMITTERS

INTO CHANNEL
TWO

WHEN RECEIVER
IS READY, PRESS THE

DESIRED TRANSMITTER
BUTTON

RECEIVER LED
WILL FLICKER

AS TRANSMITTER
IS ENTERED INTO

MEMORY

MOMENTARILY PRESS

THE PUSHBUTTON
FOR THE DESIRED

CHANNEL (S1 or S2)

THE LED WILL

LIGHT AND REMAIN
ON ABOUT FIVE

SECONDS

PRESS TRANSMITTER
BUTTON TO TEST

WARNING!
BE SURE GATE
AREA IS CLEAR
OF OBSTRUCTIONS

NOTE: If the receivers LED flashes continuously when a transmitter isn't being
activated, the receiver is too close to an electrical noise source. Move the
receiver away from the noise source or call technical services for assistance.
(The receiver must be open to observe this.)

THEN PRESS

TRANSMITTER

BUTTON

WITH MULTI-BUTTON

TRANSMITTERS,

PRESS THE DESIRED

BUTTON

PRESS

PROGRAM

BUTTON FIRST

LED WILL FLASH, COUNTING THE
TOTAL NUMBER OF TRANSMITTERS

PROGRAMMED

PRESS PROGRAM BUTTON

FOR THREE SECONDS
THEN RELEASE

LED WILL FLASH, COUNTING THE

TOTAL NUMBER OF TRANSMITTERS
PROGRAMMED. THEN IT WILL

BLINK ONCE (CHANNEL ONE) OR
TWICE (CHANNEL TWO) AS THE

TRANSMITTERS ARE ERASED

PRESS PROGRAM BUTTON

FOR FIVE SECONDS OR
MORE
