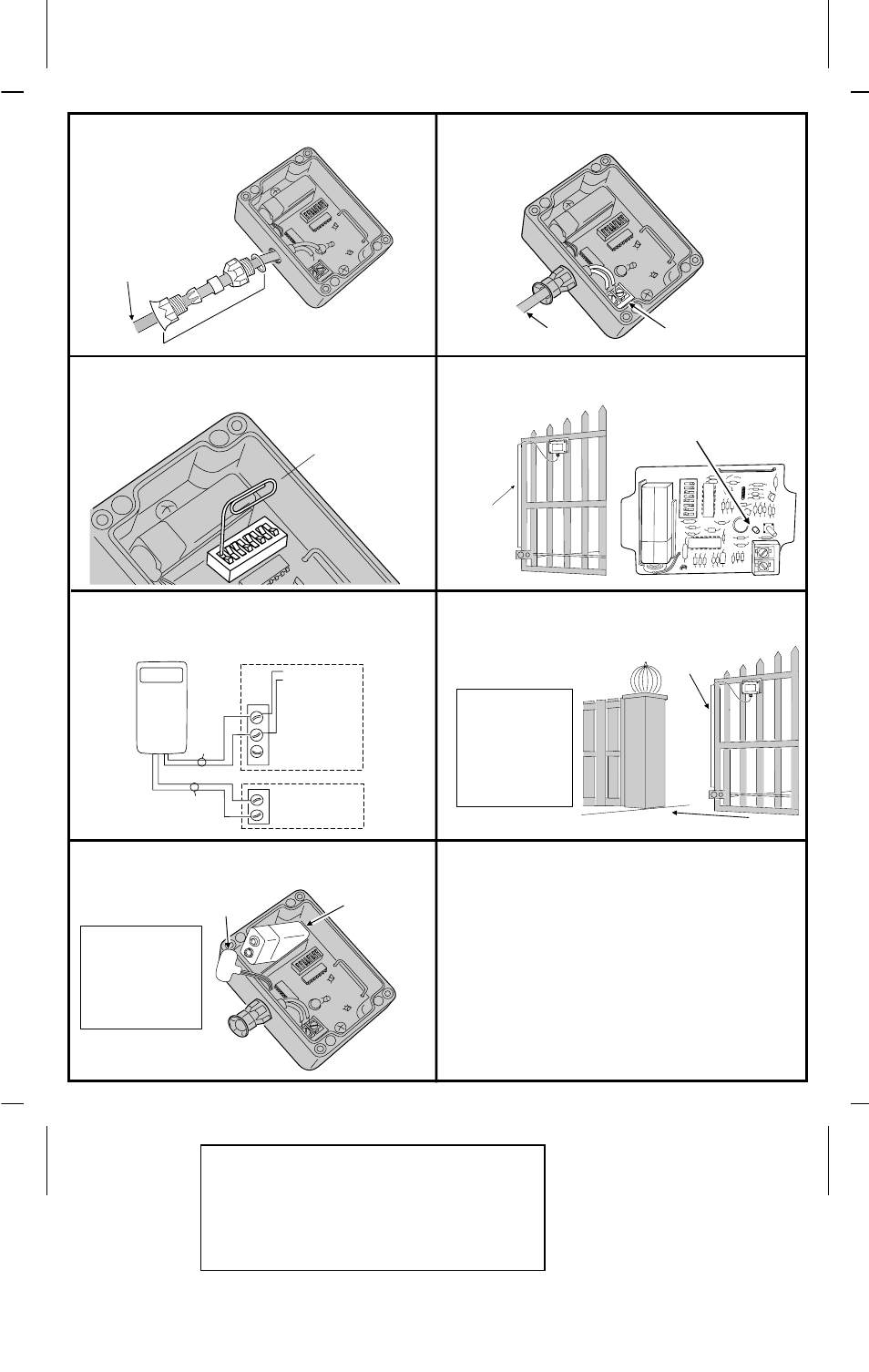

STEP 5

Assemble Cable Grip. Unscrew the cable grip about 3/4 of the way

and thread the safety edge cable through the cable entry on the transmitter.

STEP 6

Attach Cable. Attach safety edge cable to terminals as shown.

Tighten cable grip assembly using pliers to assure a water tight seal.

STEP 7

DTG Code Setting. To set a code, select any valid combination of

ON and OFF positions for the switch keys numbered 1 - 8. Refer to receiver
installation instructions to code receiver switches.

STEP 8

Test Safety Edge. Test safety edge connection by pressing the

safety edge. The test indicator light should come on.

STEP 9

Wire Receiver. Wire receiver obstacle output to obstacle input on

operator. Refer to operator and receiver wiring instructions.

STEP 10

Test System. Activate the gate to close. As the gate is closing, press

the safety edge with your hand. Gate should stop and reverse.

CAUTION! DO not stand in the path of the closing gate.

STEP 11

Replacing Batteries. If LED indicator fails to light when test button

is pushed, replace with a 9 volt alkaline or lithium battery.
