Controlled Products Systems Group AM-RRR - Manual (Page 2)

Copyright © 2012 Linear LLC 212045 C

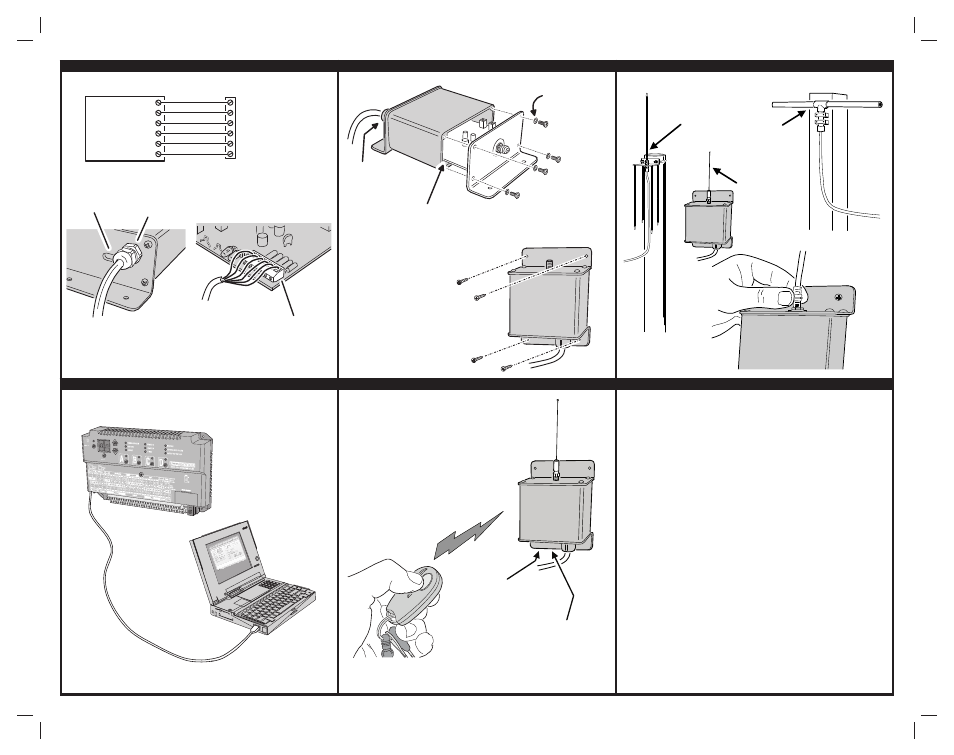

5. CONNECT AM-RRR TO CONTROLLER 6. CLOSE CASE AND MOUNT UNIT 7. INSTALL ANTENNA
INDICATOR
VIEWING
WINDOW
CONNECT WIRES TO
AM-RRR TERMINALS
ROUTE WIRE THROUGH
STRAIN RELIEF BEFORE
WIRING TO TERMINALS
(TIGHTEN LATER)
WIRING
STRAIN
RELIEF
AM-RRR
TERMINALS
PCLK
DVAL
DAT0
DAT1
GND
PWR
GND
DAT1
DAT0
DVAL
PCLK
PWR
ACCESS CONTROL
SYSTEM PBUS
TERMINALS
SLIDE BOARD INTO
3RD SLOT UP
SECURE CASE
WITH FOUR
SCREWS AND
WASHERS
ATTACH CASE TO
MOUNTING SURFACE
USE SCREW ANCHORS
OR APPROPRIATE HARDWARE
FOR MOUNTING
TIGHTEN
AFTER
INSTALLATION
OMNI-DIRECTIONAL
EXA-1000 ANTENNA
MOUNTED ON POLE
LOCAL WHIP
ANTENNA
(SUPPLIED)
CONNECTED
DIRECTLY TO
RECEIVER
DIRECTIONAL
EXA-2000 ANTENNA
MOUNTED ON POST
CHOOSE AN ANTENNA TO FIT THE INSTALLATION REQUIREMENTS
FOLLOW EXA ANTENNA
INSTRUCTIONS WHEN
CONSTRUCTING ANTENNA
SCREW CONNECTOR
ONTO RECEIVER
8. PROGRAM SYSTEM 9. TEST SYSTEM LINEAR LIMITED WARRANTY
This Linear product is warranted against defects in material and workmanship for
twelve (12) months. This warranty extends only to wholesale customers who
buy direct from Linear or through Linear’s normal distribution channels. Linear
does not warrant this product to consumers. Consumers should inquire from
their selling dealer as to the nature of the dealer’s warranty, if any. There are
no obligations or liabilities on the part of Linear LLC for consequential
damages arising out of or in connection with use or performance of
this product or other indirect damages with respect to loss of property,
revenue, or profi t, or cost of removal, installation, or reinstallation.
All implied warranties, including implied warranties for merchantability and
implied warranties for fi tness, are valid only until the warranty expires. This
Linear LLC Warranty is in lieu of all other warranties express or implied.
All products returned for warranty service require a Return Product Authorization
Number (RPA#). Contact Linear Technical Services at 1-800-421-1587 for an
RPA# and other important details
IMPORTANT !!!
Linear radio controls provide a reliable communications link and fi ll an important
need in portable wireless signalling. However, there are some limitations which
must be observed.
* For U.S. installations only: The radios are required to comply with FCC Rules and Regulations
as Part 15 devices. As such, they have limited transmitter power and therefore limited range.
* A receiver cannot respond to more than one transmitted signal at a time and may be blocked by
radio signals that occur on or near their operating frequencies, regardless of code settings.
* Changes or modifi cations to the device may void FCC compliance.
* Infrequently used radio links should be tested regularly to protect against undetected
interference or fault.
* A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale
distributor or dealer, and these facts should be communicated to the ultimate users.
PROGRAM THE CONTROLLER
TO CONFIGURE THE PBUS
DEVICE
REFER TO THE CONTROLLER
PROGRAMMING INSTRUCTIONS
FOR DETAILS
TEST TRANSMITTERS FROM VARIOUS
LOCATIONS TO DETERMINE RADIO RANGE
RECEPTION PATTERN WILL VARY
DEPENDING ON ANTENNA USED
AND SUROUNDING STRUCTURES
ADJUST THE INTERNAL RADIO RANGE
KNOB TO LIMIT RADIO RECEPTION
IF REQUIRED
RADIO INDICATOR WILL
FLICKER AS SIGNAL IS
RECEIVED
STATUS INDICATOR WILL
LIGHT RED WHEN POWER
IS APPLIED AND GREEN WHEN
ACCESS IS GRANTED
